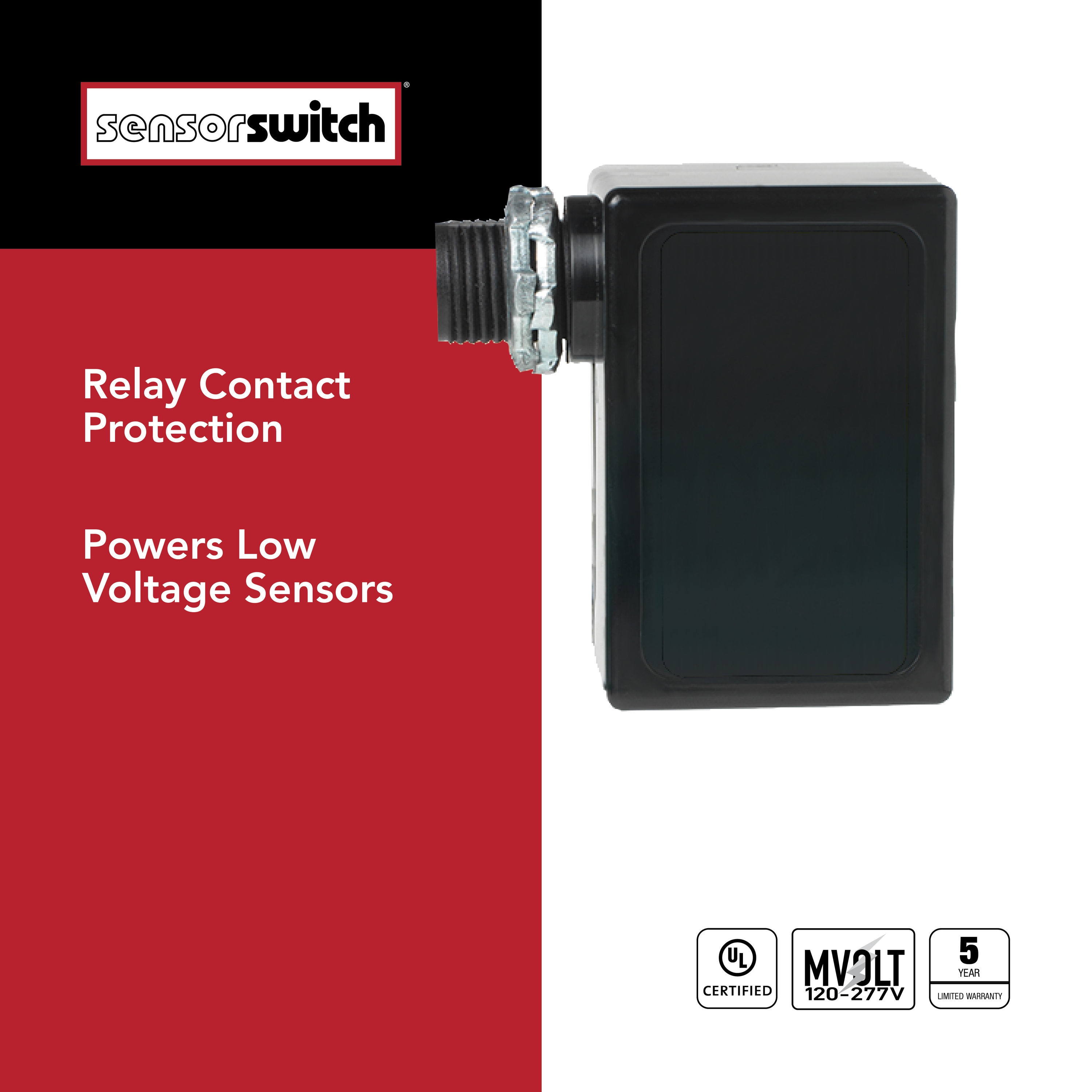

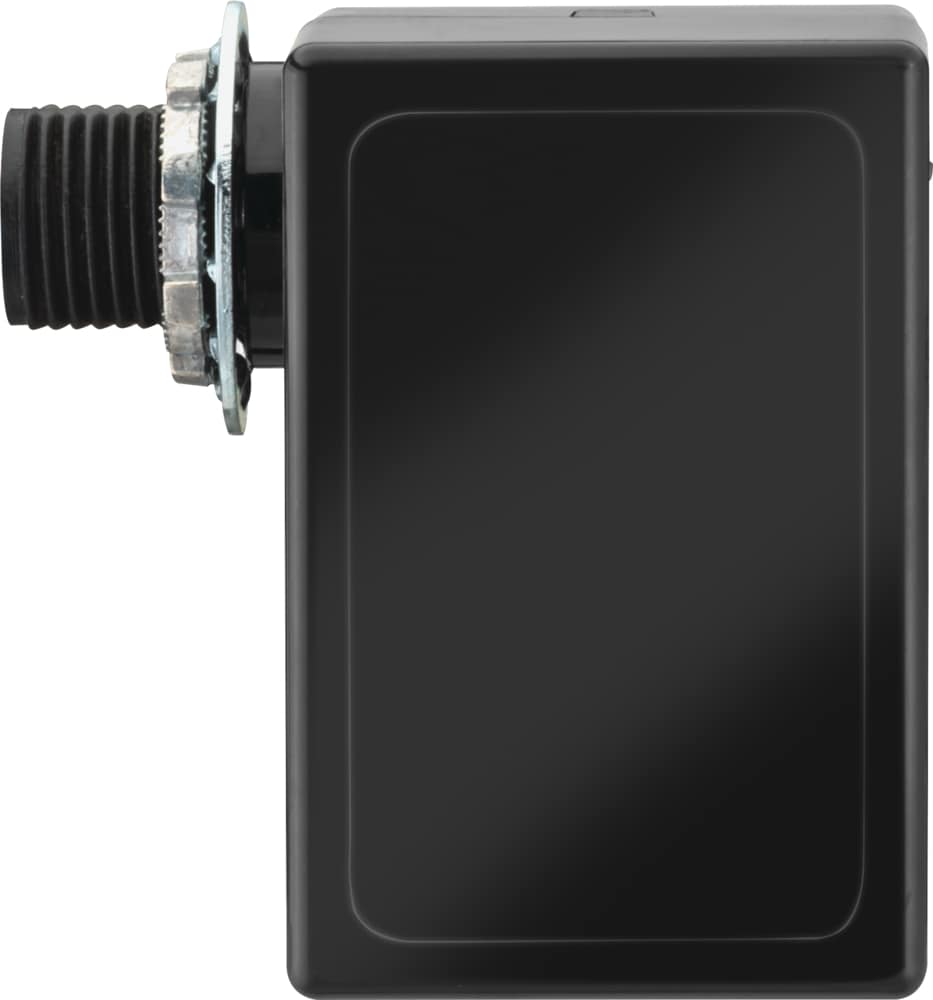

Power Packs are the heart of the low voltage sensor system. The PP20 transforms 120, 240 or 277 volts to Class II 15 VDC to power the remote sensors. Utilizing our patented relay circuit protection, the PP20 also switches the lighting load on and off. This method has been tested to over 400,000 cycles at rated load!
DESIGN: Switches line voltage loads; transforms 120, 240 or 277 volts into Class II 15 VDC to power the remote sensors
DESIGN: Utilizing our patented relay circuit protection, the PP20 also switches the lighting load on and off
MOUNTING: Can be mounted directly through a 1/2 inch knockout in a junction box or inside an adjacent box for specific local code requirements
RATINGS: Energy Management Equipment, UL916 (E167435), Plenum UL2043, RoHS compliant
VOLTAGE: Transforms Class I high voltage (120/277 VAC) to Class 2 15 VDC
POWER: Can power up to 14 sensors
RELAY: Utilizes a patented relay contact protection
RELAY: Self-contained relay(s) switch line voltage loads
WARRANTY: 5-Year Limited Warranty
