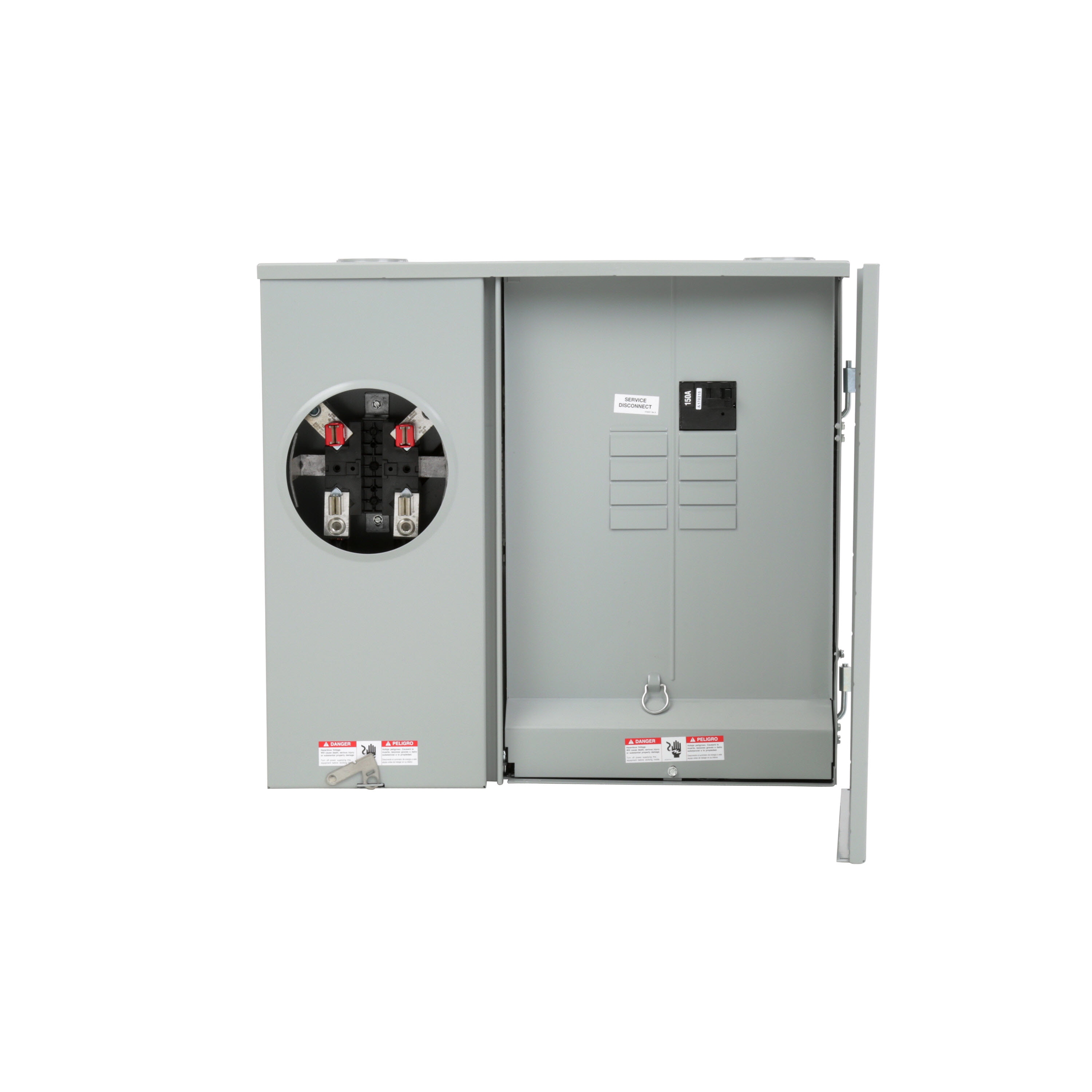

This Siemens meter load center combination features a 200-Amp rated meter socket combined with a 150-Amp main breaker service disconnect, available branch circuits, and feed thru lugs. The extra circuits allow for outdoor circuits to be wired directly from this panel, saving wire and installation time. The enclosure is full loadcenter width.
Side-by-Side construction; Surface Mount; Feed Thru Lugs included, Full Width
For Overhead or Underground Service applications
Check with local utility to confirm meter socket approval prior to ordering
RX-type Hub Opening on Top End Wall with Cover Plate Installed (hubs sold separately)
HC-type Hub Opening on Bottom End Wall (hubs sold separately)
Ringless Type Meter Cover; No Bypass
120/240V, 1-Phase, 3-Wire, 4-Jaw
UL Listed; 22,000 AIC rated
Outdoor steel enclosure (NEMA Type 3R)
