Siemens meter socket designs have been in the industry for more than 60 years. No one knows metering installations like Siemens. Our meter sockets set the standard for quality, design, and workmanship. This is why we use stainless steel hardware; polyester powder-coat paint for long-lasting protection and appearance; type G90 galvanized steel or 3003 grade aluminum enclosures and, in our commercial sockets, an all-plated copper current path. This is why Siemens meter sockets are seen in so many utility specifications.

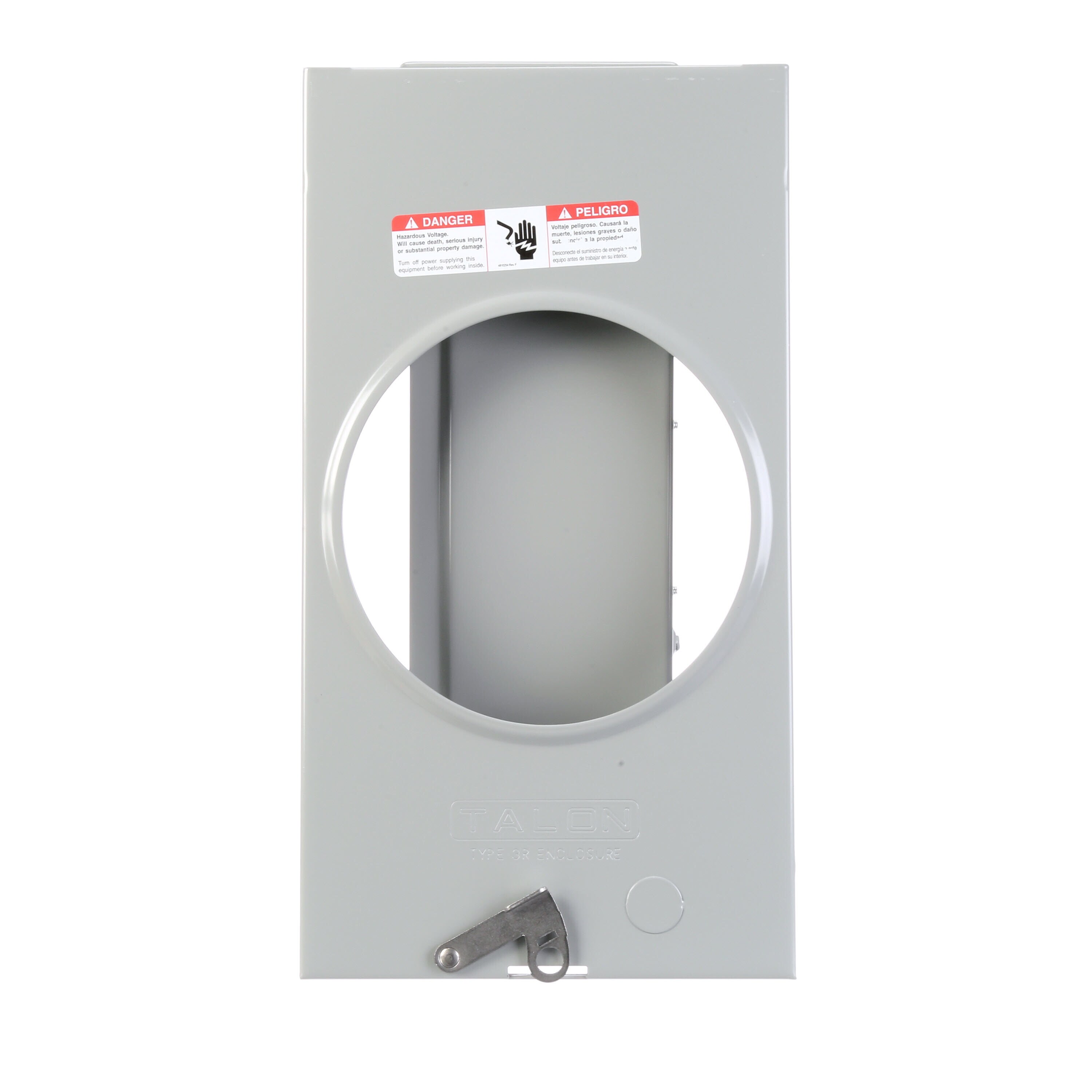

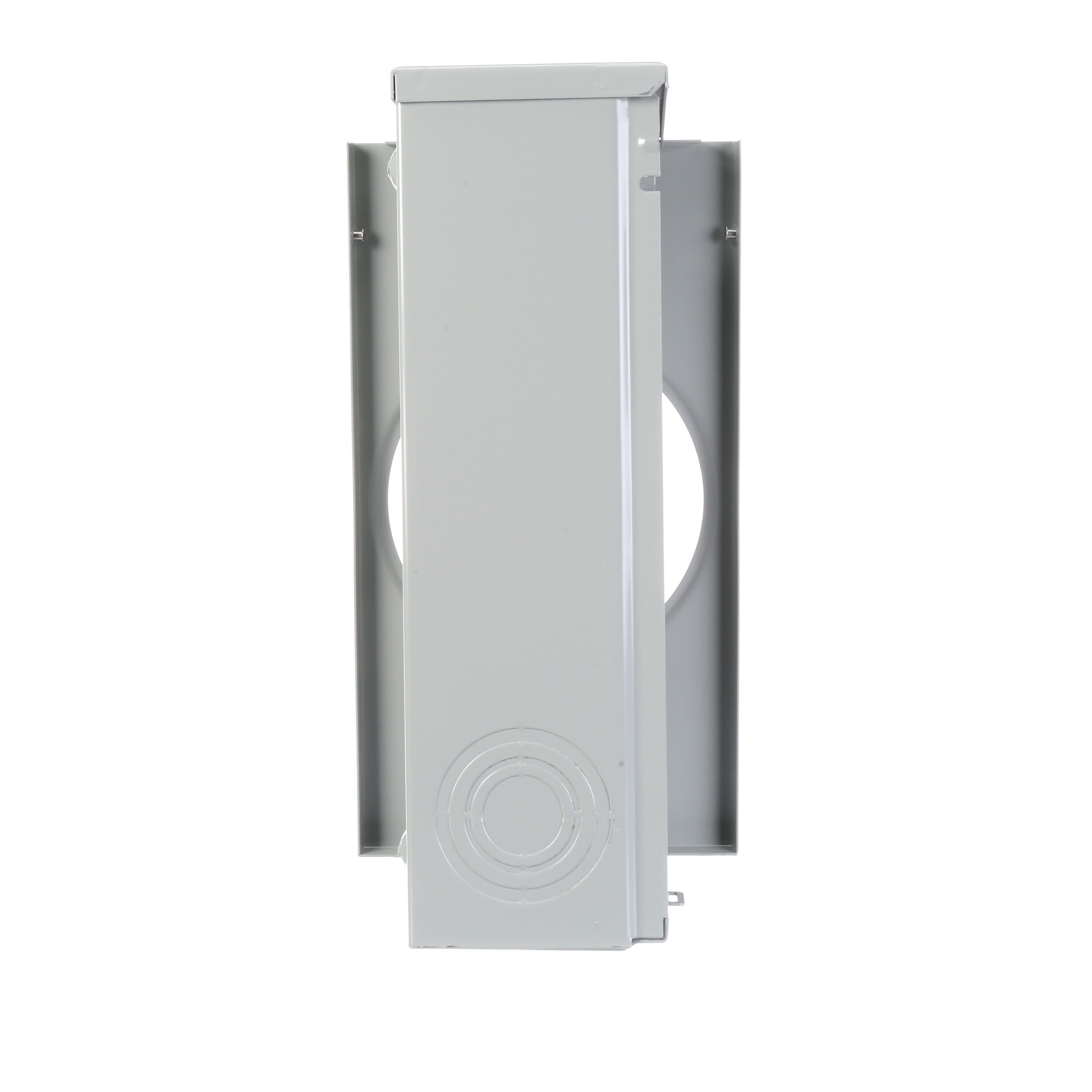

Ringless Type, 4-Jaw, Residential Meter Socket with Horn Bypass
Designed for Overhead applications
Check compatibility with your local electric utility provider prior to ordering
RX-type Hub Opening (hub sold separately), Optional 5th Jaw Kit: EC659-0121 (sold separately)
200A continuous, 250A maximum rated, 1-phase, 3-wire, 600V
Quad ground lugs provided: (2) #6-350 kcmil and (2) #2-14
Lay-in 350 kcmil max lugs
7/8 inch barrel lock provision for a utility security lock included (lock not included)
Outdoor steel enclosure (NEMA 3R)
