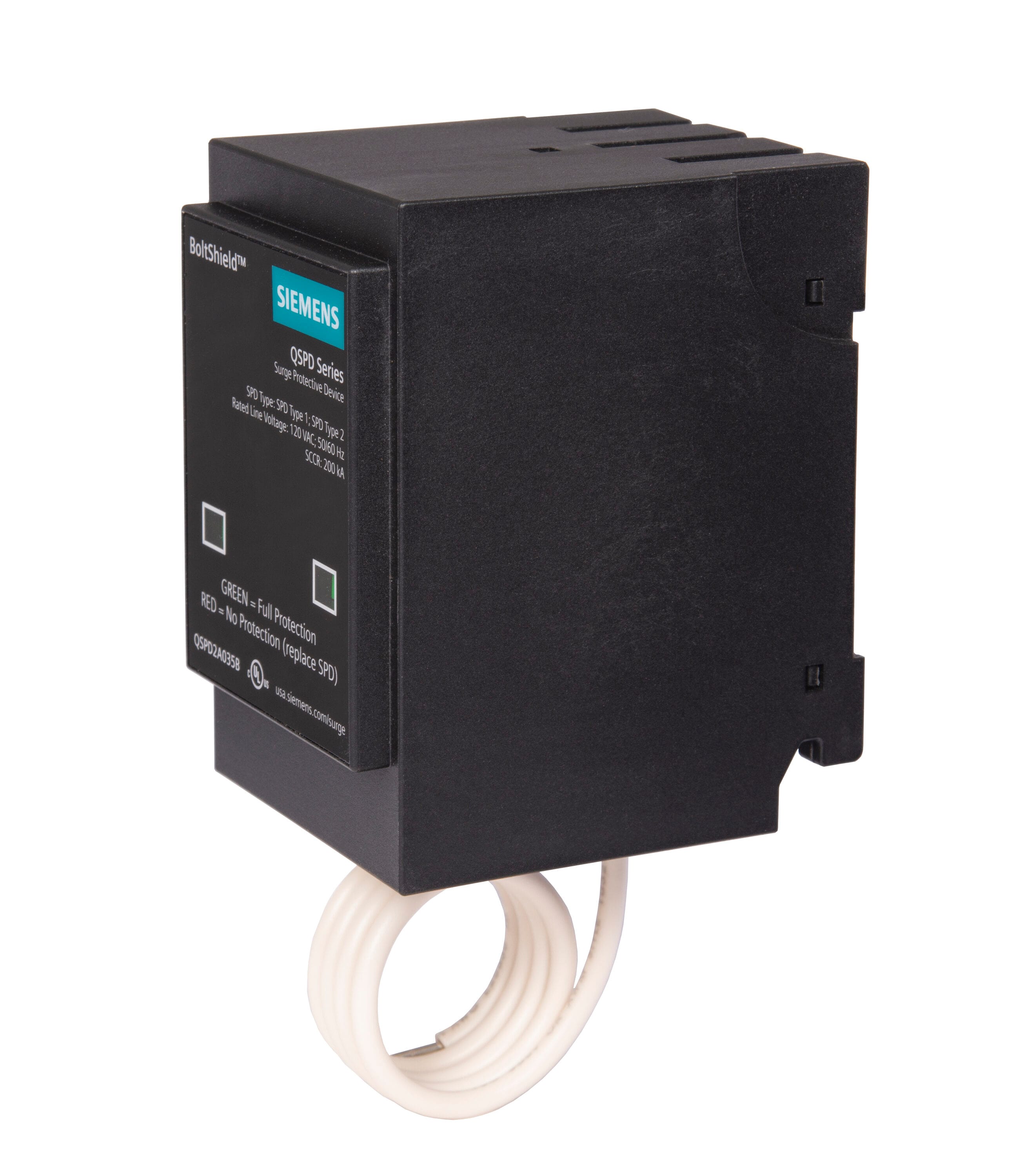

The new BoltShield QSPD series of surge protection provide the best protection from both externally and internally generated surges and are specifically designed for your residential applications. For cost and space reasons many buildings only include one SPD located at the main incoming load center and do not cascade SPDs throughout the building as recommended by IEEE. The QSPD 35kA BASE is ideal for large projects and new customers who need to meet requirements for NEC 2020.

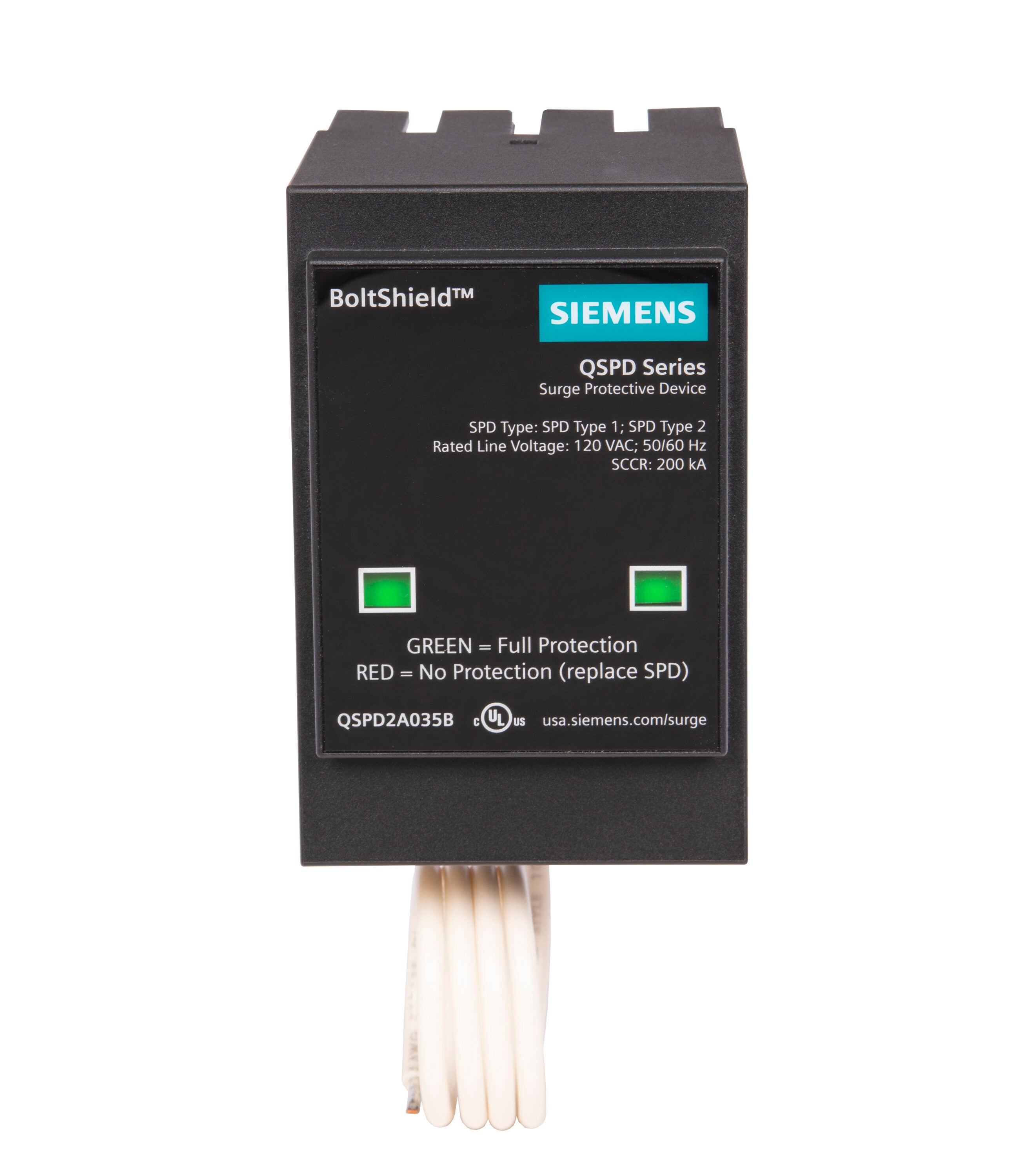

Visual indicators to notify homeowners of protection status and diagnostics
Protecting your home with 35kA surge current protection
Plugs directly into load center bus for quick installation
120/240V, 2-Pole, Single Phase, 3-Wire Applications
35kA surge current rating
22kA short circuit current rating; 20kA I-nominal rating
Stackable design - Install multiple SPDs for added surge current protection
SPD Type 1, also suitable for use in Type 2 application
3 Year Standard Warranty - $10,000 equipment protection
