Siemens space saving, plug in circuit breakers are intended for use in Siemens, Murray, ITE and Gould load centers and meter combinations that are rated to accept type QT breakers. Check wiring diagram to confirm. These duplex breakers provide 2 Single Pole breakers in the space typically required for only one standard breaker. These duplex, 1/2 in. frame breakers are ideal when new circuits are required in a panel that has no available spaces. The non-current limiting breakers are designed for use in Siemens panels manufactured prior to 1968. Siemens type QT dual circuit breakers are 1 in. wide and consist of (2) 1-pole breakers, in varying combinations of ampere ratings from 15 to 30 Amp. All type QT circuit breakers are plug-in style and load terminals are provided with the units. They are rated for 120/240-Volt AC and calibrated for 40C maximum ambient applications. The standard interrupting rating is 10k AIC.

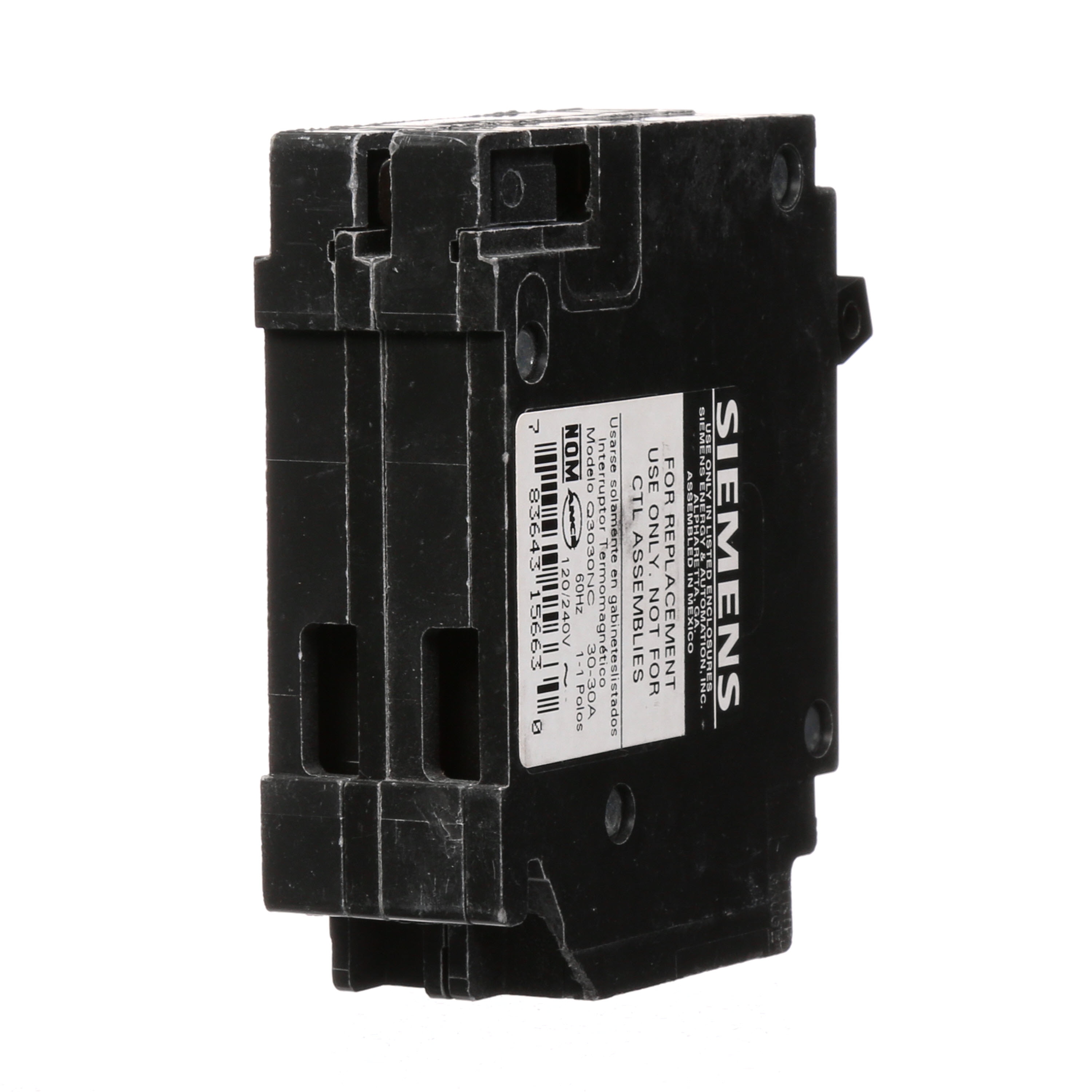

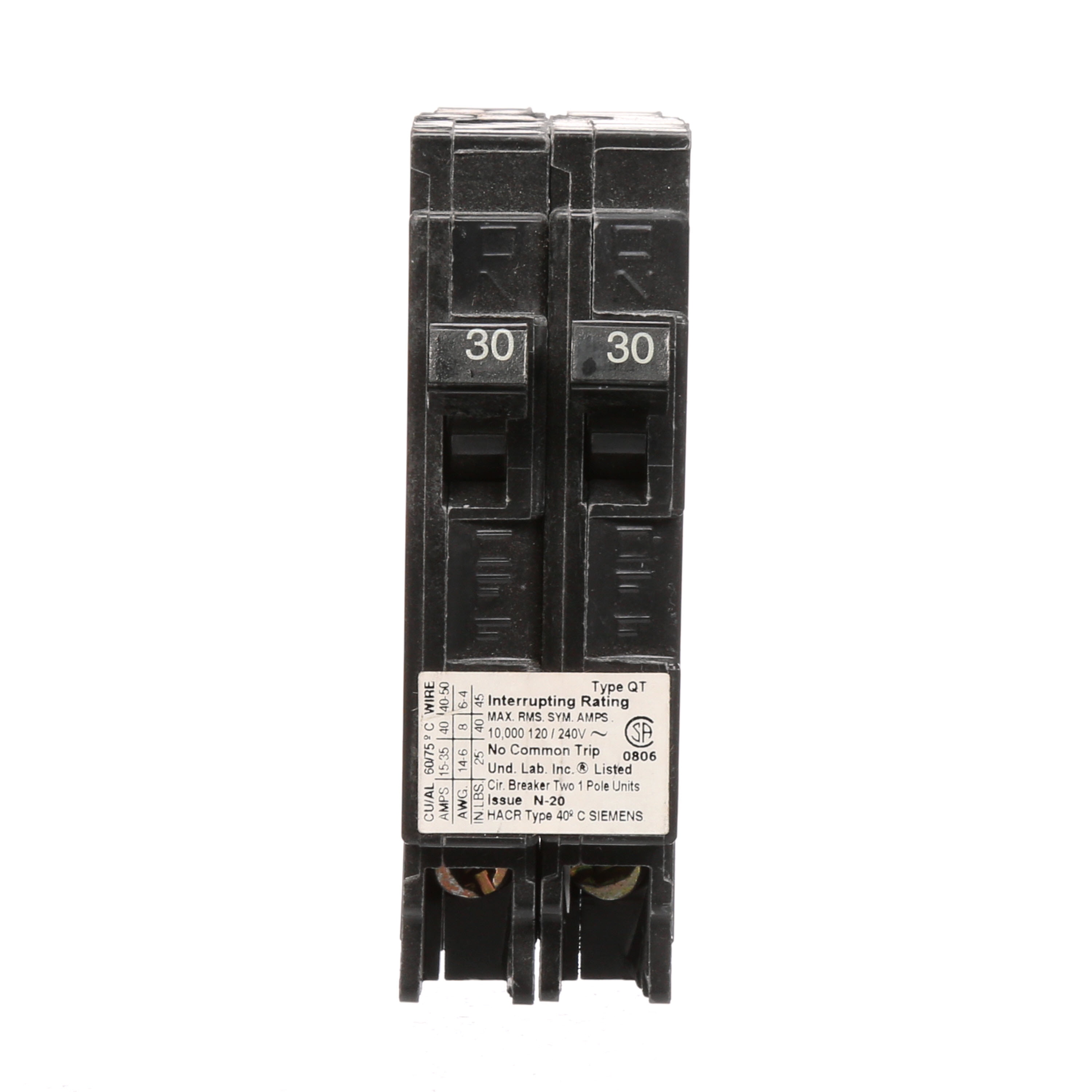

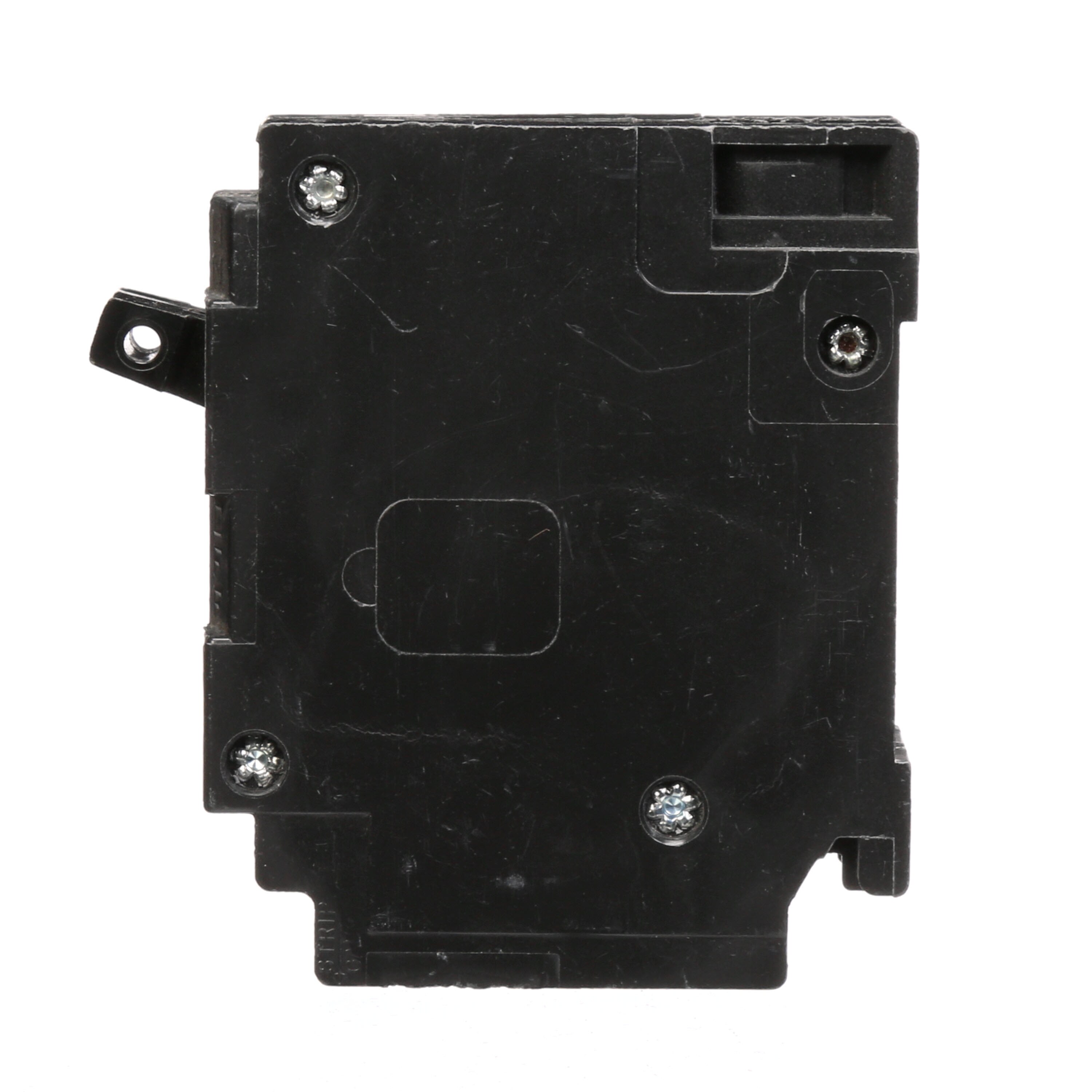

Type QT Tandem 30-Amp/30-Amp Non-CTL Breaker
Designed to protect the home's wiring from high temperatures caused by excess current
For replacement use only in panels manufactured before 1968
Includes (2) 30-Amp single pole circuit breakers in tandem
Features time saving insta-wire connectors
For use with Siemens load centers and plug-on neutral load centers. Siemens circuit breakers are UL listed for use with Murray Meter Combo Load Centers, EQ Small Circuit Load Centers, and Murray Rock Solid Load Centers manufactured after January 2002
10,000 AIC interrupting rating
Requires 1 inch breaker space
Designed for residential/commercial applications. UL Listed, CSA Certified, HACR Rated, SWD Rated
