The URFP is designed to provide a universal retrofit method to secure the mudsill to the foundation. The URFP scalloped, slotted hole feature allows installation flexibility when the mudsill is offset or inset from the foundation edge. With allowable loads deriving from longitudinal embossments and stiffening darts, the URFP may be used as a one-for-one replacement of 1/2-in or 5/8-in mudsill anchors.
Ideal where vertical clearance is minimal
Increased loads for wind or earthquake loading
Includes 1/4-in x 3-in Strong-Drive SDS Heavy-Duty Connector screws
Width: 10-5/8-in
Height: 6-1/4-in
Made from 14-gauge steel
Galvanized (G90) for extra corrosion resistance

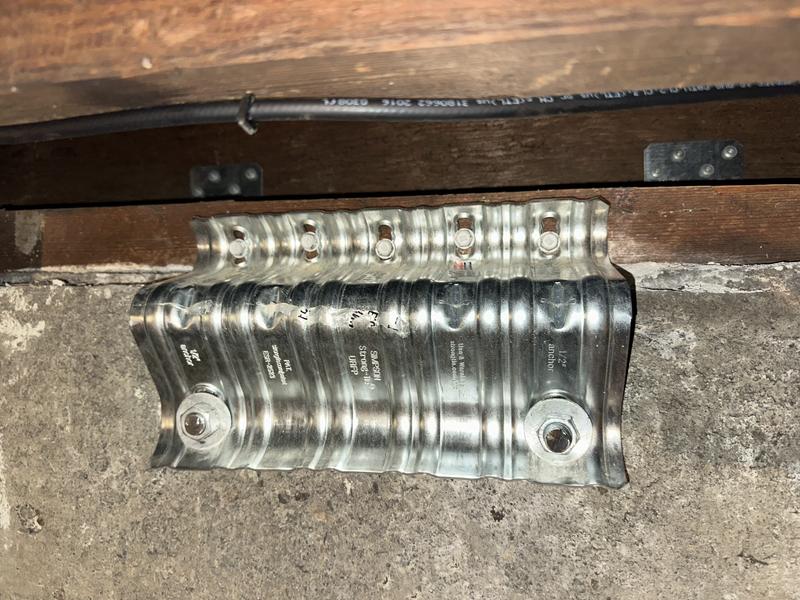

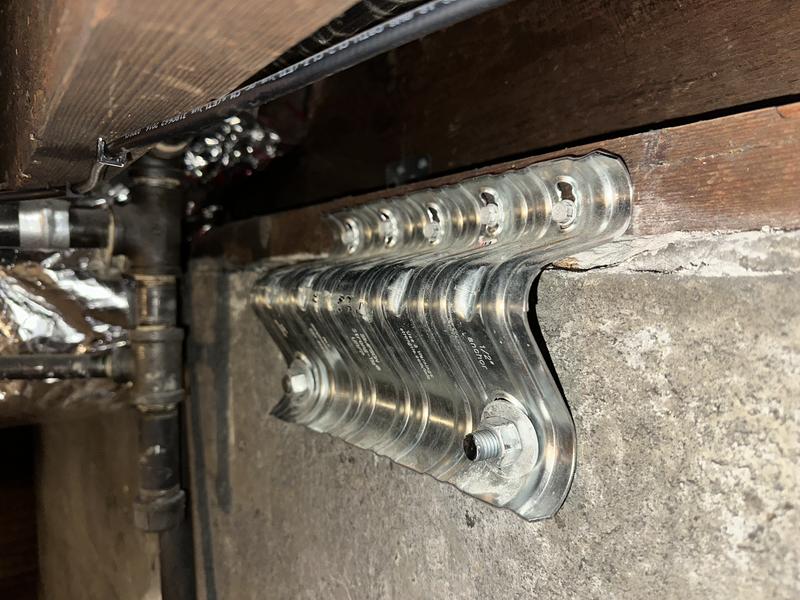

Install with (2) 1/2-in diameter anchor bolts and (5) 1/4-in x 3-in Strong-Drive SDS Heavy-Duty Connector screws (included)
