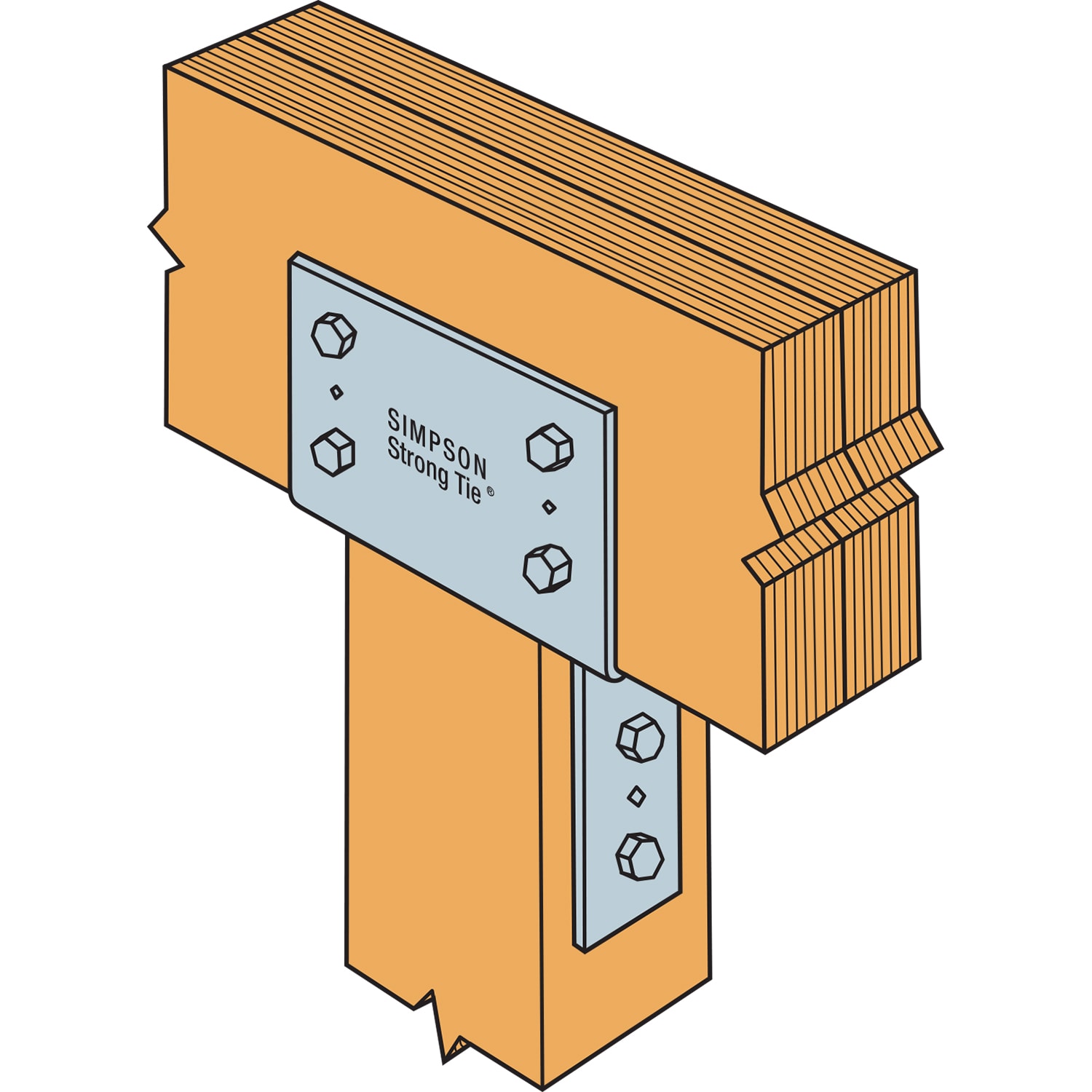

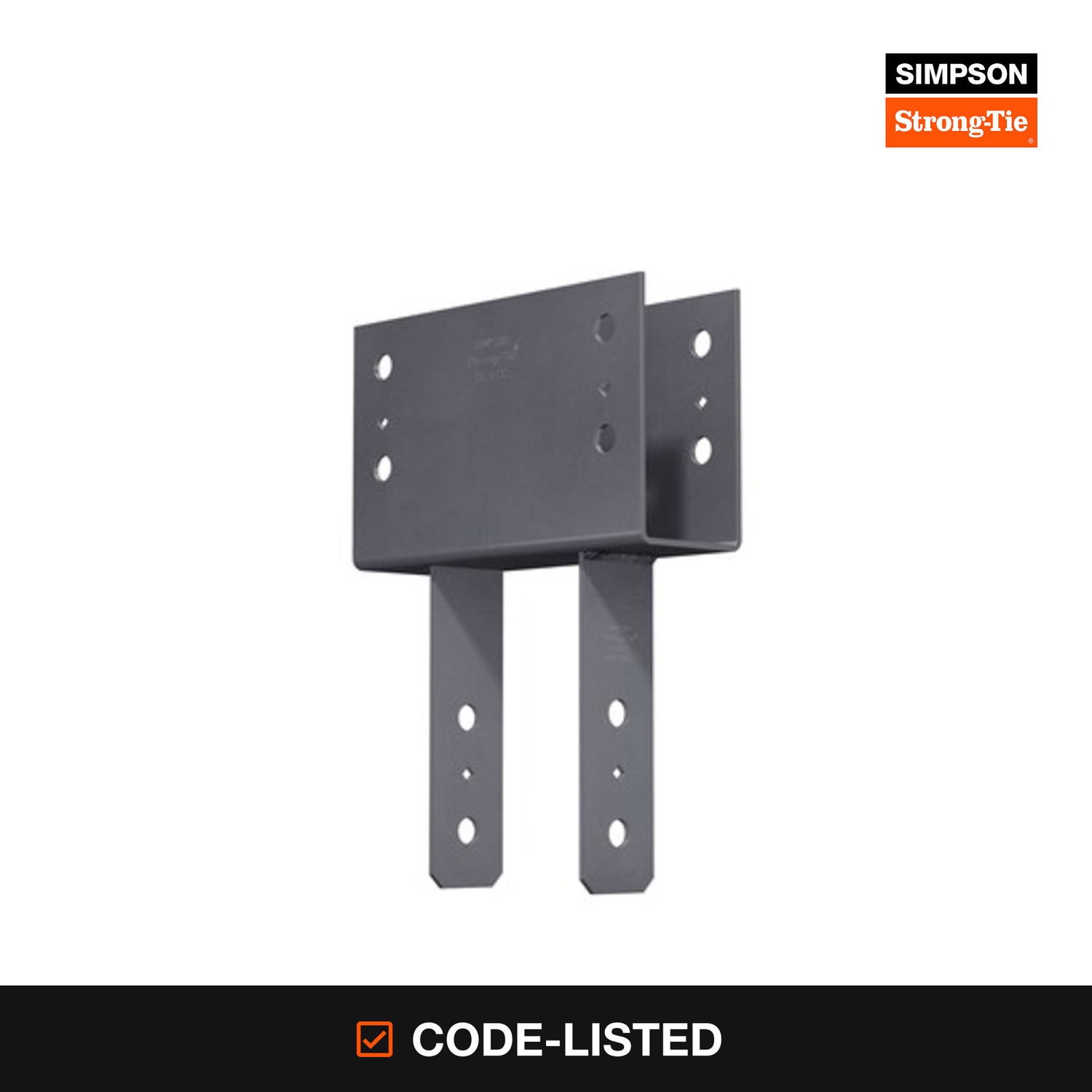

The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Certified welds for confidence in strength and loading
Uplift loads increased for earthquake or wind loading
Bolt spacing that meets NDS code requirements to ensure optimal performance
Diamond holes to provide temporary fastening
Beam width: 3-1/8-in
Nominal post size: 6x
Made from 7-gauge steel
Simpson Strong-Tie gray paint finish
Install with (6) 5/8-in diameter bolts
