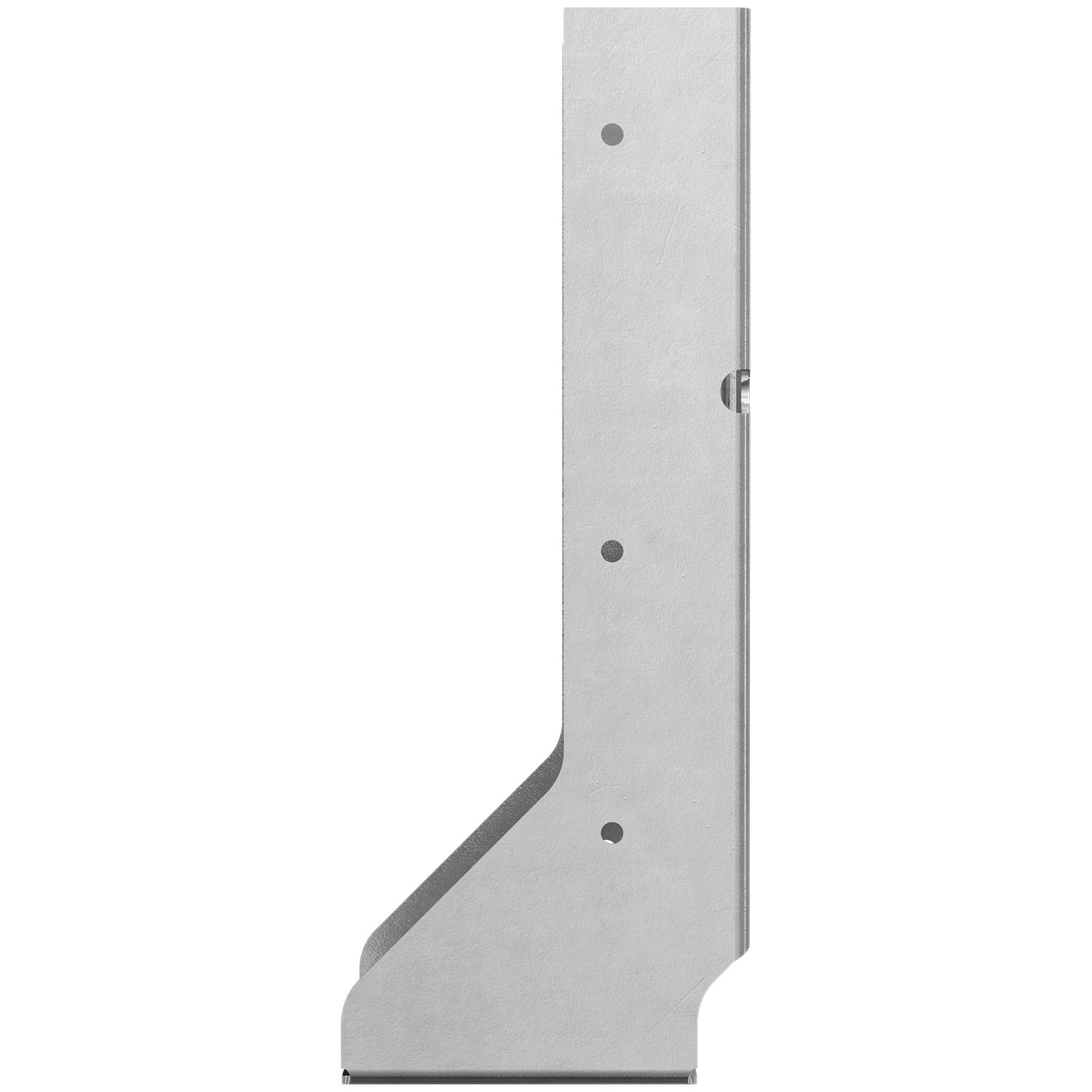

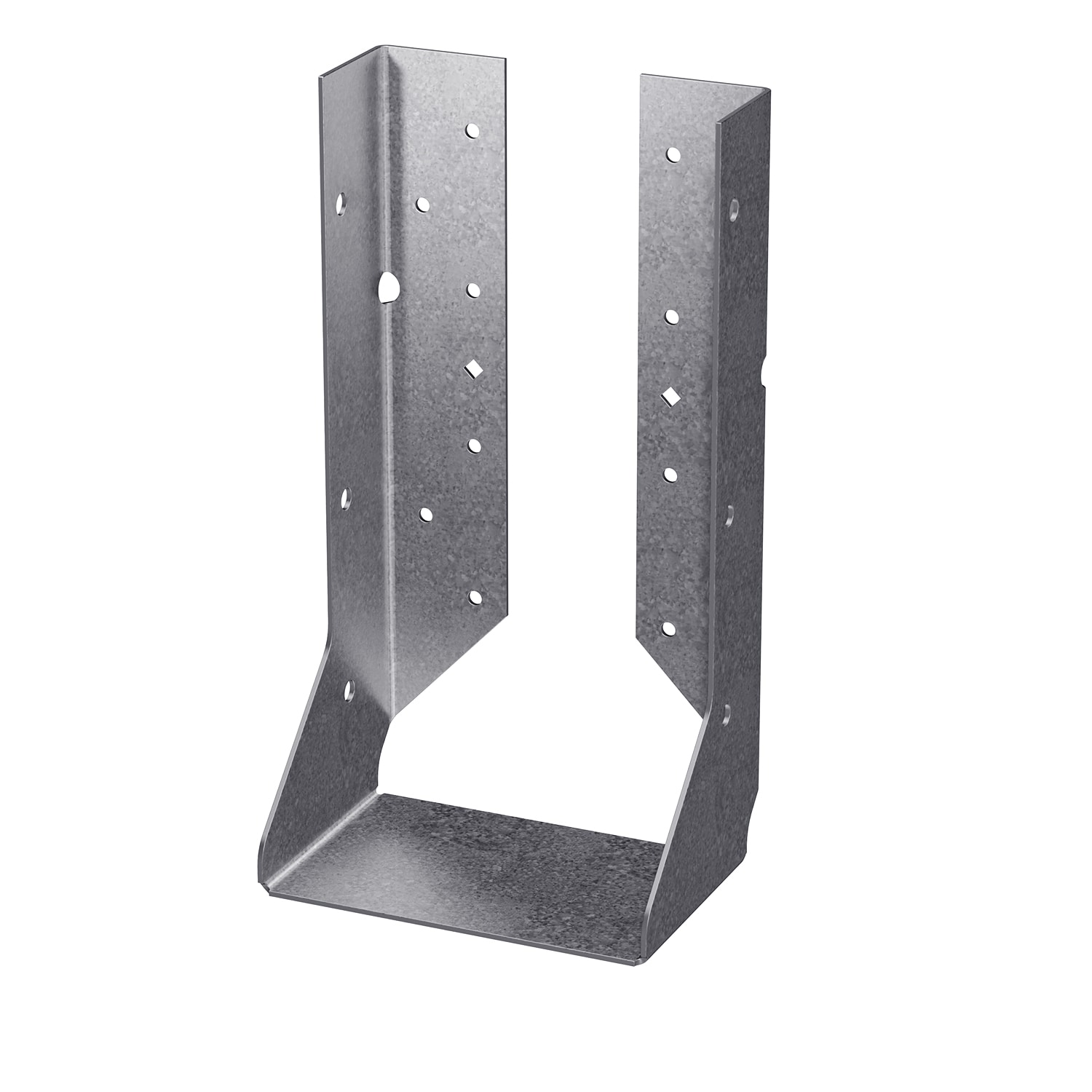

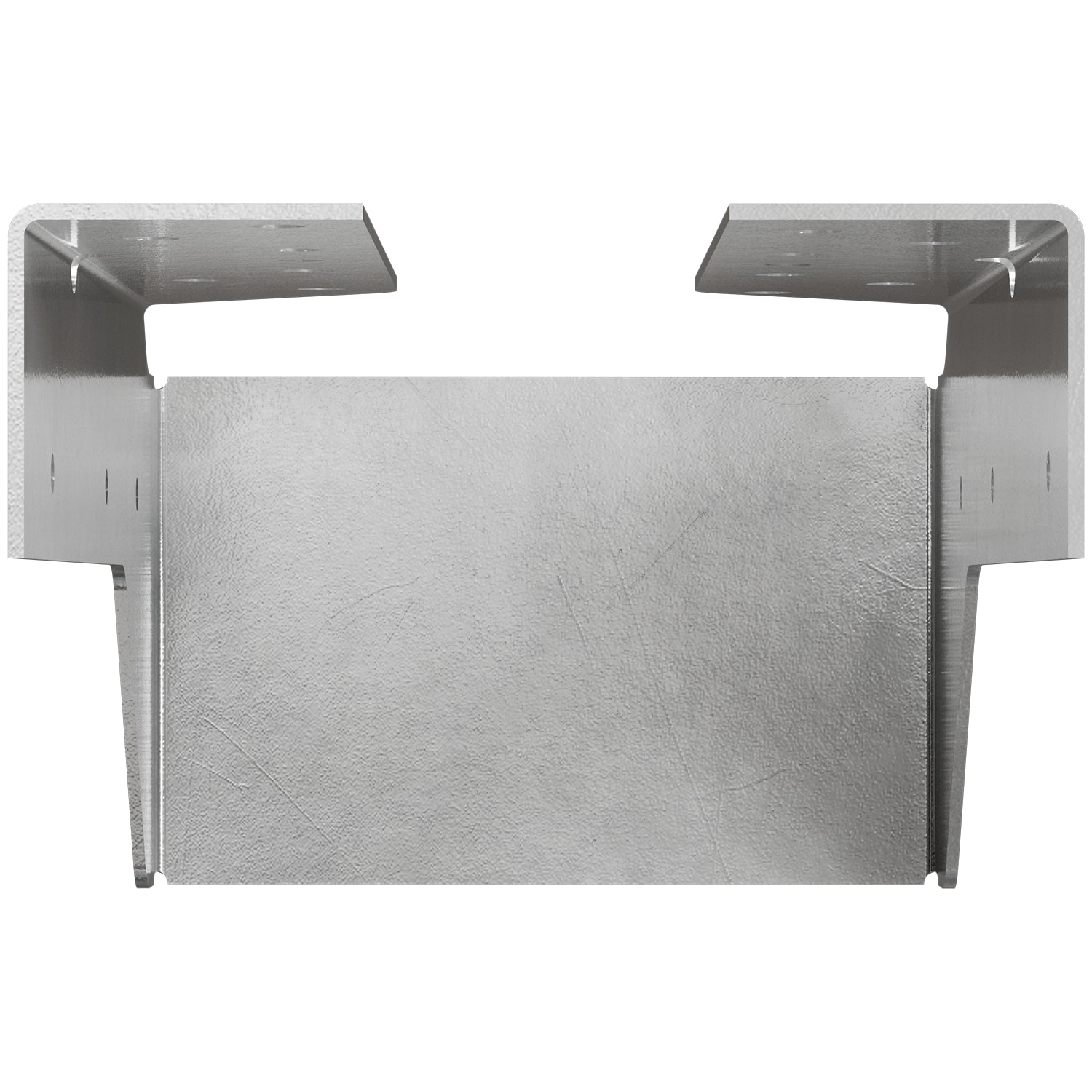

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.
Concealed flanges provide cleaner lines for exposed conditions
HUCQ-series hangers are tested, load rated and code compliant
Strong-Drive SDS Heavy-Duty Connector screws are included
Install wood joists to wood, masonry and concrete
Seat width: 4-5/8-in
Nominal joist size: Triple 2x10
Made from 14-gauge steel
Galvanized (G90) for extra corrosion resistance
Install with (12) 1/4-in x 2-1/2-in SDS screws in the header and (6) 1/4-in x 2-1/2-in SDS screws in the joist (screws included)
