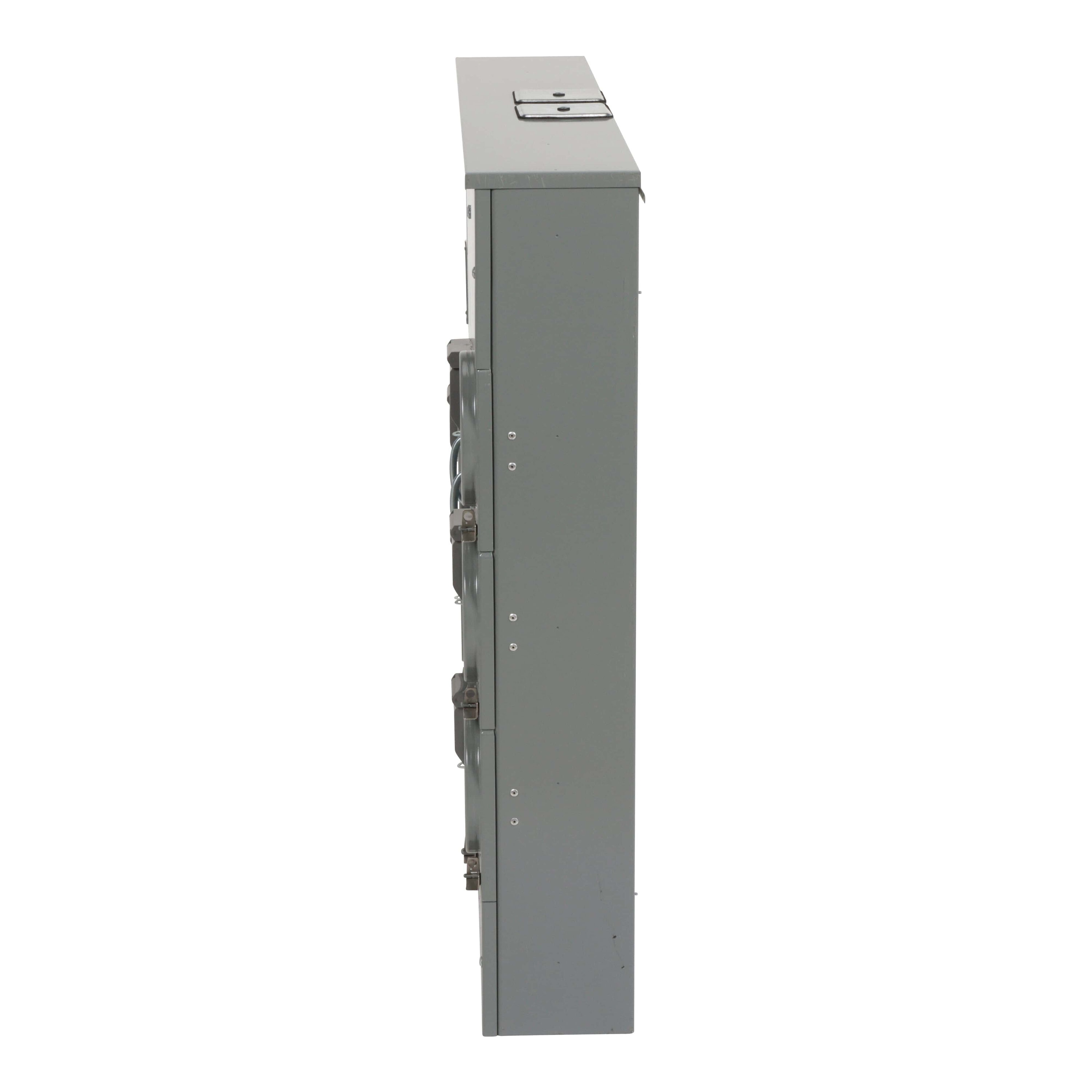

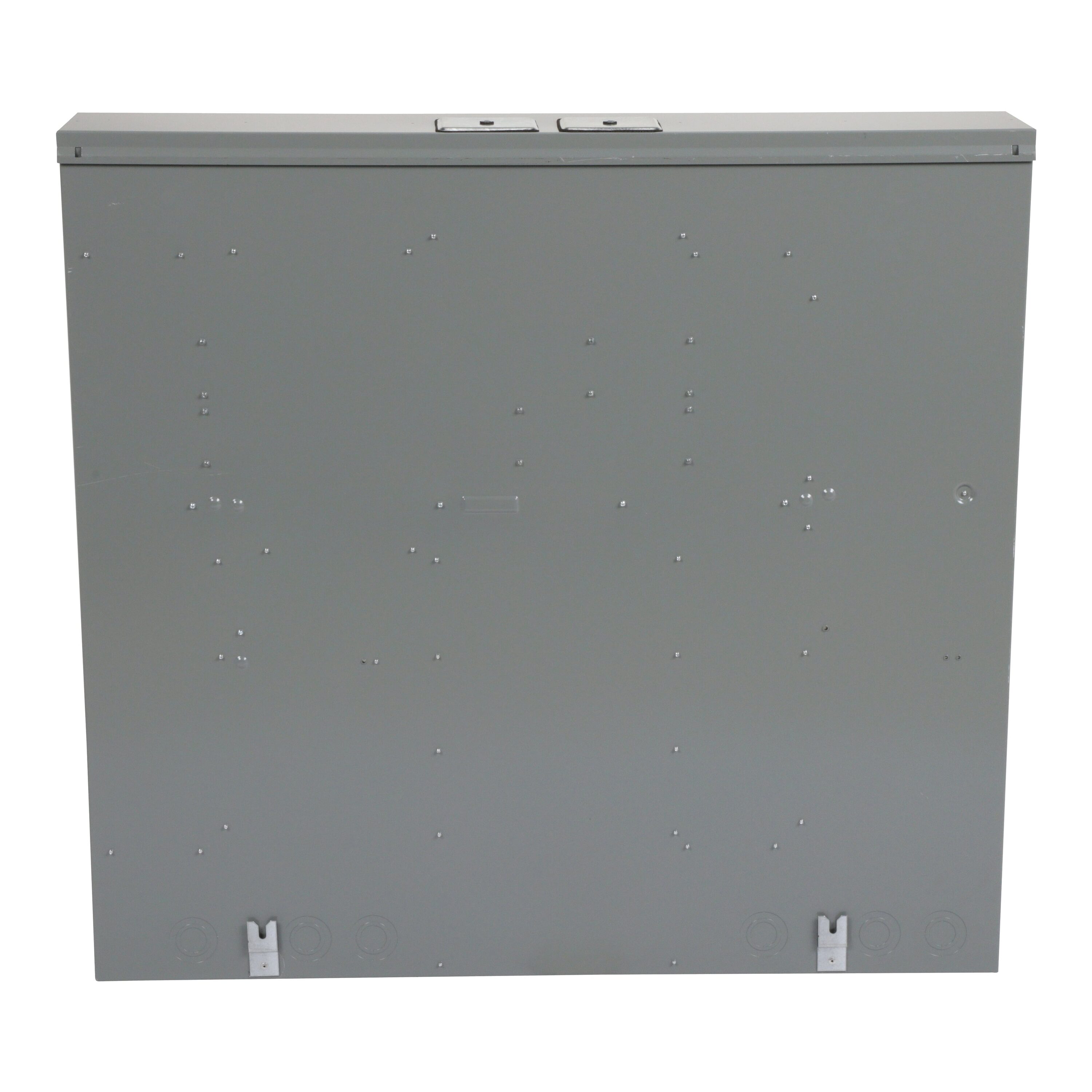

This is a surface mounted ringless meter socket rated at 200 Amp with 5 positions. It has no bypass and a 800 Amp main bus. Can be used in small residential settings or light commercial applications. It has 9 in. meter spacing that allows for more sockets per device creating more compact branch enclosures. It is UL Listed and its NEMA Type 3R construction meets EUSERC standards.
This is a surface mounted ringless meter socket rated at 200 Amp with 5 positions
No bypass and 800 Amp main bus
Can be used in small residential settings or light commercial applications
It has 9 in meter spacing that allows for more sockets per device creating more compact branch enclosures
Overhead or underground, ringless 5-jaw meter socket
(2) A-L type hub provision, NEMA Type 3R enclosure for outdoors
Contact your local utility company to ensure requirements are met
Meter socket jaws, constructed of tin plated copper, are spring reinforced on MP devices
Main bus ratings range from 200 to 800 Amp
