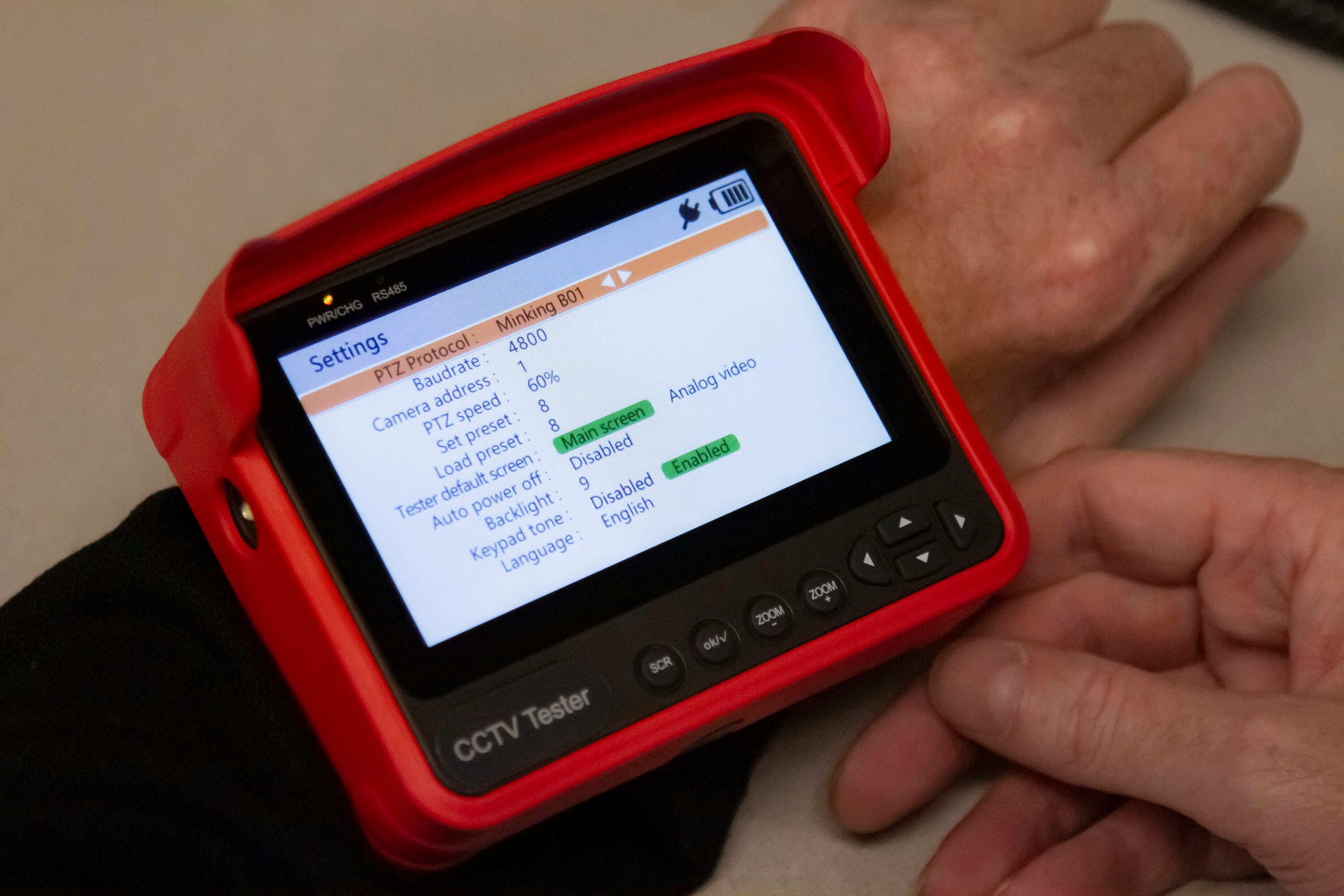

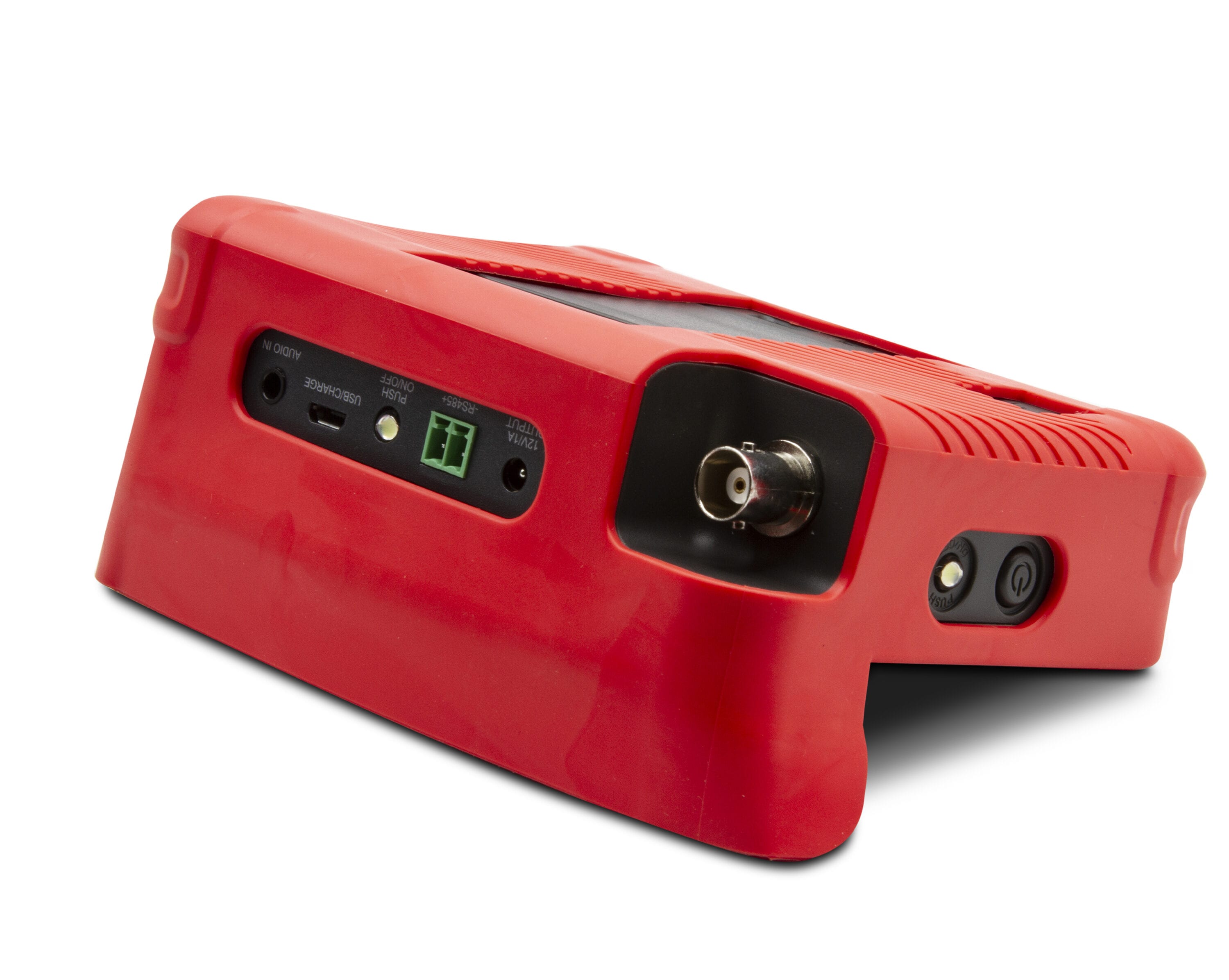

The Triplett CamView 8064 Analog Camera Tester is designed to facilitate the installation and maintenance of surveillance video equipment using Standard Definition analog NTSC/PAL, HD-TVI, HD-CVI, and AHD camera systems. The Tester has an RS485 port for testing the Pan-Tilt-Zoom (PTZ), and supports more than 30 PTZ protocols. It can also provide 12VDC (not to exceed 1A) to power the analog camera. You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight. Supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0. This Tester is powerful, portable, and designed with the technician in mind. It will help you perform installation and maintenance jobs quickly and efficiently.
Analog testing for up to 8MP cameras; Automatically recognizes the type of encoding: SD Analog, AHD 2.0, HD-CVI 3.0, HD-TVI 3.0
RS485 port for testing the Pan-Tilt-Zoom (PTZ) and supports more than 30 PTZ protocols
12VDC/1A output
Analog Video Generator and HD Video Generator (up to 1080P 30fps); Screen shot, video recording, and frame by frame or streaming playback
