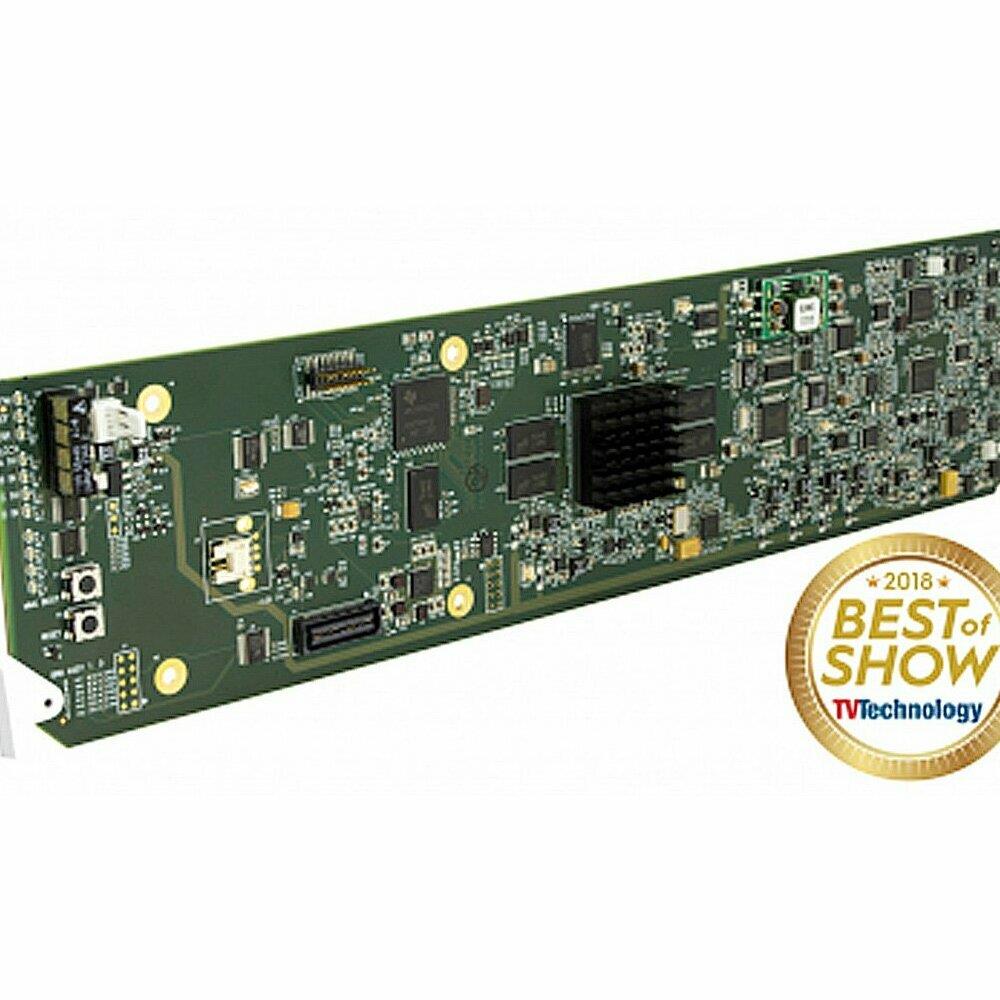

Cobalt Digital CB-9904-UDX-4K UHD Up, Down and Cross Converter and Frame Sync

The 9904-UDX-4K upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K offers numerous options, including SDR-to-HDR conversion and color correction. The 9904-UDX-4K-IP model offers the same functionality as the Cobalt Digital 9904-UDX-4K SDI-based model, but also provides dual 10GigE ports providing support for the emerging uncompressed video/audio/data over IP standards. FeaturesSupports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD formats12G-SDI and quad 3G frame sync and user delaySupports SNMP and Cobalt's Reflex (JSON) ProtocolsFull embedded audio processing with user delay offset and AES I/ONoise Reduction and Detail Enhancement provide image quality optimizationReturn Loss15 dB up to 1.485 GHz > 10 dB up to 3 GHz > 7 dB up to 6 GHz > 5 dB up to 12 GHzInput Cable Length60m Belden 1694A cable at 11.88 Gbps120m Belden 1694A cable at 2.97 Gbps240m Belden 1694A cable at 1.485 Gbps400m Belden 1694A cable at 270 MbpsSpecificationsMax offset: 20 framesOutput Signal Level: 800 mVDC Offset: 50 mVLatency: 1 FrameWeight: 1 lbs
