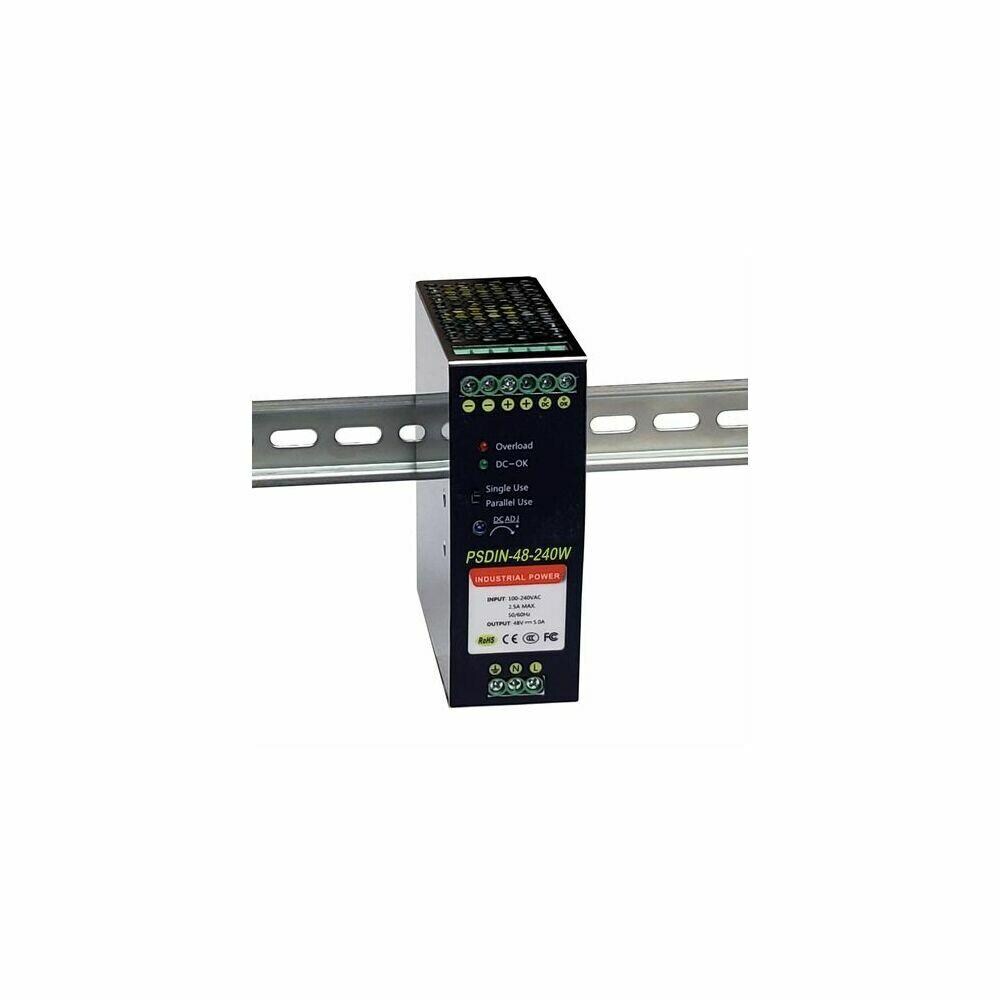

Tycon PSDIN-48-240W 48V 240 watt AC-DC DIN Rail Mount Industrial Power Supply

The PSDIN-48-240W Industrial DIN Rail mount high efficiency switching power supplys operates over a wide temperature range of -40C to +70C. This model supplies up to 240W. The input is 90-264VAC auto-ranging with wire terminal connections. The output is 48VDC nominal with an adjustment range from 47VDC to 56VDC. There is a switch for single or parallel operation. Two 240W supplies operating in parallel will provide 480W total power. There is an alarm output to provide a dry contact closure to trigger an alarm if the DC output fails, like during a grid power failure. The relay is closed when DC output is normal and open when DC output is in fault condition due to overload or safety shutdown. Features High Power and rugged design Short Circuit, Over-Voltage, Over-current Protection 90-264VAC Auto Ranging Input 47-56VDC Adjustable Output -40C to +70C Operating Temperature Supports Parallel Operation Dry Contact DC Alarm DIN Rail Mount Industrial 90-264VAC Input 48VDC( Adjustable) 240W out Specifications Volts: 48V Watts: 240 watt Weight: 1.7 lbs
