VEVOR Electric Motor: Inject powerful performance into your equipment with the VEVOR 2HP electric motor; Operating at 115V/230V voltage with 20.5A/10.5A current, it features 1725 RPM high speed, 143/5T frame, 2.25-inch shaft length, 7/8-inch keyed shaft, and CW/CCW dual rotation direction;; [Package Content] 1 x User Manual

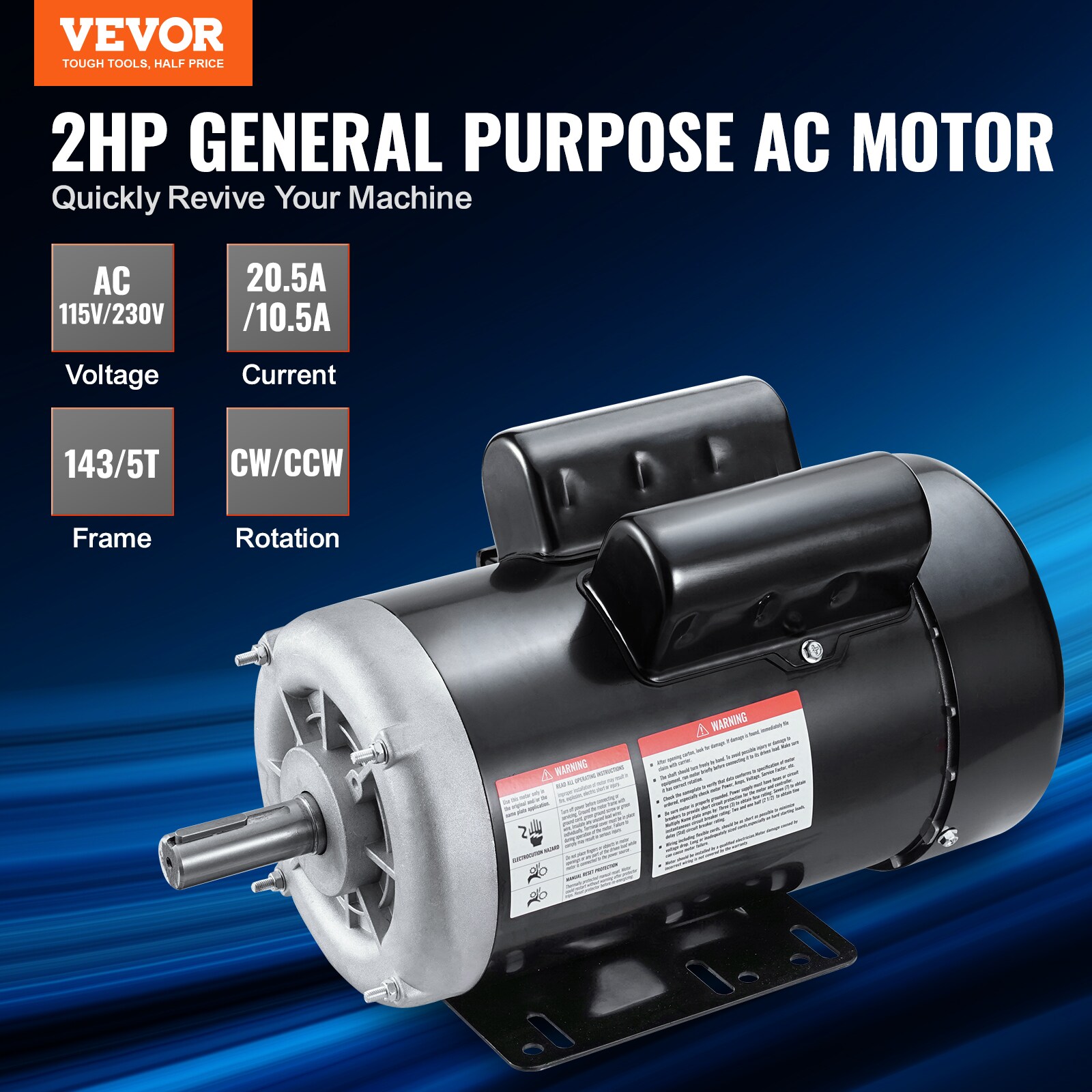

Powerful Performance: 2HP, Single Phase, Full Load Current: 20.5A/10.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15;
Sturdy Frame Type: 143/5T Frame, 7/8" Keyed shaft, Shaft length: 2.25", Keyway size: 0.188";
Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications;
2HP, Single Phase, Full Load Current: 20.5A/10.5A, AC 115V/230V 60Hz, 1725 RPM High Speed;
143/5T Frame, 7/8" Keyed shaft, Shaft length: 2.25", Keyway size: 0.188";
Our electric motor offers reversible CW/CCW rotation, providing quick, versatile connections for various applications;

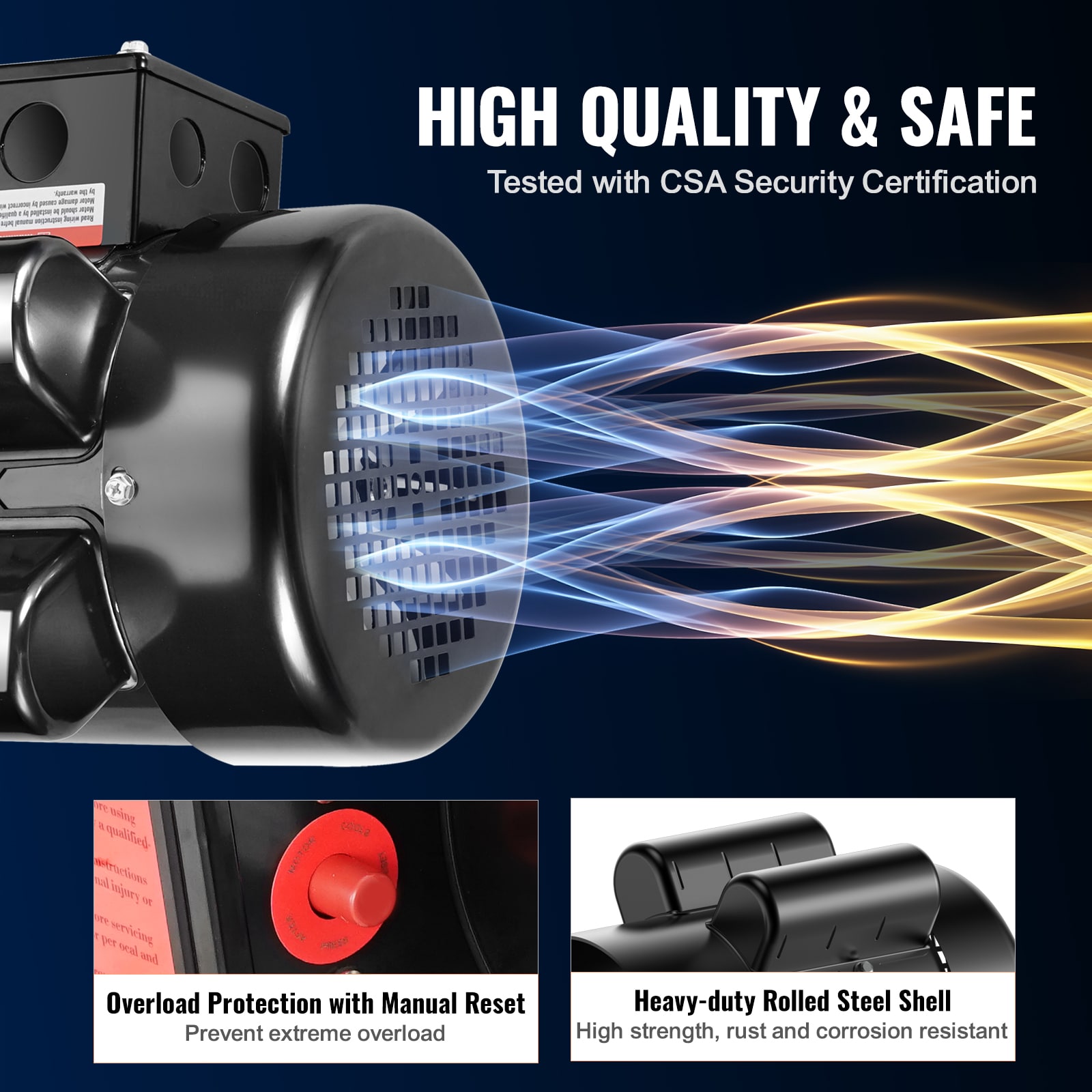

Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability; It also includes overload protection with manual reset, ensuring longer service life and dependable performance;
Wide Range of Applications: VEVOR 2HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment; It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs;

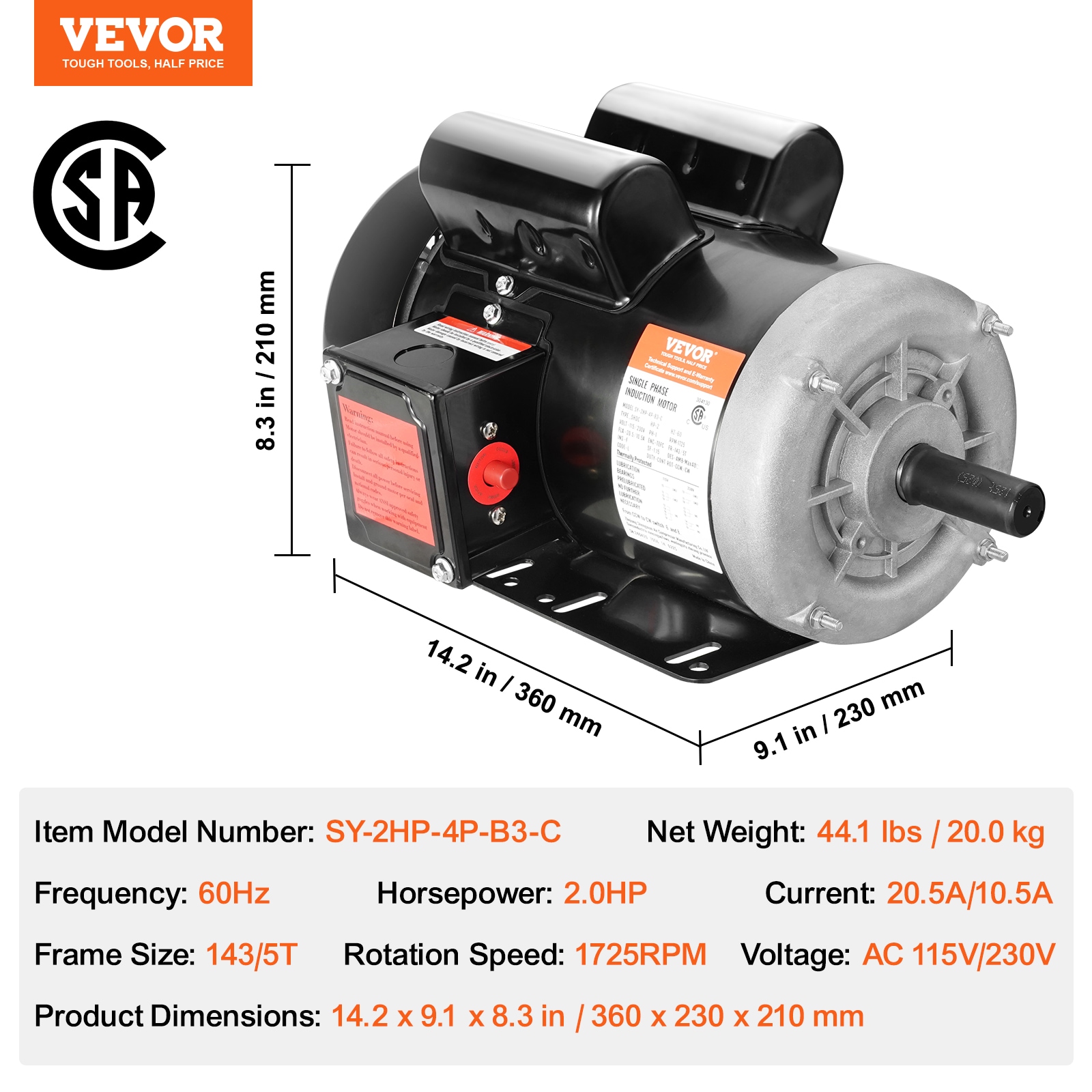

Specification: Item Model Number: SY-2HP-4P-B3-C; Voltage: AC 115V/230V; Frequency: 60Hz; Horsepower: 2.0HP; Current: 20.5A/10.5A; Frame Size: 143/5T; Rotation Speed: 1725RPM; Net Weight: 44.1 lbs / 20.0 kg; Product Dimensions: 14.2 x 9.1 x 8.3 in / 360 x 230 x 210 mm
