VEVOR Door Hinge Jig, Empowering precise and fast woodworking drilling: The hinge jig features a stable structure that remains resistant to deformation even with long-term use; With dual clamp fixation, it provides stronger grip and more precise positioning, allowing you to complete hinge hole drilling quickly and easily; Overall, it offers a user-friendly experience and simple operation, making it the ideal companion for efficient and stable woodworking drilling in various scenarios;; [Package Content] 1 x Jig Frame; 1 x Φ1.38''/35mm Hole Cutter; 1 x Hex Wrench; 2 x Double-End Open Wrench (8-10); 1 x Φ2mm Twist Drill Bit; 1 x Positioning Ring; 1 x Top Bearing (6801Z); 2 x Butterfly Nuts; 1 x User Manual
It features a frame made of high-strength aluminum alloy and drilling tools made of carbon steel + YG8 hard alloy
The adjustable range for spacing is 0.12-0.28 inch, with a drilling depth of 0.39-0.59 inch
It comes with dual clamps for a secure grip

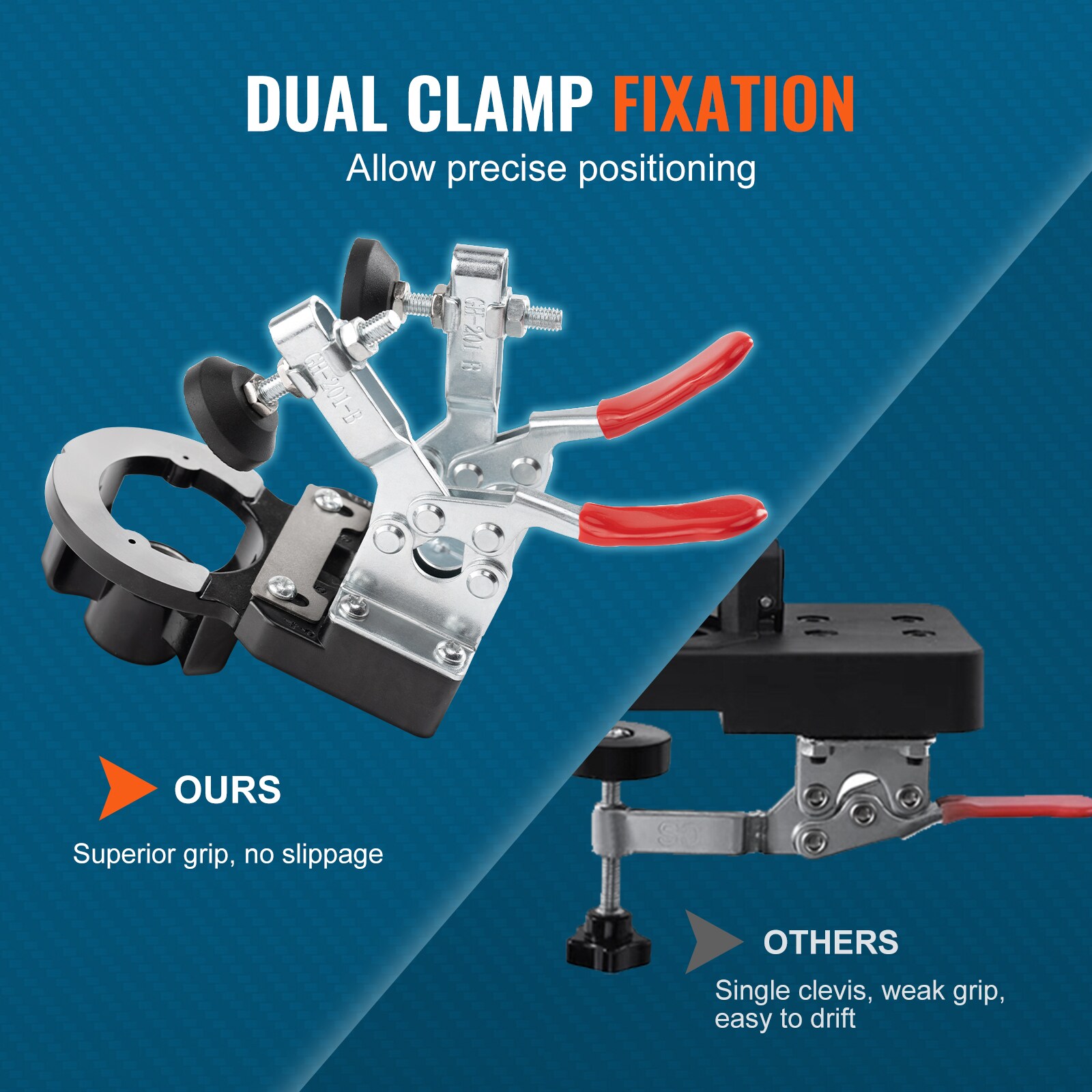

Dual-Clamp Fixation: This adjustable dual-clamp hinge jig ensures precise alignment, unlike single-clamp versions, providing superior stability and preventing slippage; Its built-in dual-clamp design quickly and securely holds workpieces in place, preventing displacement of hole positions and ensuring drilling accuracy and stability; It also minimizes drilling deviations caused by workpiece movement, reducing errors and maintaining drilling precision;
Sturdy and Durable: The door hinge jig frame is made of high-strength aluminum alloy, while the drilling tools are made of carbon steel and YG8 hard alloy; The overall structure is stable, ensuring durability and adaptability to different environments, including harsh weather conditions, high temperatures, and moisture; It maintains its strength and stability, with minimal risk of deformation or damage even with prolonged use;

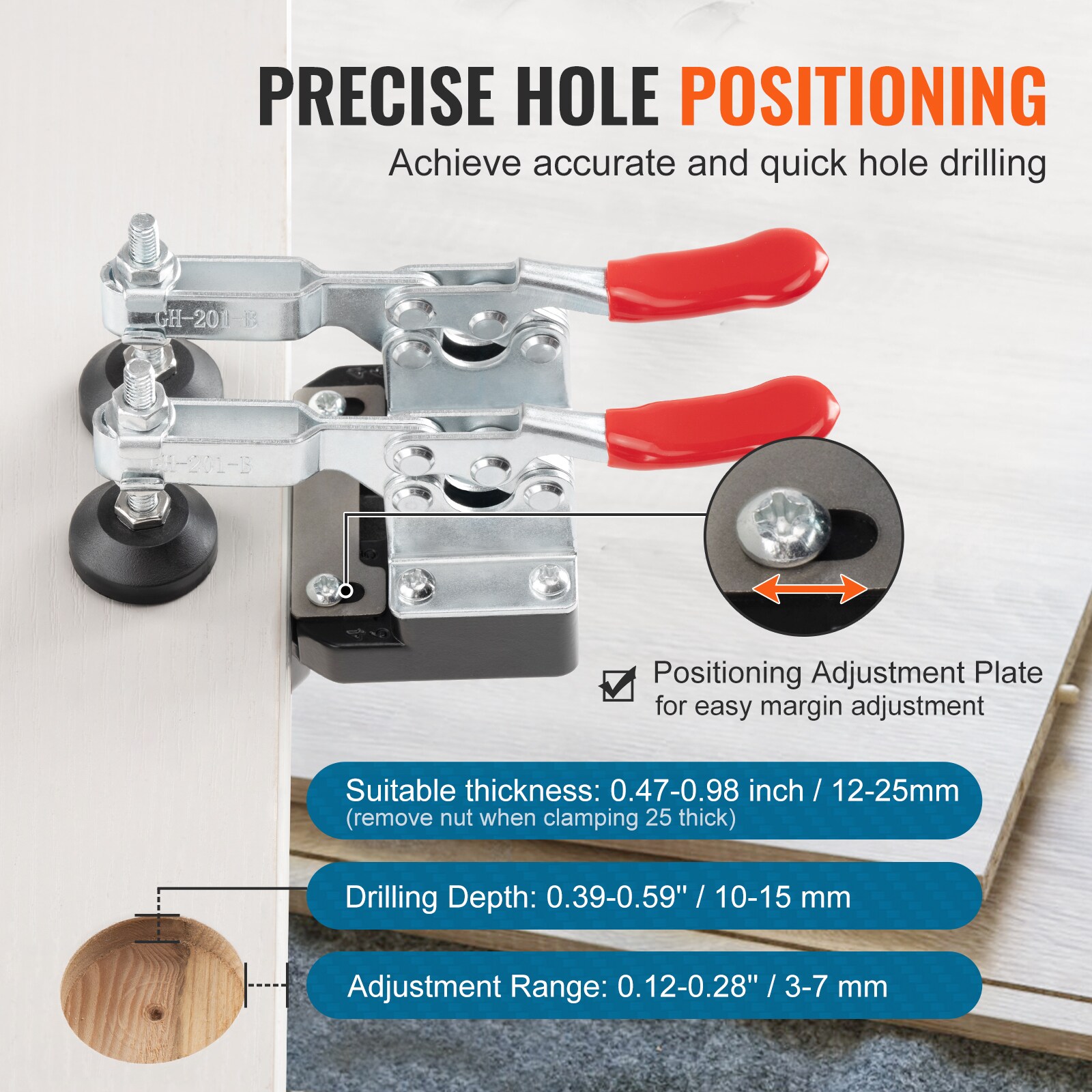

Precision Drilling: This tabletop concealed hinge jig achieves quick and precise hole alignment through the adjustable positioning plate for edge spacing and the top-bearing depth adjustment; You can easily adjust the edge spacing by loosening the screws, with a range of 0.12-0.28 inches (3-7 mm), and the drilling depth ranges from 0.39-0.59 inches (10-15 mm); The higher the top-bearing height, the more precise the holes it drills;
User-Friendly: Our hinge jig kit is easy to operate and install without professional assistance; Just follow the 4-step instructions in the manual: Step 1, replace the top nut with a butterfly nut; Step 2, install the tools, top bearing, and limit ring in sequence; Step 3, adjust the hole spacing and clamp the workpiece securely; Step 4, use an electric drill to fix, drill the holes and side holes, and install the hinge; You can complete the installation in just a few minutes;
Wide Application: This cabinet hinge jig is designed for 1.38'' hinges and can be used with various drill bits to meet different usage scenarios; It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks; It has a 1.38''/35 mm drill bit for drilling holes; The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm);

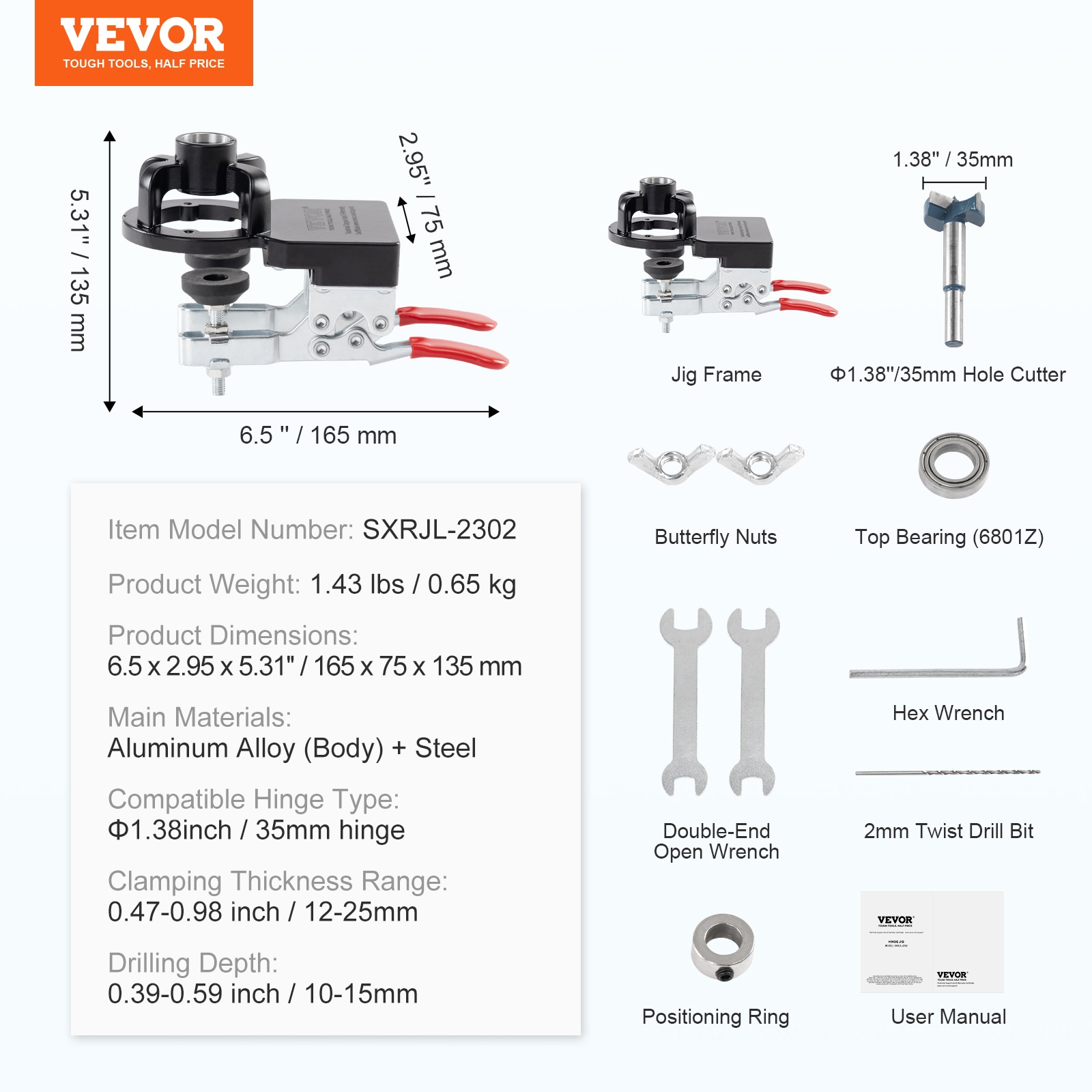

Specification: Item Model Number: SXRJL-2302; Compatible Hinge Type: Φ1.38inch / 35mm hinge; Clamping Thickness Range: 0.47-0.98 inch / 12-25mm; Drilling Depth: 0.39-0.59 inch / 10-15mm; Main Materials: Aluminum Alloy (Body) + Steel; Product Weight: 1.43 lbs / 0.65 kg; Product Dimensions: 6.50 x 2.95 x 5.31 inch / 165 x 75 x 135 mm
