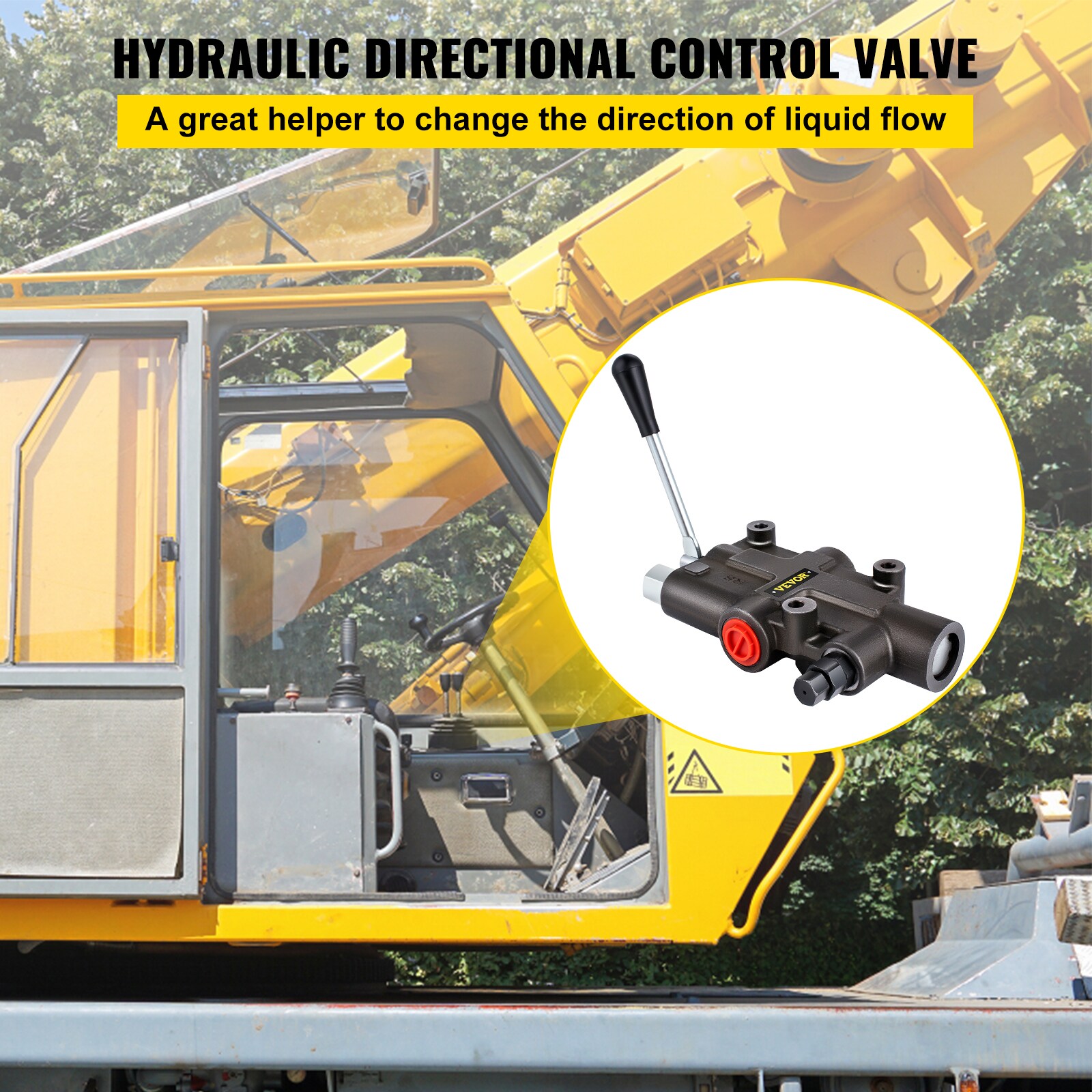

1 Spool 21gpm Hydraulic Directional Control Valve: Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications; It is compact but has a flow capacity of 21GPM at 3625psi; This valve is an alternative to currently available monoblocks; It is supplied with an adjustable relief valve and levers as standard;; [Package Content] 1 x 1 Spool Hydraulic Directional Control Valve
The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM; The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line;
In addition, there is a spring at the bottom of the handle that makes the joystick easy to control;
The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system;
Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service; The compact design allows it to install in narrow areas and maximizes its control capabilities;
Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry; The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled;
Specification: Model: 121GPM3625; Max operating pressure: 3625 PSI; Flow Rating: 21gpm; Relief Valve: Adjustable; Center system: Open; Spool Count: 1-Spool; Valve Operation: Manual; A, B ports: 1/2" BSPP; T, N port: 3/4" BSPP; P port: 1/2" BSPP
