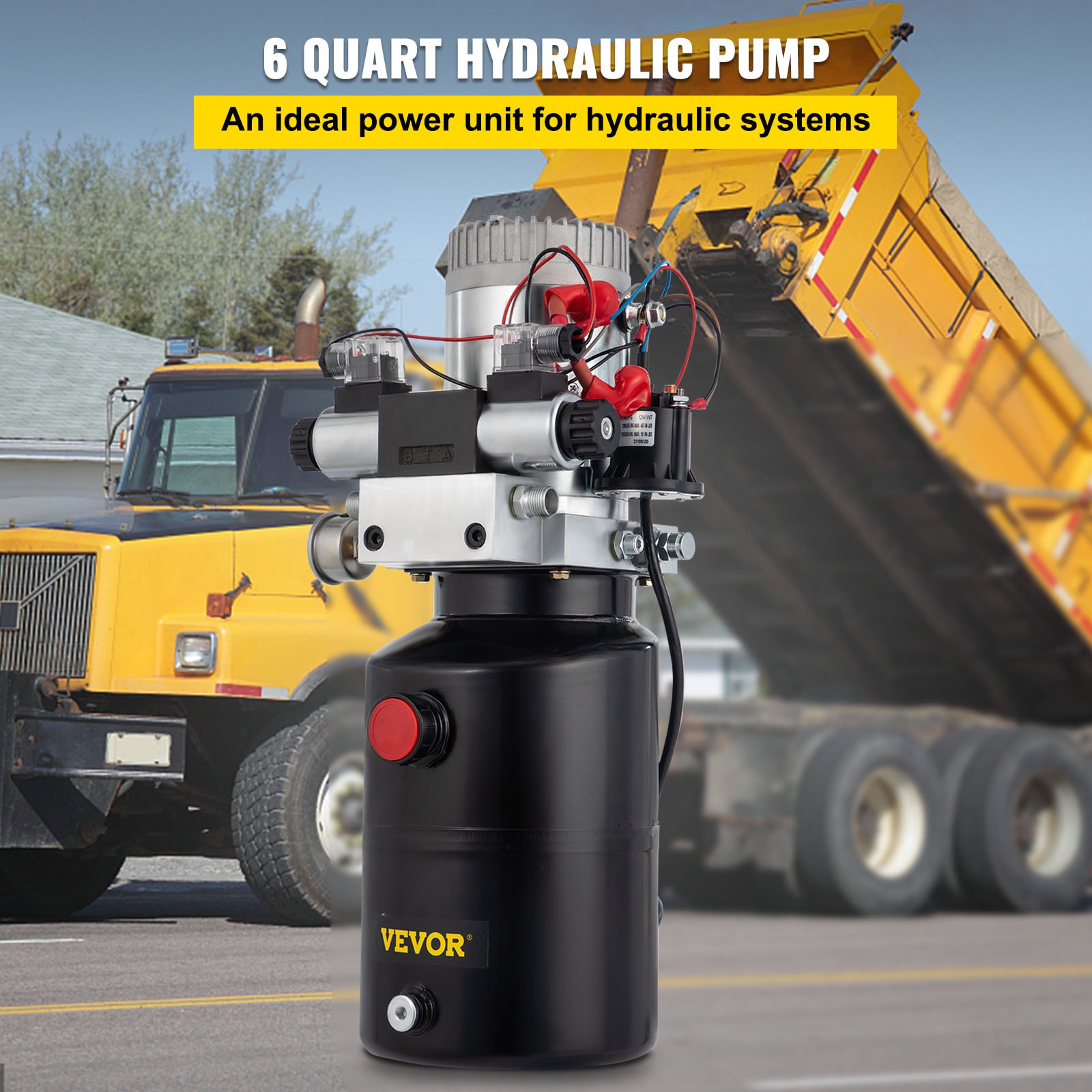

6 Quart Double Acting Hydraulic Pump: This hydraulic pump is a double-acting power unit for both lifting and lowering; It has a 6-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc;; [Package Content] 1 x 6 Quart Double Acting Hydraulic Pump w/ Gauge; 1 x English Manual; 2 x SAE # 6 Connectors

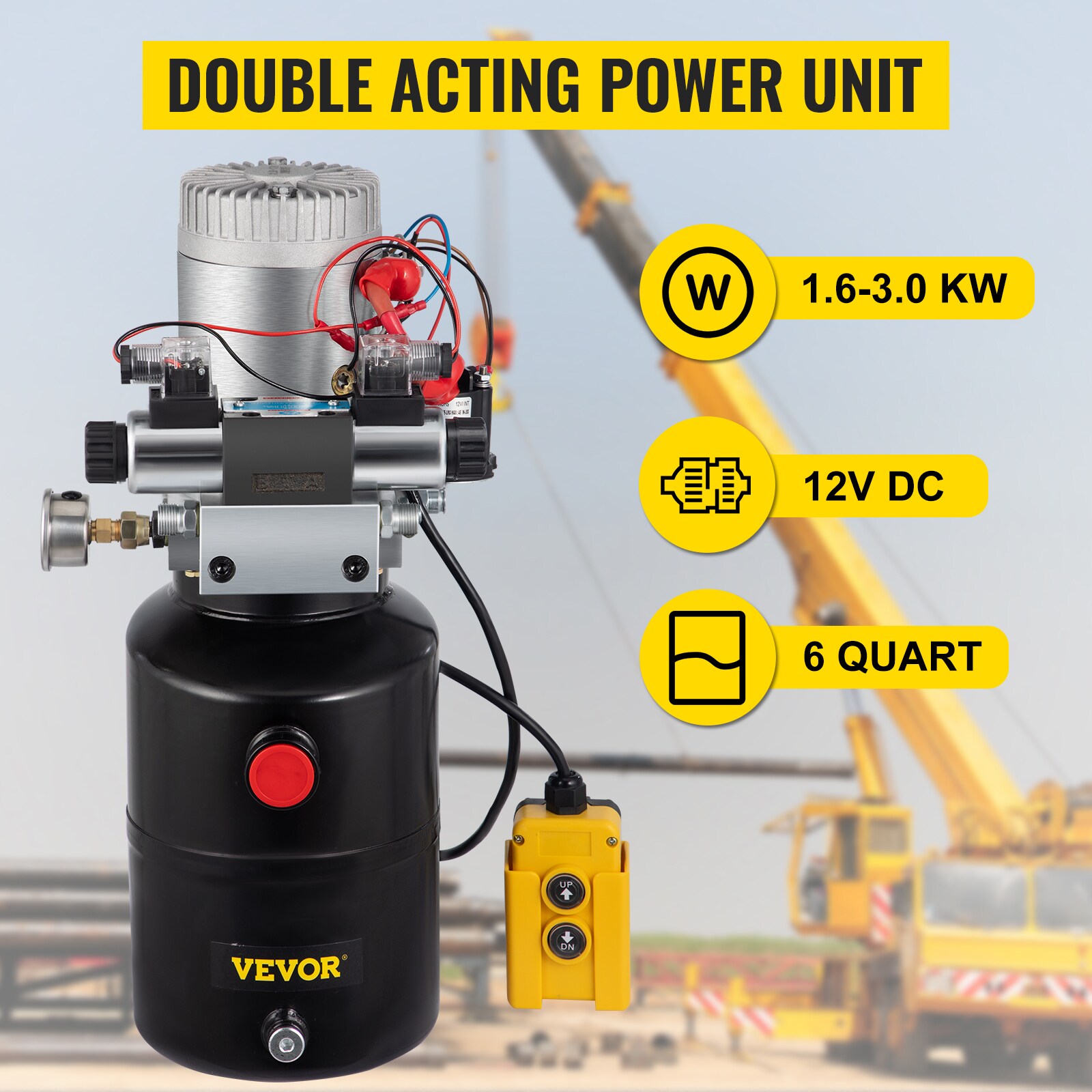

Double-Acting Hydraulic pump with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir.
This hydraulic power unit has been fully assembled, the wiring is simple and comes with operating instructions

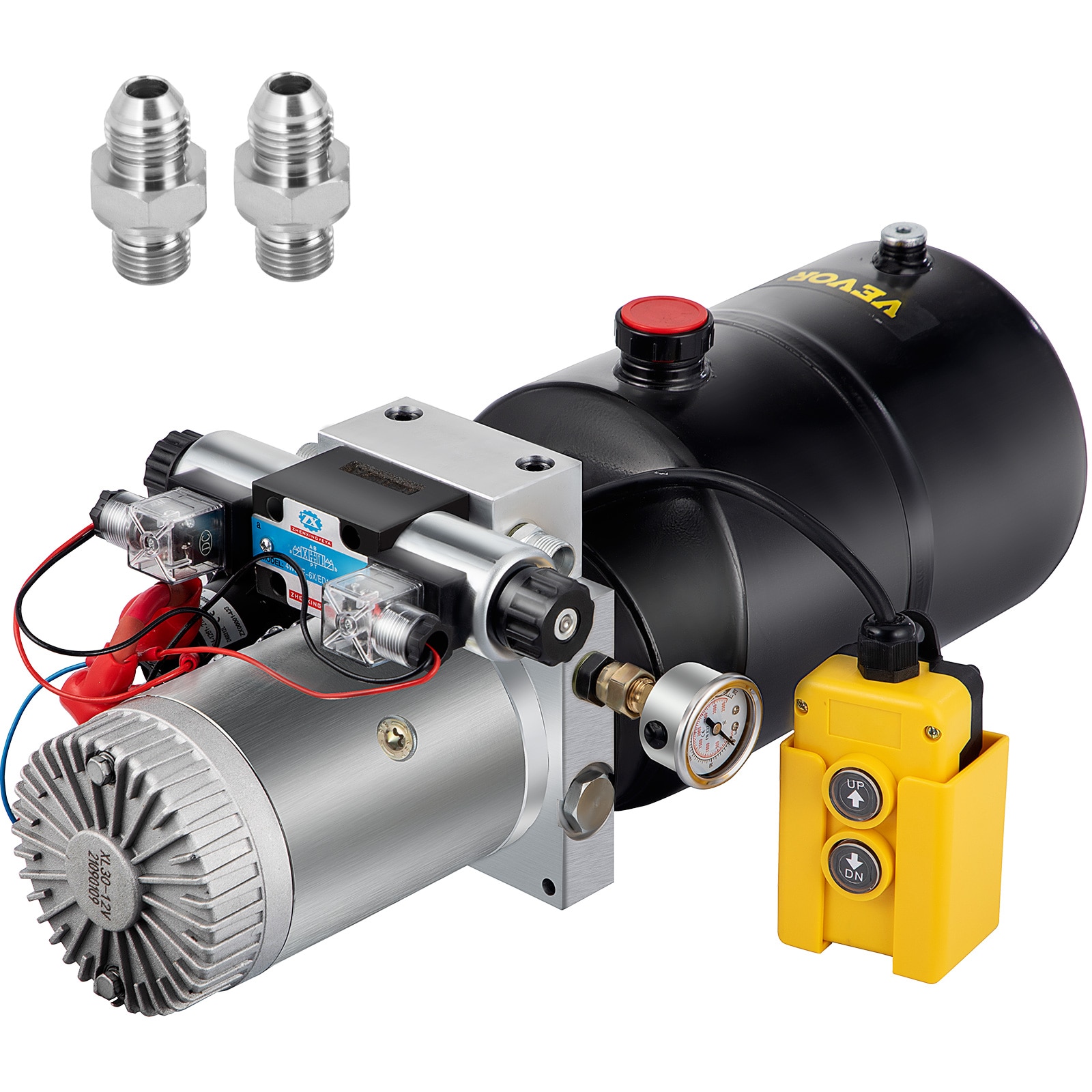

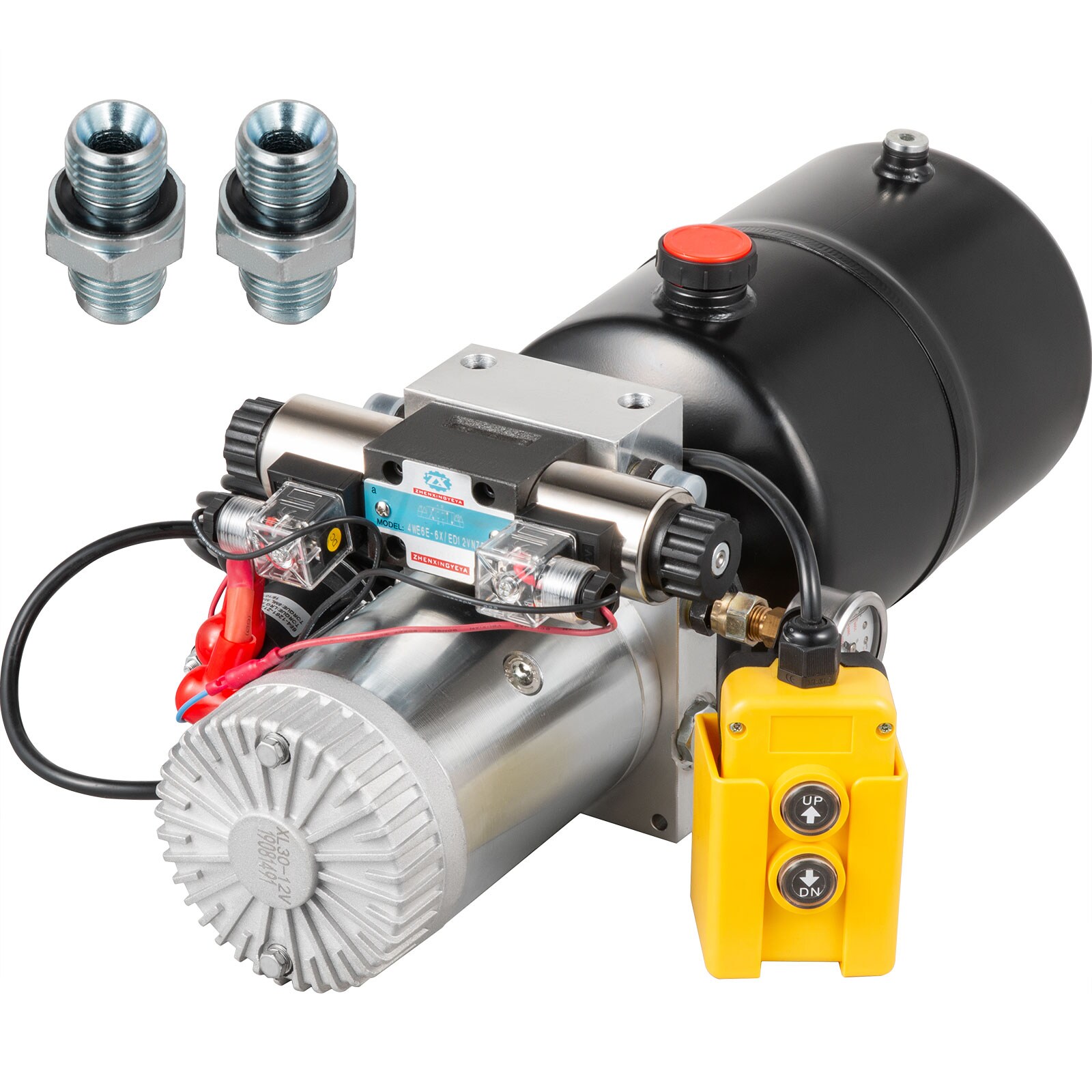

This hydraulic electric pump is made of sturdy metal, equipped with an overflow valve, a hand-held remote control and 2 additional SAE#6 connector
Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir; The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down;
Easy to Use: This hydraulic power unit has been fully assembled; The wiring is simple with operating instructions; The hydraulic gauge gives clear value of the pressure and the 15ft remote allows you to control in a long distance; In addition, we offer you 2 additional SAE#6 connectors for replacement;

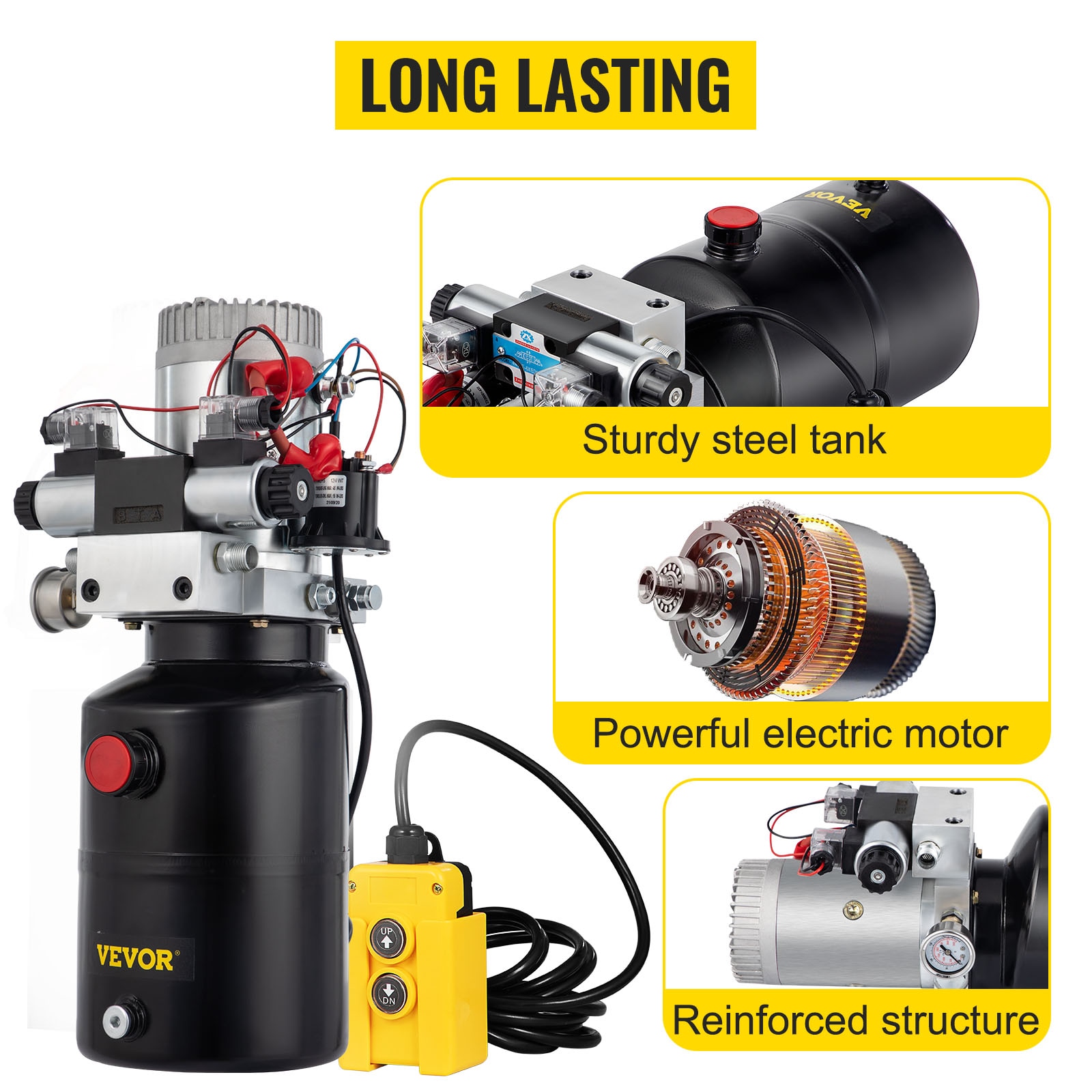

Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged; As a power unit, this is a perfect replacement pump for remote hydraulic systems; Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable;
Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time;

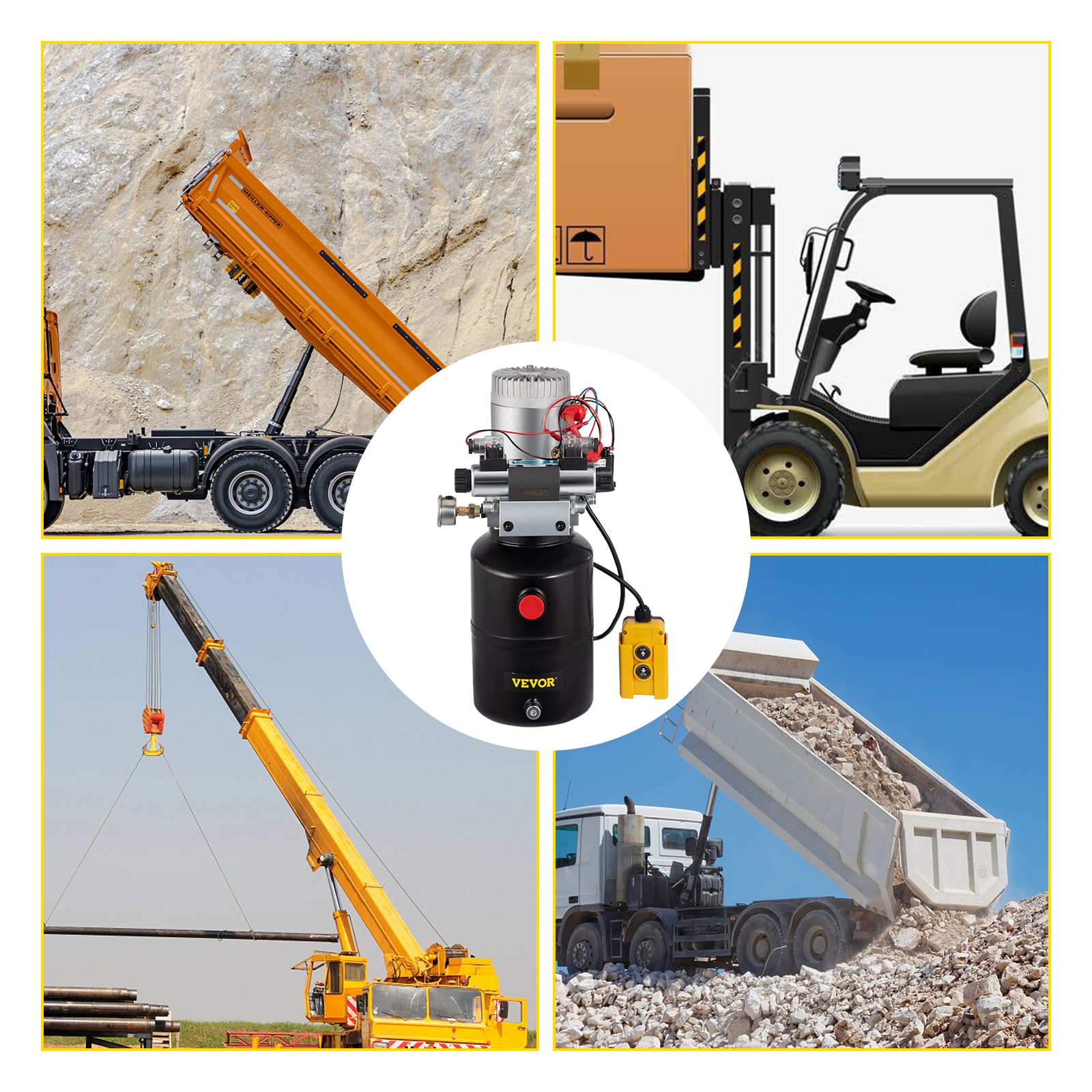

Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms; It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems;
Specification: Model: 6QDAMHP; Tank Material: Metal; Tank Capacity: 6L/ 6 qt/ 1.5 Gal; Flow: 2.0 GPM; Max; Relief Valve Setting A Port: 3200 PSI; Max; Relief Valve Setting B Port: 1500 PSI; Rated Speed: 2850R/MIN; Voltage: DC12V; Power: 1.6KW (Rated), 3.0KW (Max); Duty: 3 Min; Traffic: 1.1 cc/r; Rotation: Clockwise; Connector: SAE # 6; Mount Position: Horizontal; Control: Solenoid and Handheld Pendant; Pendant Control Length: 15ft/ 4.5 m
