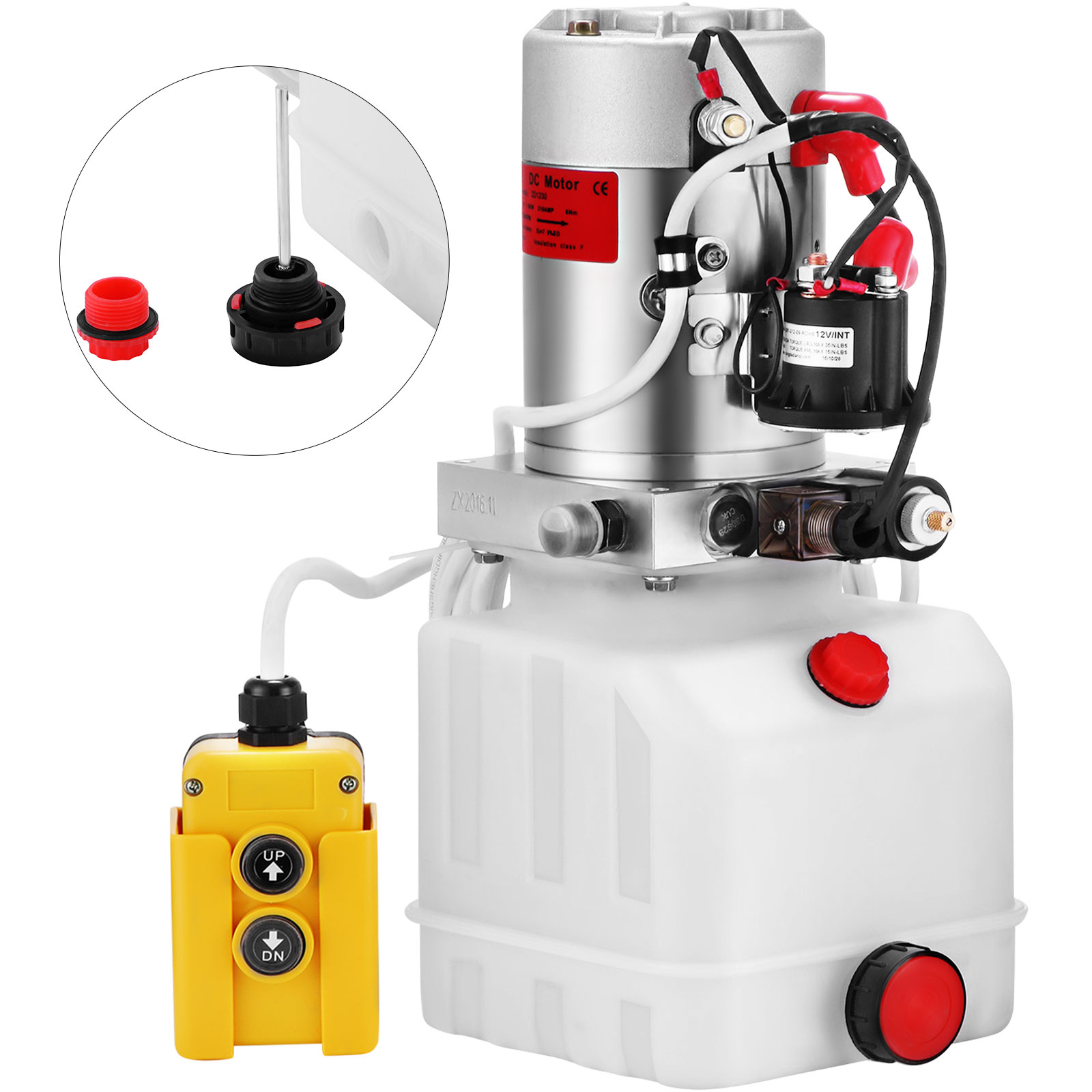

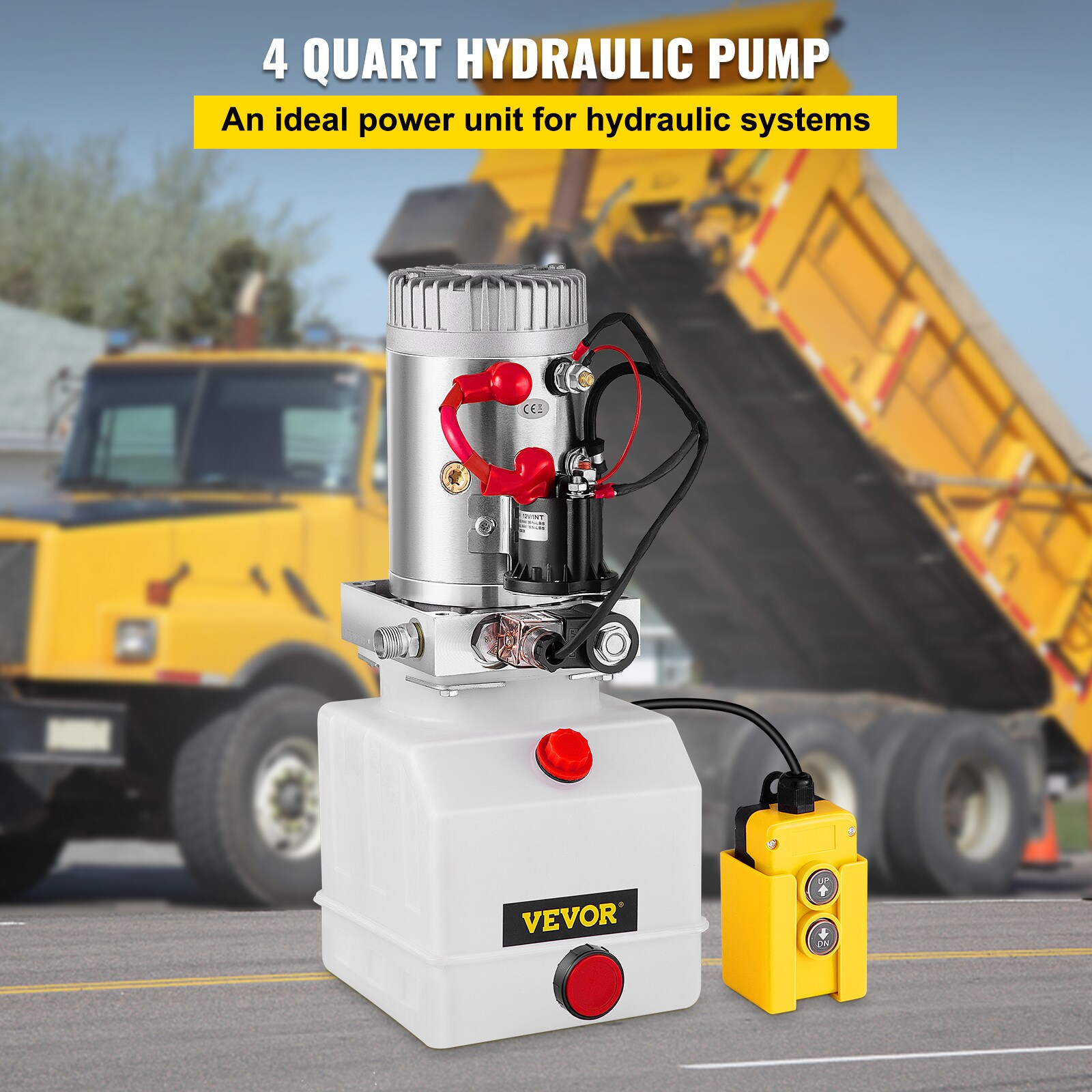

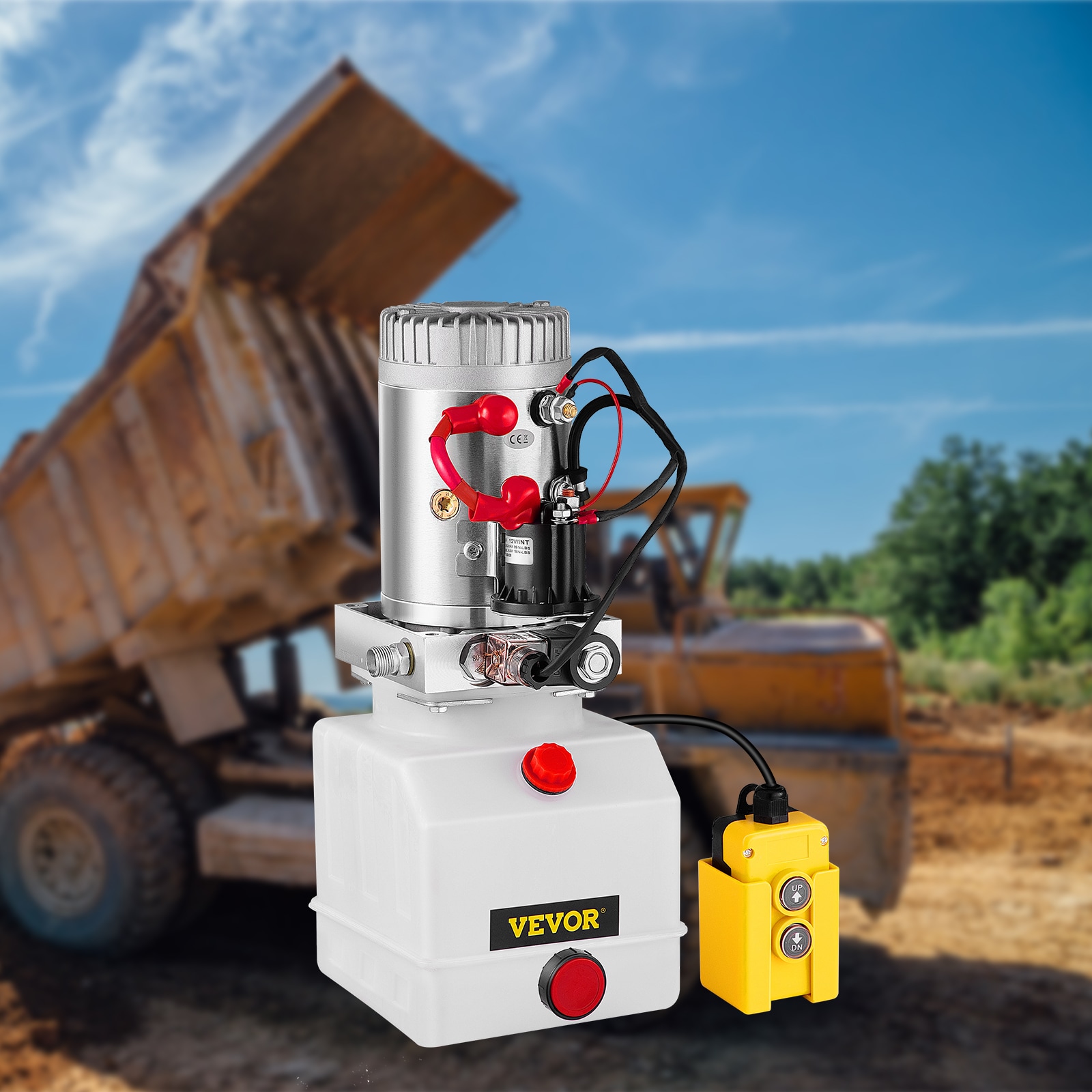

4 Quart Single Acting Hydraulic Pump: This hydraulic pump is a single-acting power unit for power up and gravity down; It has a 4-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc;; [Package Content] 1 × 4 Quart Single Acting Hydraulic Pump; 1 × English Manual; Several related accessories (including connectors)

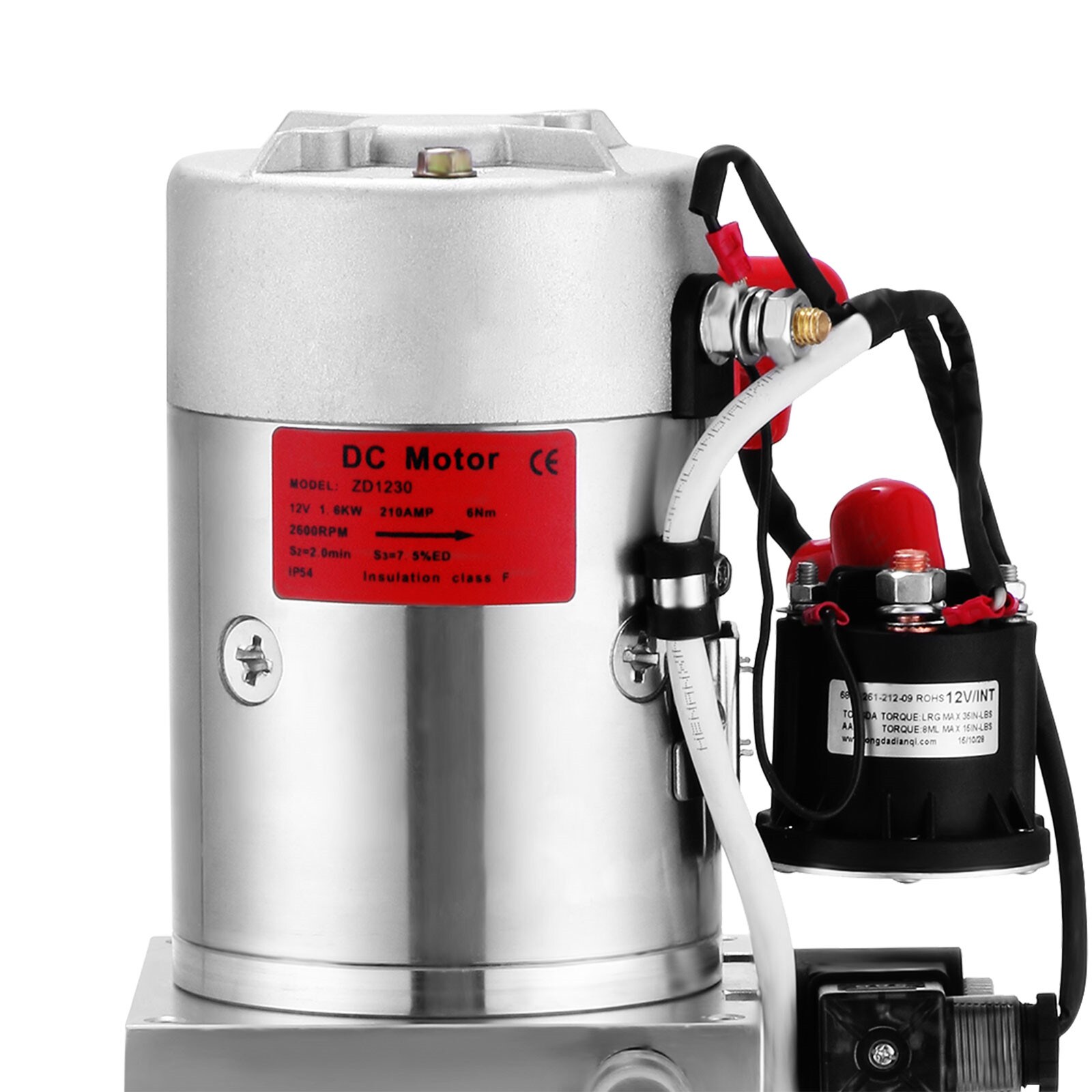

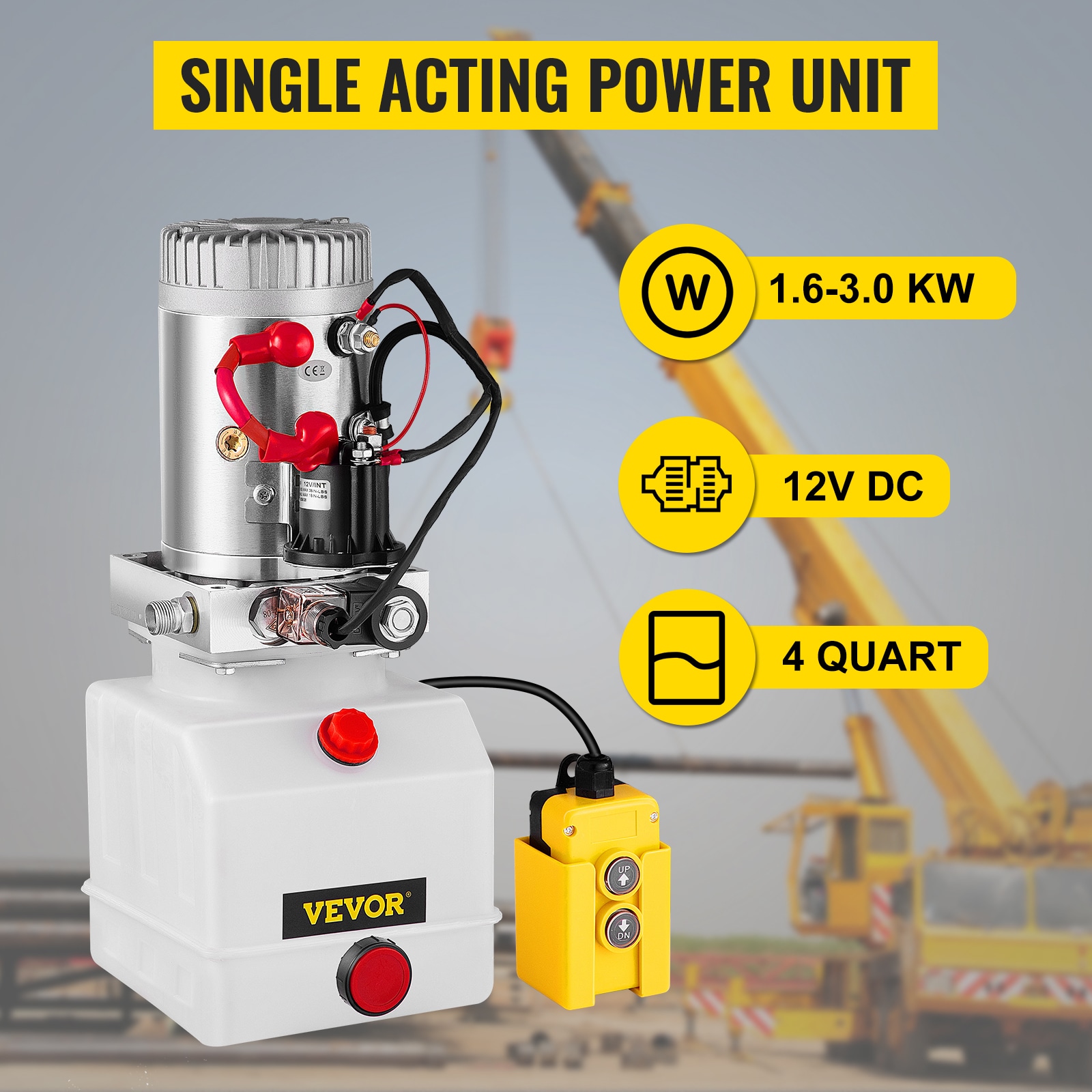

Single-Acting Power Unit with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir
This Hydraulic Pump has been fully assembled, the wiring is simple and comes with operating instructions
The dump trailer pump is made of sturdy plastic, equipped with a relief valve, a hand-held remote control and 1 additional SAE#6 connector
Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir; The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down;
Easy to Use: This 12V hydraulic power unit has been fully assembled; The wiring is simple and comes with operating instructions; We offer you one 15ft remote for long-distance control and one additional SAE#6 connector for replacement;
Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged; As a power unit, this is a perfect replacement pump for remote hydraulic systems; Equipped with a relief valve, it avoids overpressure, safer and reliable;
Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time;
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms; It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems;
Specification: Material of tank: Plastic; Displacement of hydraulic pump: 0.562-4.350GPM; Relief valve pressure: 22 MPA (3200 PSI Max; Relief Setting For Increased Lifting Power on A port); Rated speed: 2850R/MIN; Motor power: 1.6-3KW; Motor voltage: DC12V; Fuel tank: 4L; Single acting Power-Up/Gravity Down; 1500 PS Max Relief Setting on B port; 4 Quart Translucent Reservoir; SAE # 6 Port, Horizontal mount; Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid
