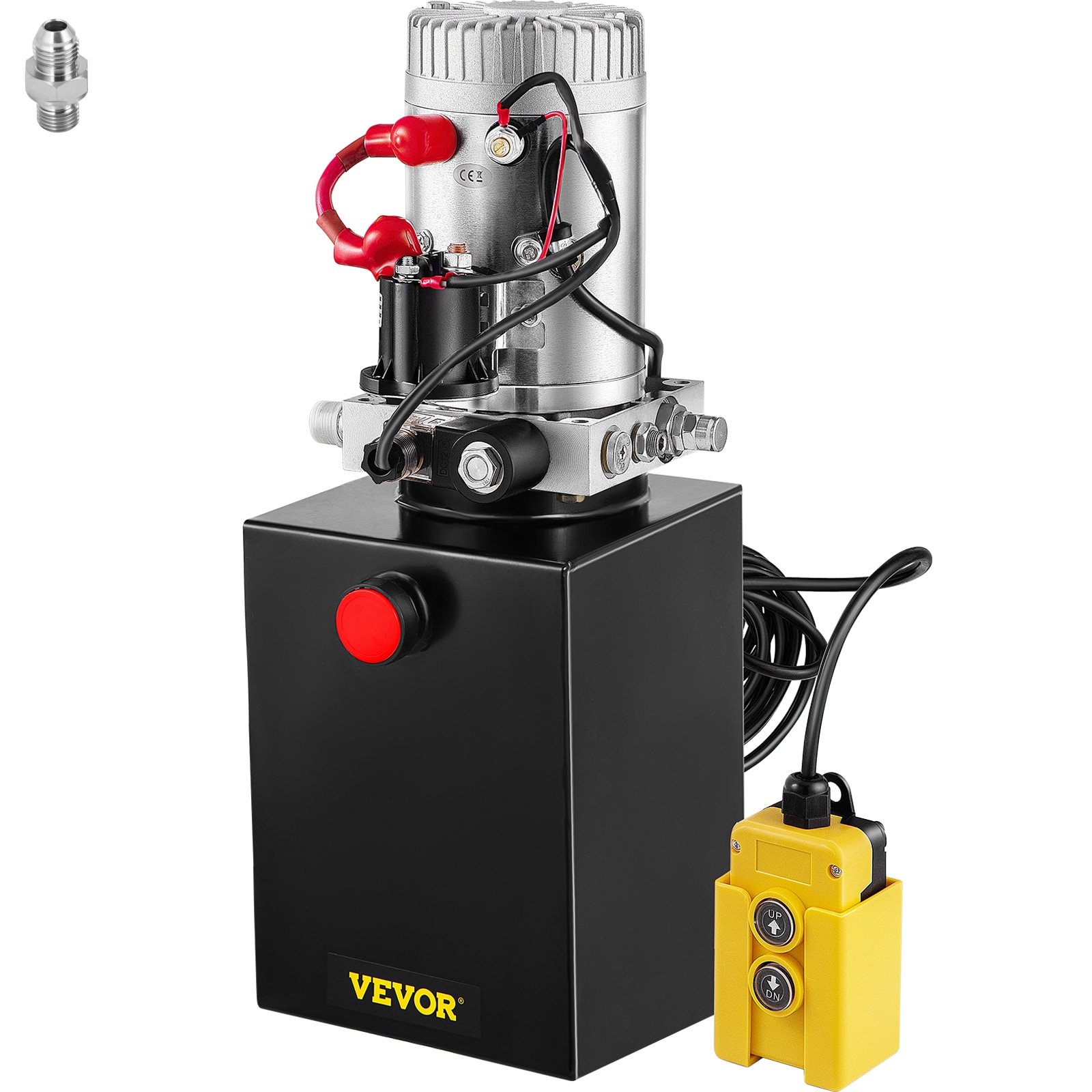

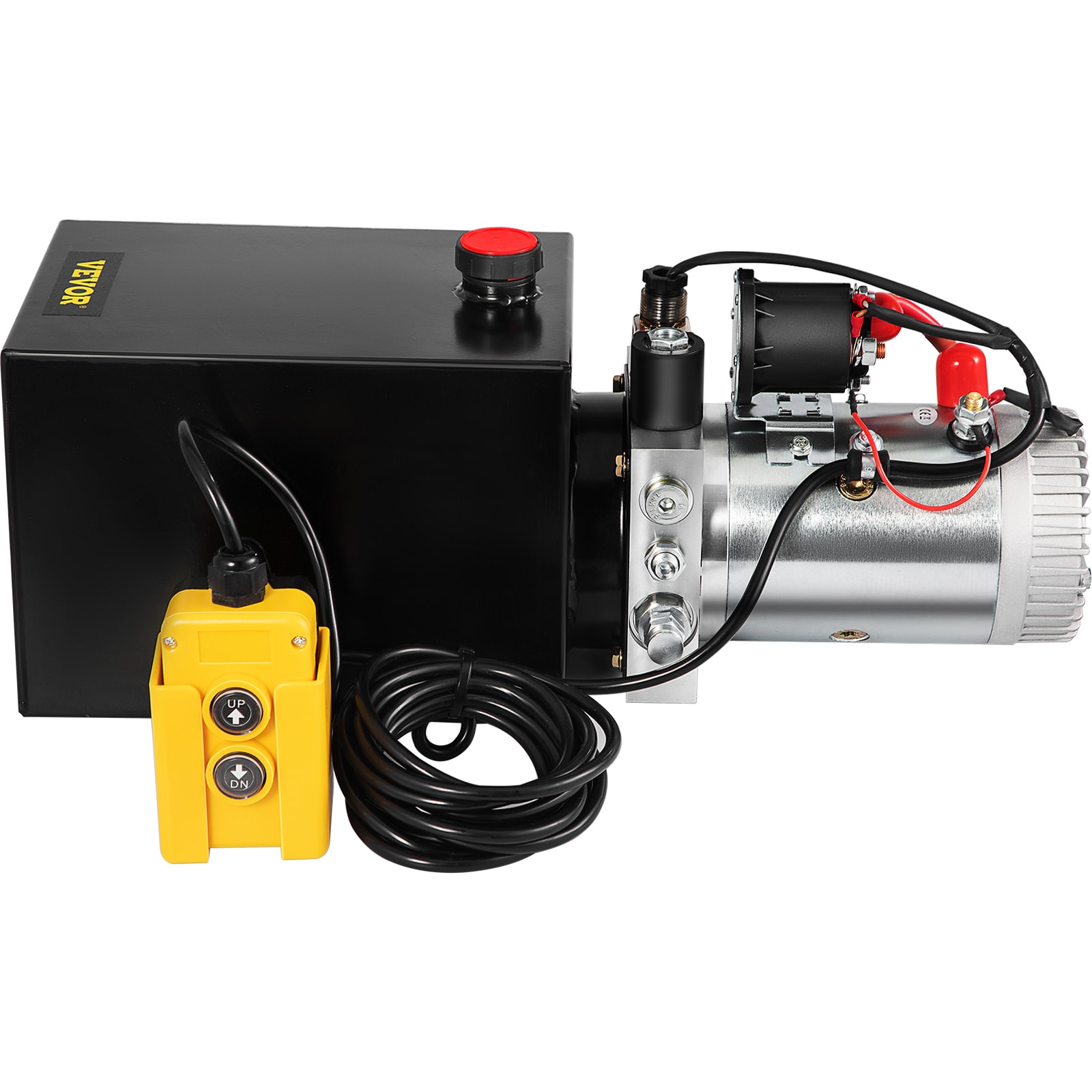

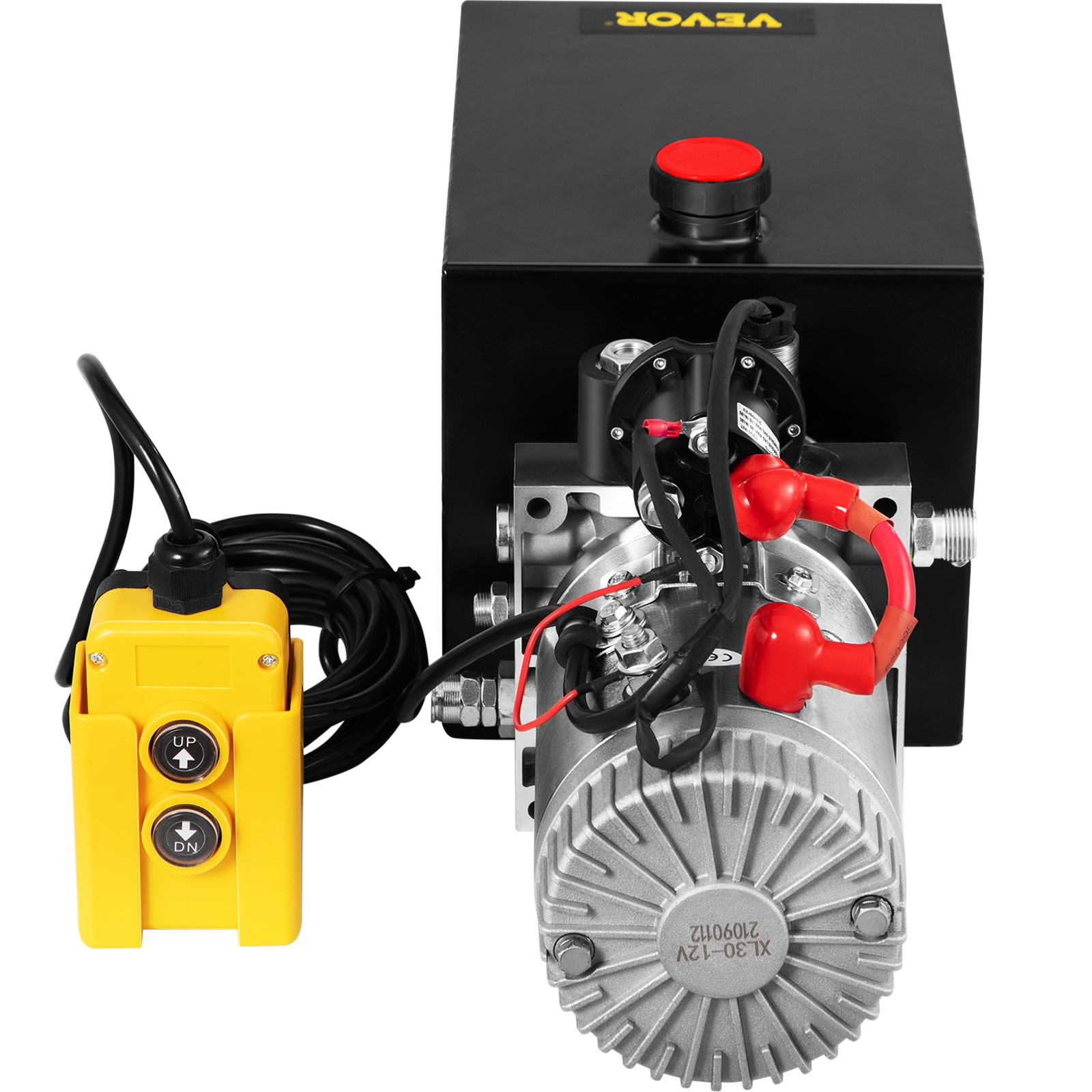

6 Quart Single Acting Hydraulic Pump: This hydraulic pump is a single-acting power unit for power up and gravity down; It has a 6-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc;; [Package Content] 1 x 6 Quart Double Acting Hydraulic Pump; 1 x English Manual; 1 x SAE # 6 Connectors
Single-Acting Power Unit with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir
This Hydraulic Pump has been fully assembled, the wiring is simple and comes with operating instructions
The dump trailer pump is made of sturdy metal, equipped with a relief valve, a hand-held remote control and 1 additional SAE#6 connector
Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir; The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down;

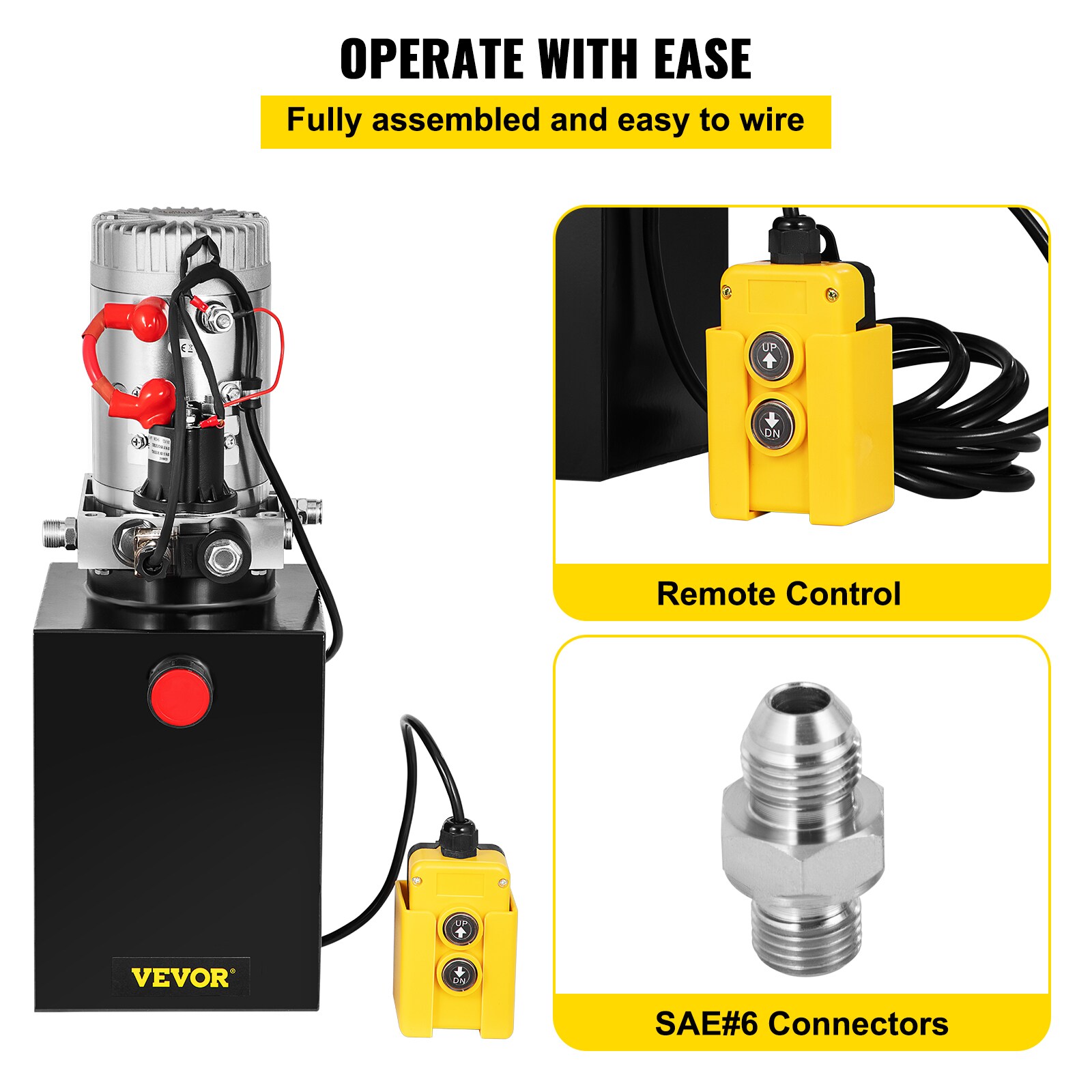

Easy to Use: This 12V hydraulic power unit has been fully assembled in advance; The wiring is simple and comes with operating instructions; One additional SAE#6 connector and one 15 ft remote control are included in the package;

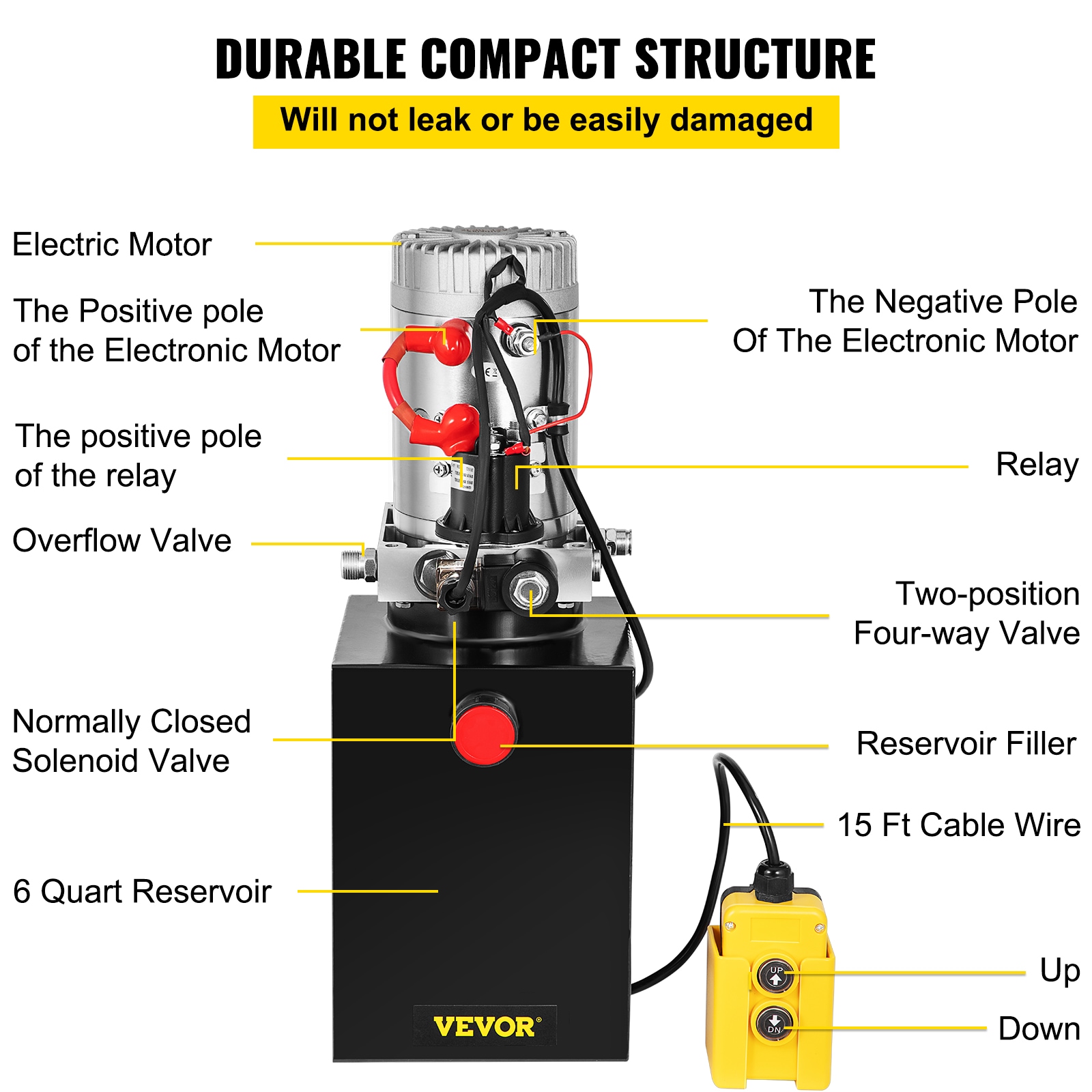

Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged; As a power unit, this is a perfect replacement pump for remote hydraulic systems; Equipped with a relief valve, it can avoid overpressure, safer and reliable;

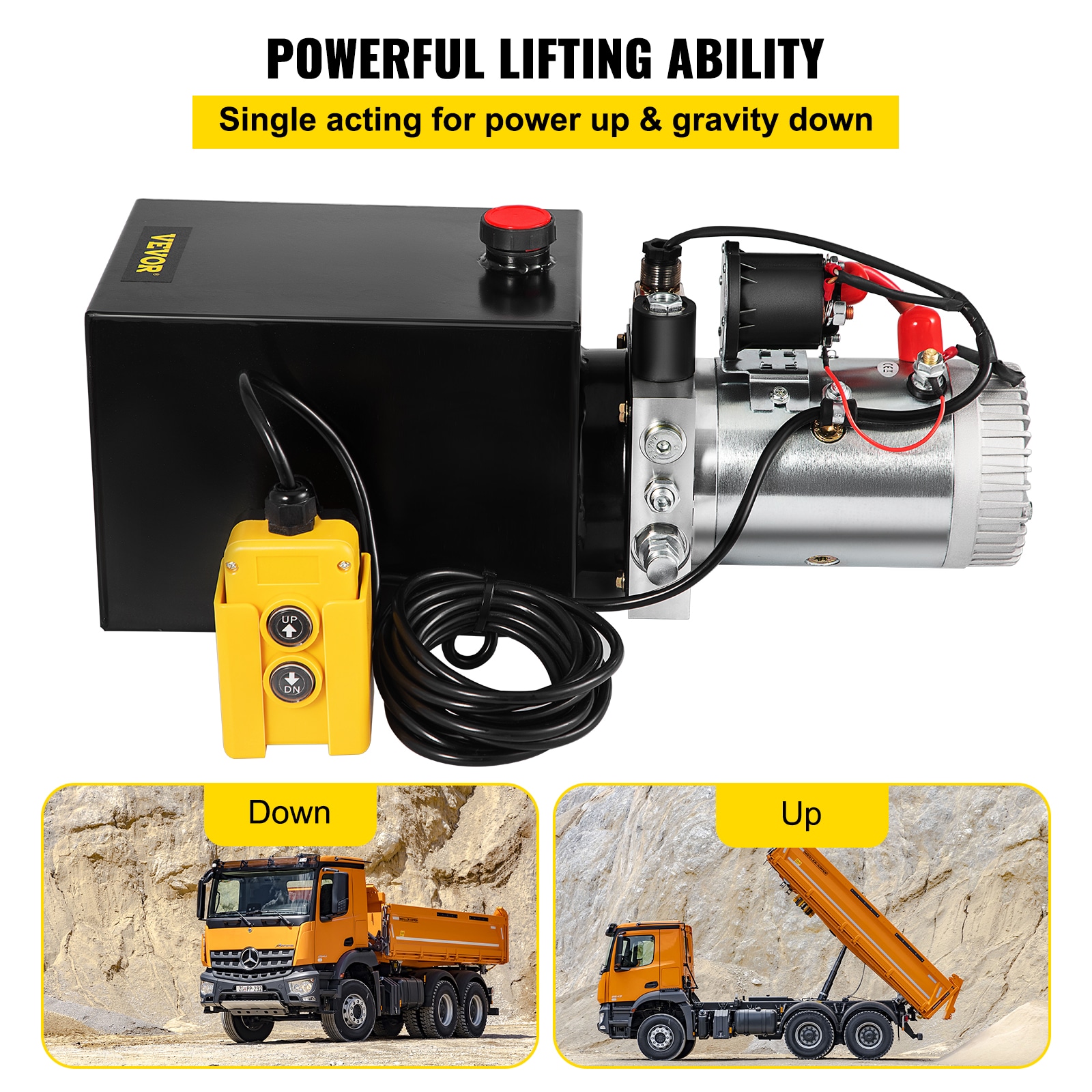

Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time;
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms; It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems;
Specification: Mode: Single-Acting Power-Up/ Gravity-Down; Tank Material: Metal; Tank Capacity: 6L/ 6Quart/ 1.5 Gal; Flow: 2.0 GPM; Max; Relief Valve Setting A Port: 3200 PSI; Max; Relief Valve Setting B Port: 1500 PSI; Rated Speed: 2850R/MIN; Voltage: DC12V; Power: 1.6KW (Rated), 3.0KW (Max); Duty: 3 Min; Traffic: 1.1 cc/r; Rotation: Clockwise; Connector: SAE # 6; Mount Position: Horizontal/ Vertical; Control: Solenoid and Handheld Pendant; Pendant Control Length: 15ft/ 4.5 m
