Made of high-strength #45 material, which gives excellent hardness and anti-rust properties
Adopting high-precision processing technology to ensure structural stability and processing accuracy
Featuring adjustable jaws for enhanced flexibility, clamping range can be easily adjusted using a T-handle wrench
High-Strength #45 Material: To meet the demanding requirements of production environments, we utilize #45 material that has undergone quenching and hardening techniques; This imparts exceptional hardness and rust-resistant properties, ensuring outstanding performance and reliability for both small and large workpieces held by the chuck;

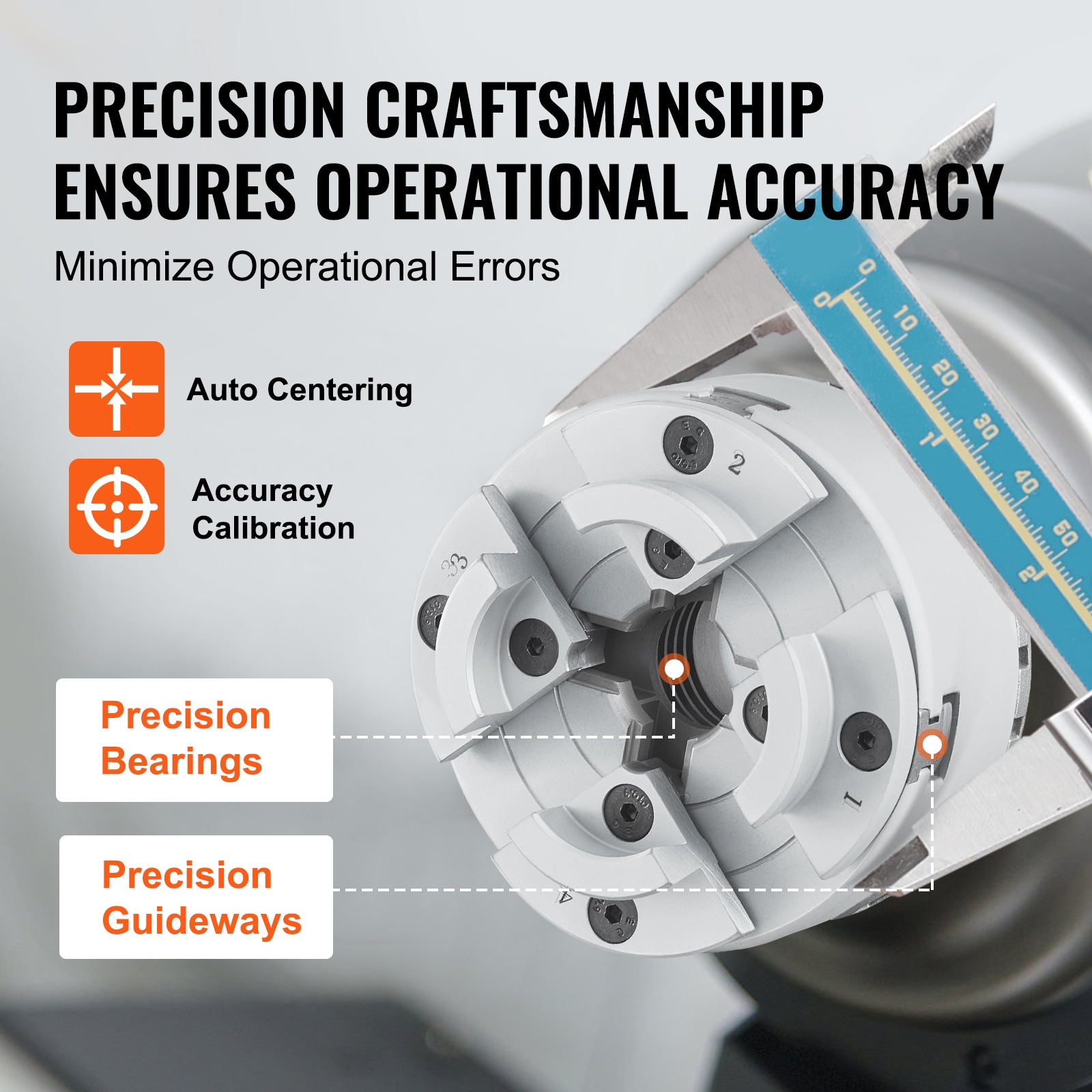

High Precision: In the manufacturing of our chucks, we employ high-precision machining processes to ensure structural stability and machining accuracy; The lathe components feature a refined bevel gear and three small gears, aiding in precise machining progress; Bearing tolerance is less than 0.3 mm / 0.01 inch, guaranteeing excellent machining results;

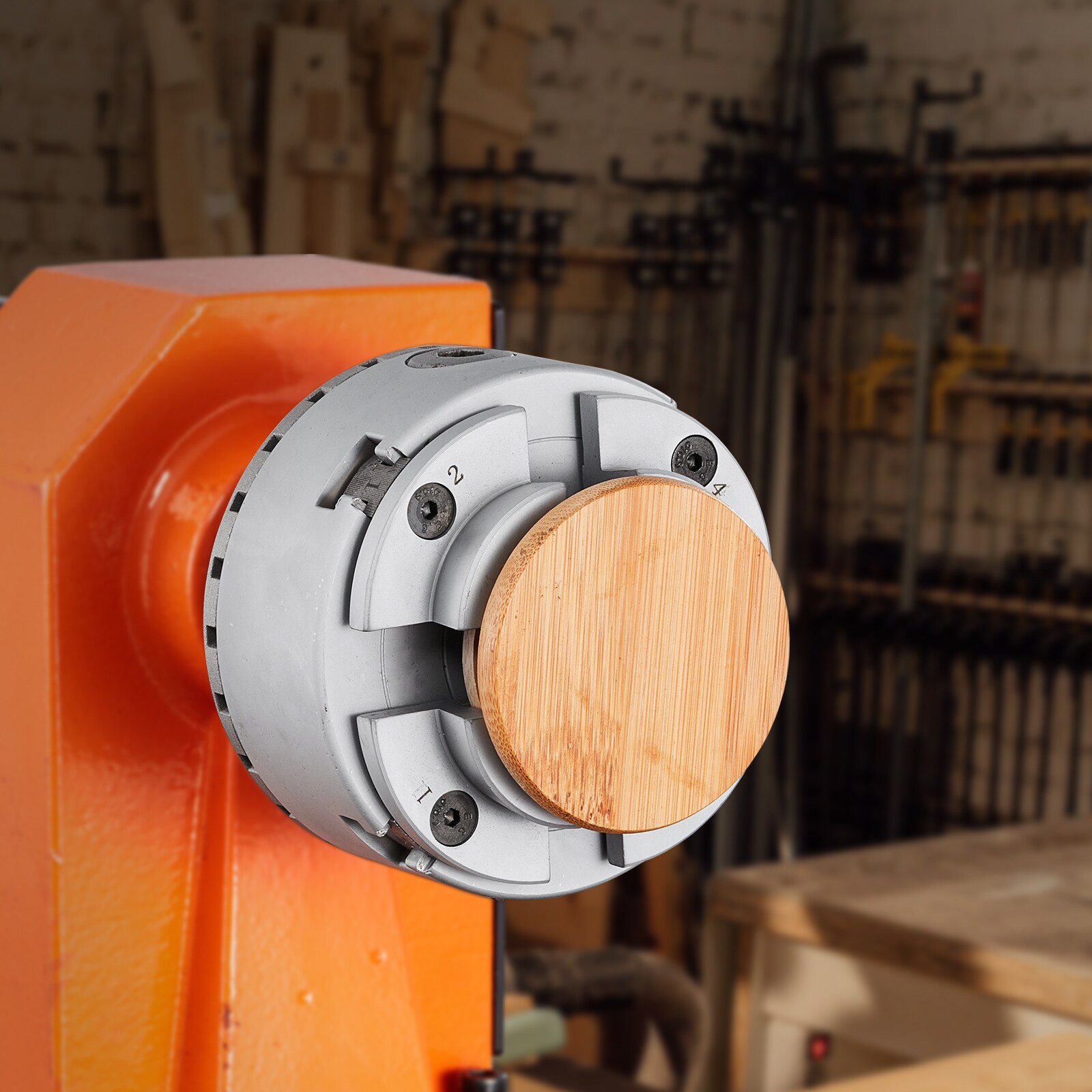

Versatile Single Jaw: Our chuck features an adjustable jaw design, providing enhanced flexibility; Operators can easily adjust the clamping range using a T-handle wrench, accommodating workpiece sizes and shapes such as bowls, plates, vases, cups, and more with precise gripping and securing;

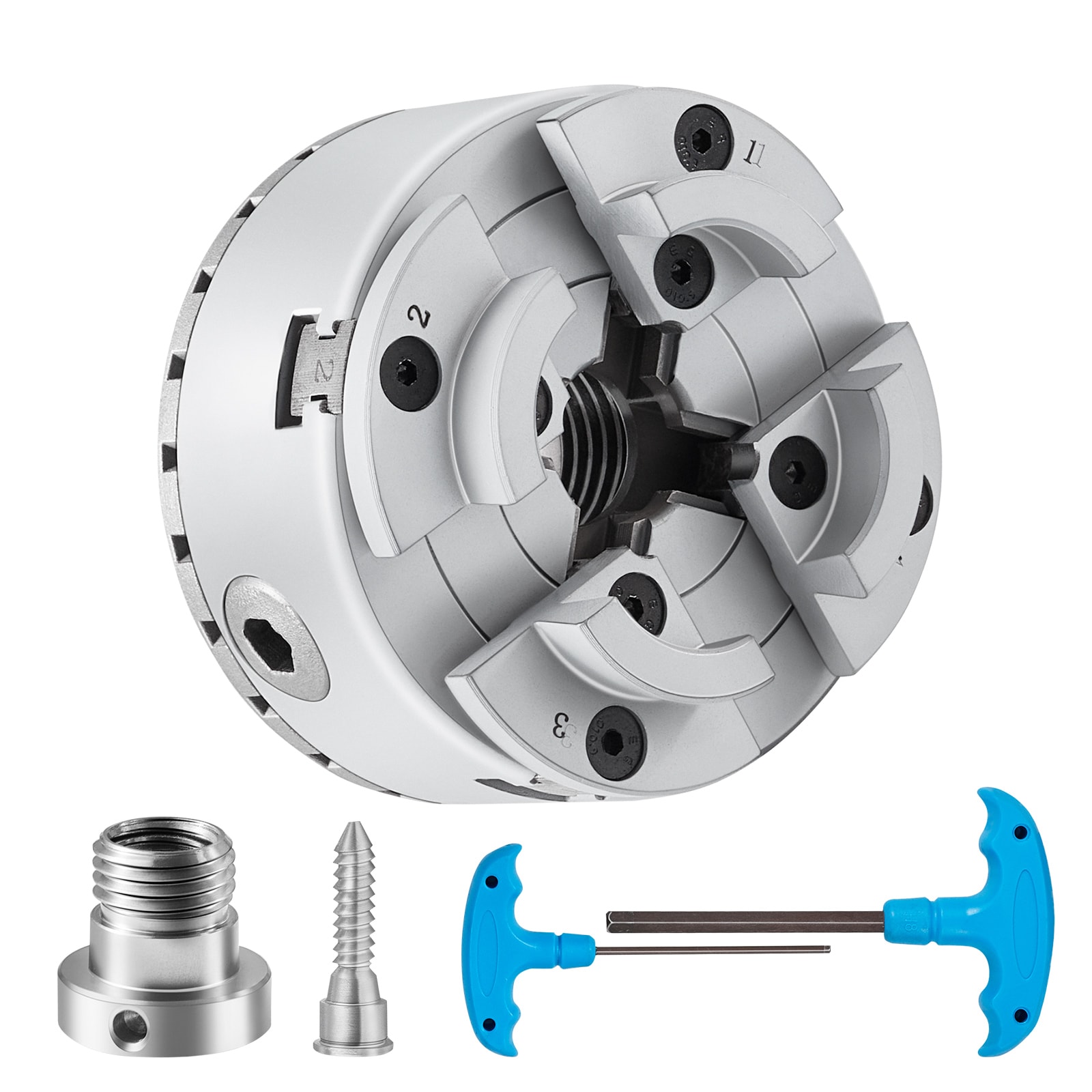

Simple & User-Friendly: The chuck boasts a streamlined design, striking the optimal balance between functionality and reliability; By eliminating unnecessary complex components and mechanical structures, the chuck's design becomes simple and compact; Installation and removal only require screws and handles, and clamping and spreading are achieved by rotating the T-handle wrench;
Wide Range of Applications: Whether you're involved in woodworking, drilling, grinding, or other fields, the chuck's broad adaptability meets your requirements; By using our lathe chuck, you can enhance processing efficiency, increase operational flexibility, and achieve accurate and stable machining outcomes; Whether for personal use or industrial production, this lathe chuck delivers outstanding performance and reliability to cater to your needs;

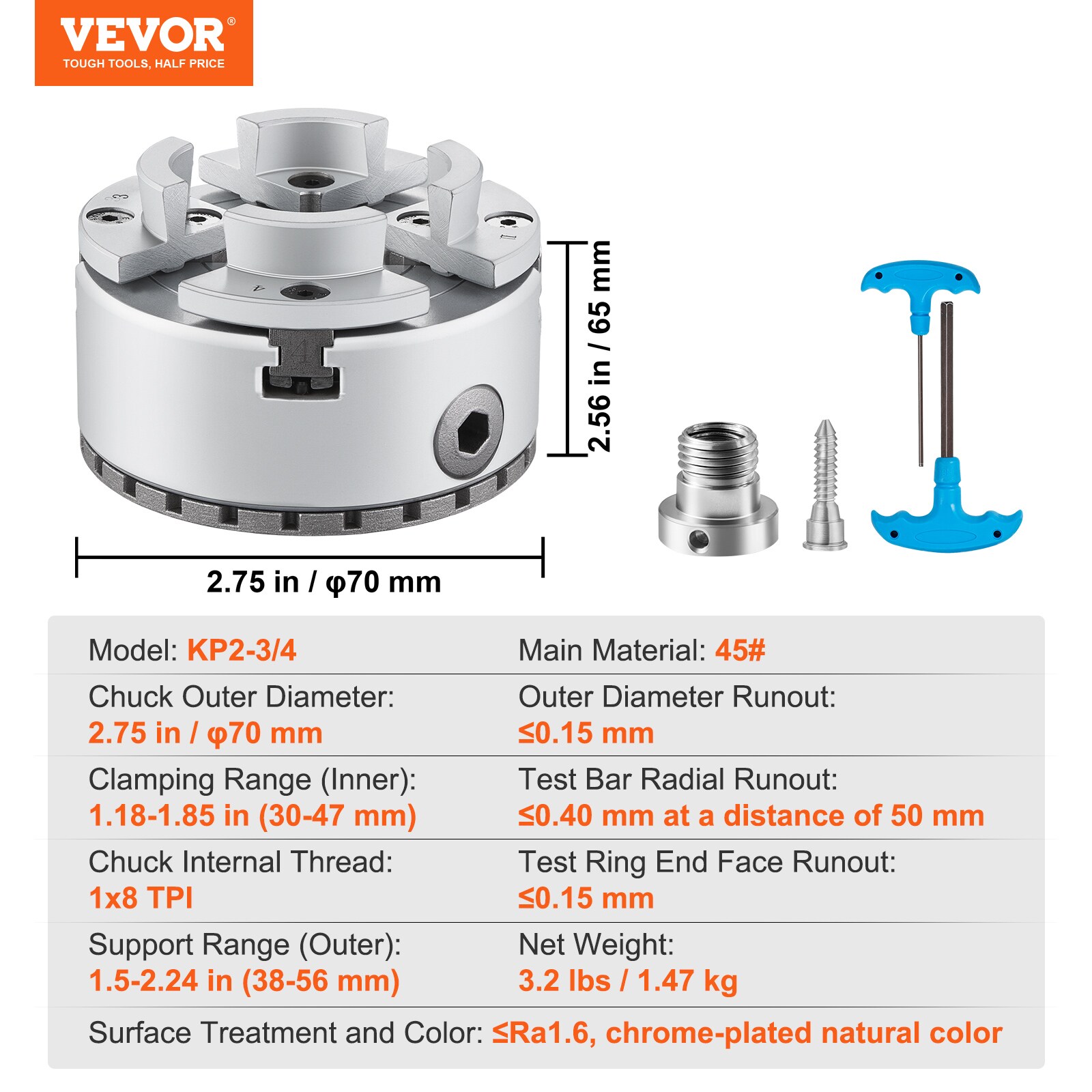

Specification: Model: KP2-3/4; Chuck Outer Diameter: 2.75 inches / 70 mm; Clamping Range (Inner): 1.18-1.85 inches (30-47 mm); Chuck Internal Thread: 1*8TPI; Support Range (Outer): 1.5-2.24 inches (38-56 mm); Outer Diameter Runout: less than 0.15 mm; Test Bar Radial Runout: less than 0.40 mm at a distance of 50 mm; Test Ring End Face Runout: less than 0.15 mm; Surface Treatment and Color: less than Ra1.6, chrome-plated natural color; Main Material: 45#; Net Weight: 3.2 pounds / 1.47 kg; Product Dimensions: 70 x 65 mm
