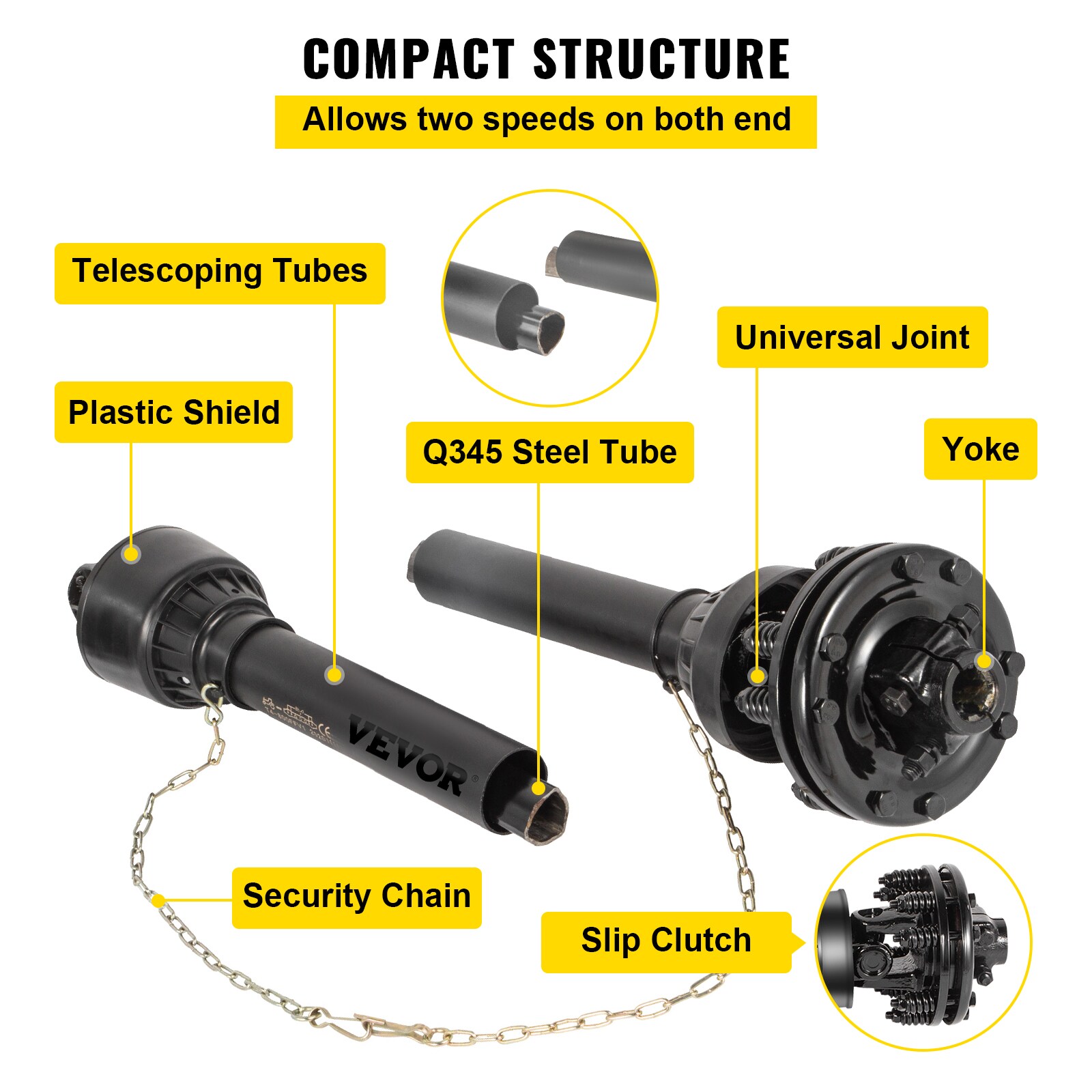

Sturdy and Durable: This PTO shaft is a well-forged series5 driveline shaft with CE certification; It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield; The PTO shaft is durable and robust when working with various agricultural machinery;

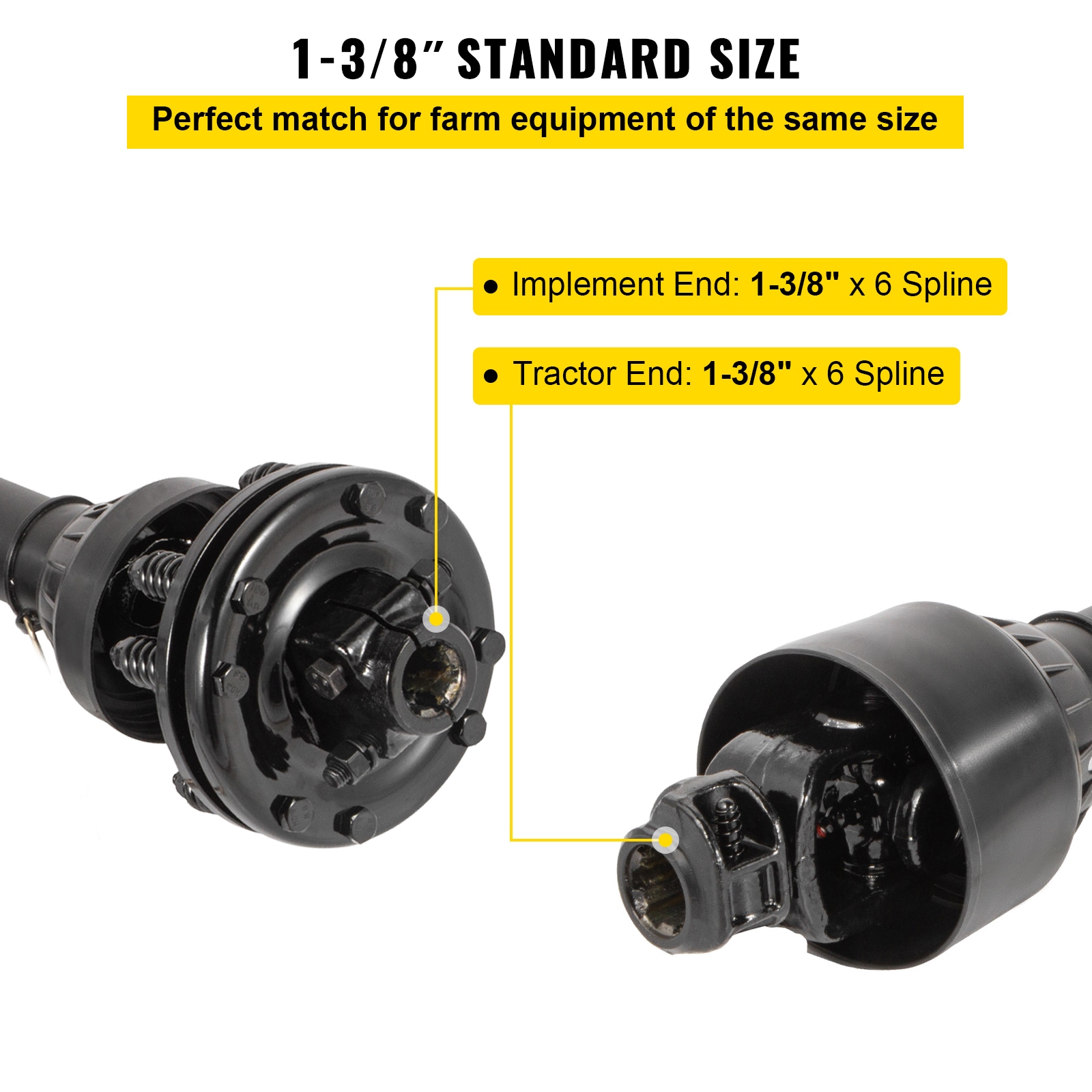

6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline; Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery; Your machinery will be running like never before;

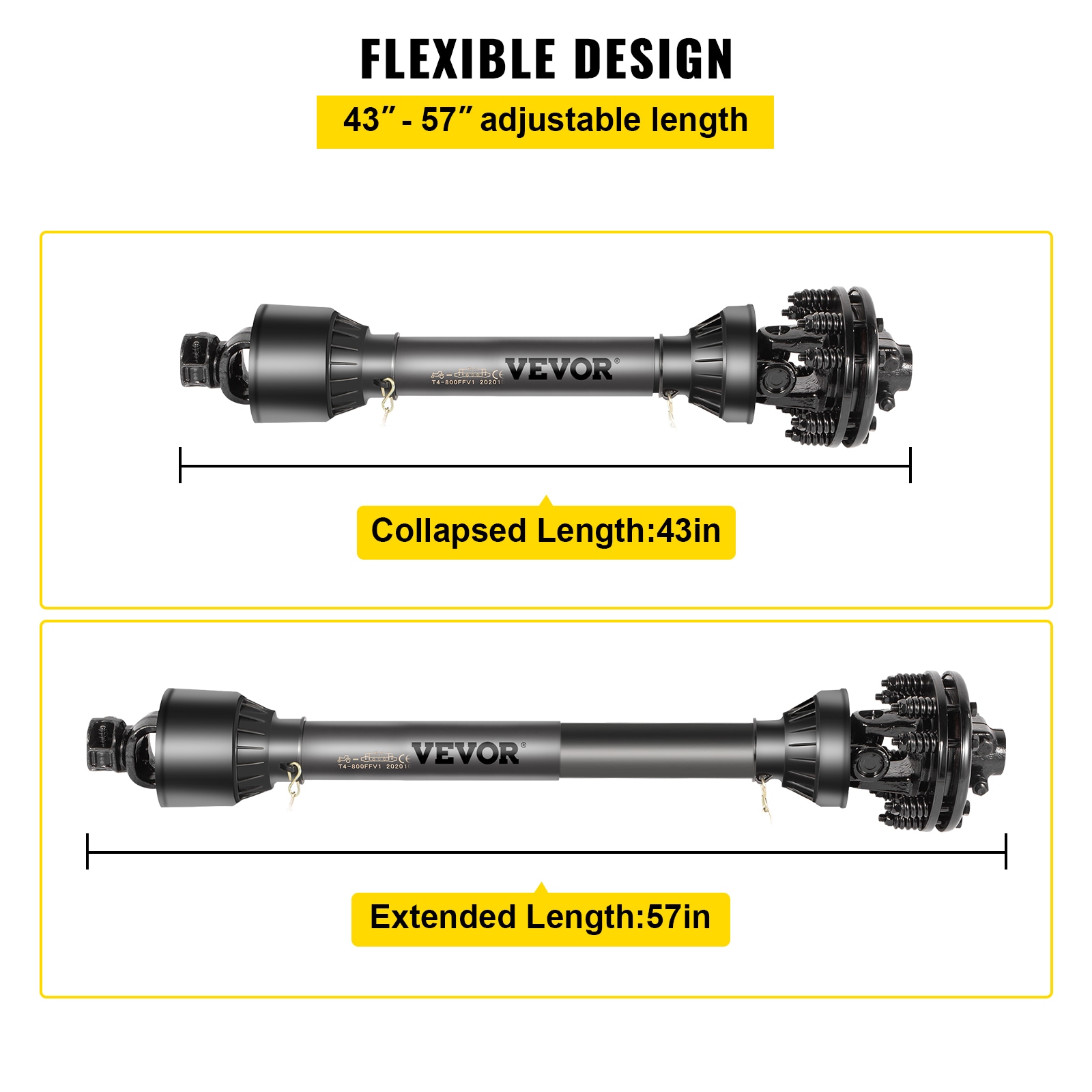

Adjustable Length: Compressed Length: 43"; Extended Overall Length: 57"; The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes; It has 47 Hp, 35 Kw, and 620 Nm torque at 540 rpm, while at 1000 rpm features 77 Hp, 55 Kw, and 500 Nm torque; It allows two sides of the PTO drive line shaft to spin at different speeds;
It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield; The PTO shaft is durable and robust when working with various agricultural machinery;
Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery; Your machinery will be running like never before;
Extended Overall Length: 57"; The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes; It has 47 Hp, 35 Kw, and 620 Nm torque at 540 rpm, while at 1000 rpm features 77 Hp, 55 Kw, and 500 Nm torque; It allows two sides of the PTO drive line shaft to spin at different speeds;
Easy Assembly ＆ Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for direct replacement; The slip clutch works as an extra security line for the PTO shaft to prevent further damage moving up the line; The security chain and plastic shield eliminate potential dangers in the transmission process;

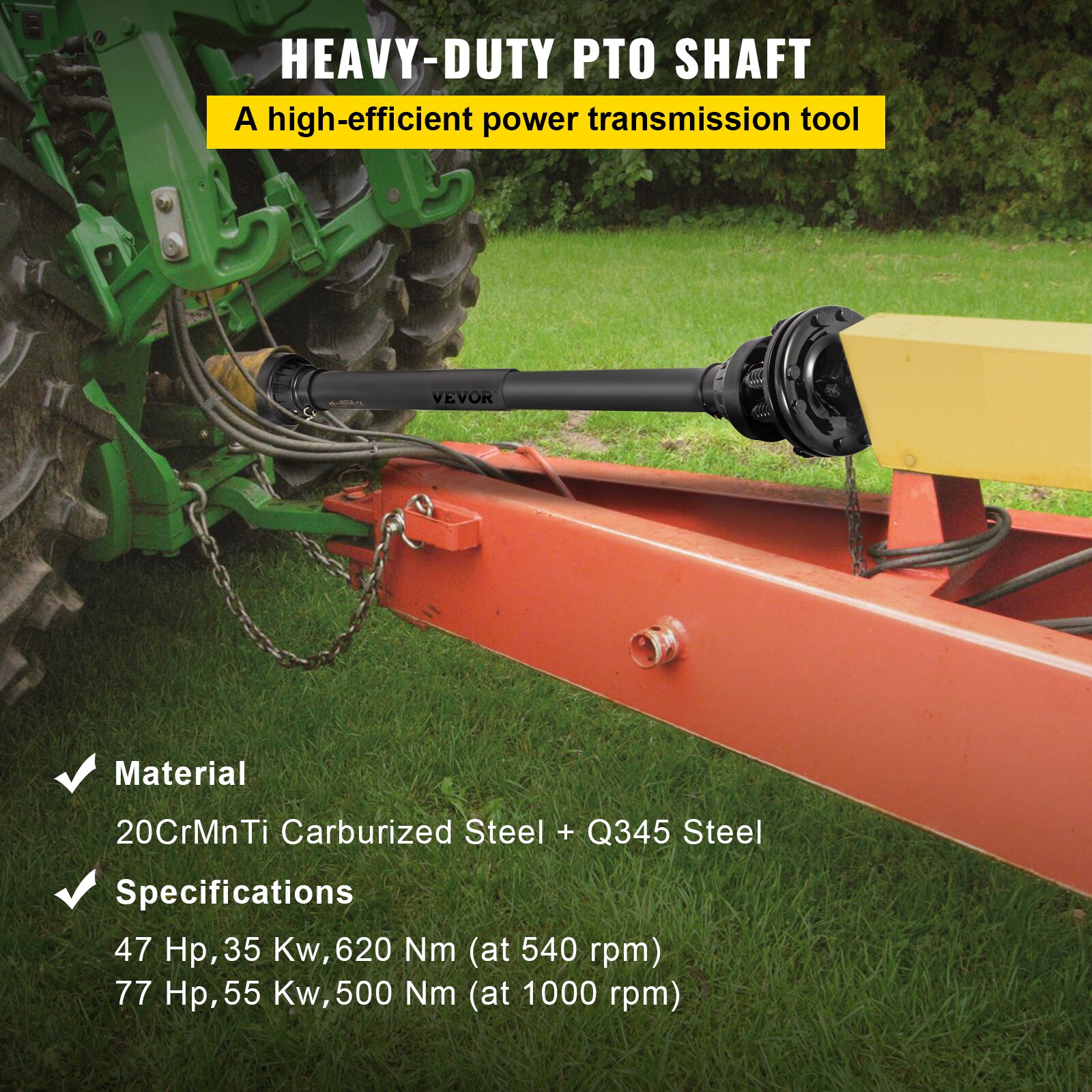

Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment; It is widely used on mowers, rotary tillers, tractors, and more; Control the speed and power of your machine effectively; Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner;

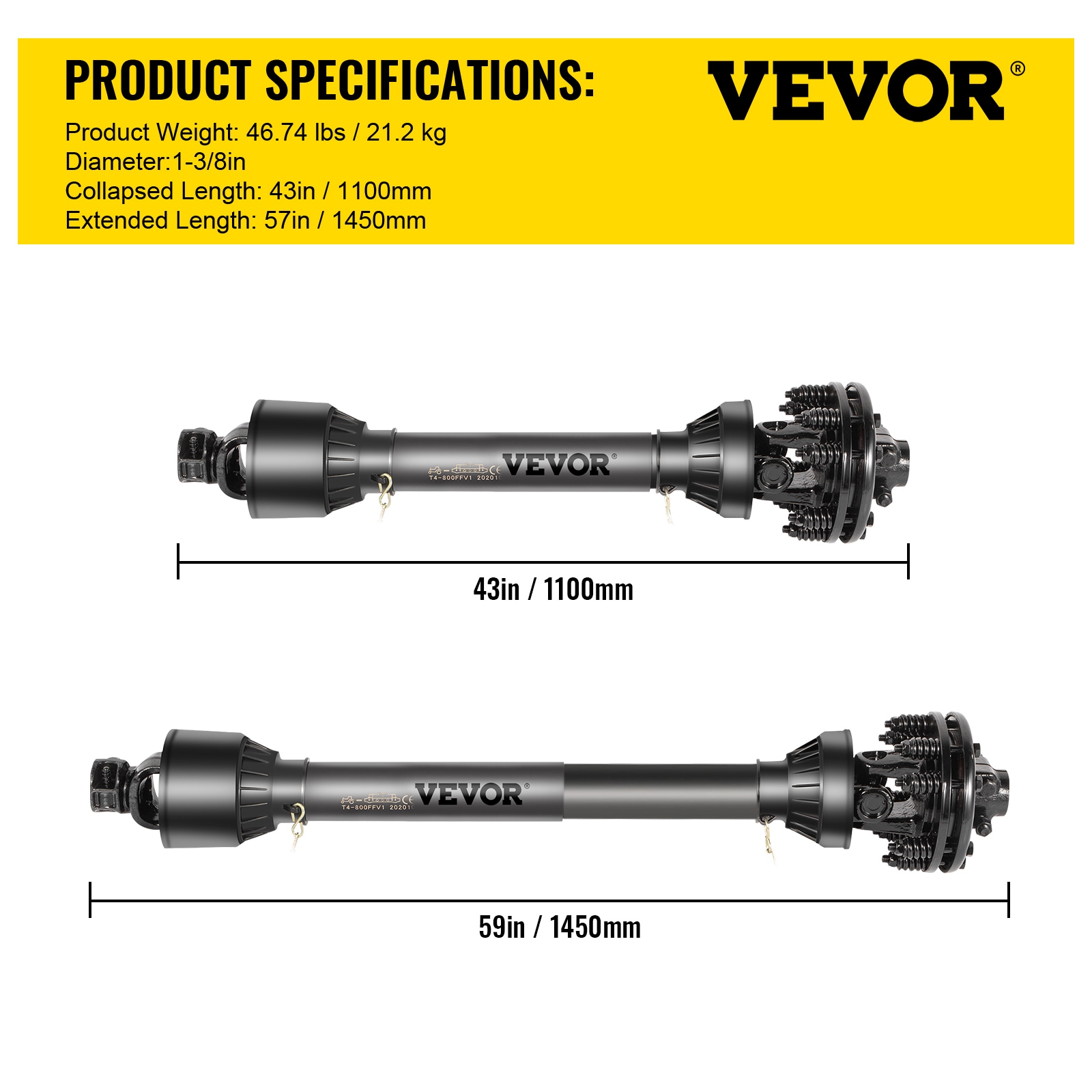

Specification: Model: T5-BⅢP*1100mm*5.05.05B*5FFV1; Part Type: PTO Drive Shaft; Series: 5; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 43" / 1100 mm; Extended Overall Length: 57" / 1450 mm; At 540RPM: 47hp, 35Kw, 620Nm; At 1000RPM: 75hp, 55Kw, 500Nm; Color: Black
