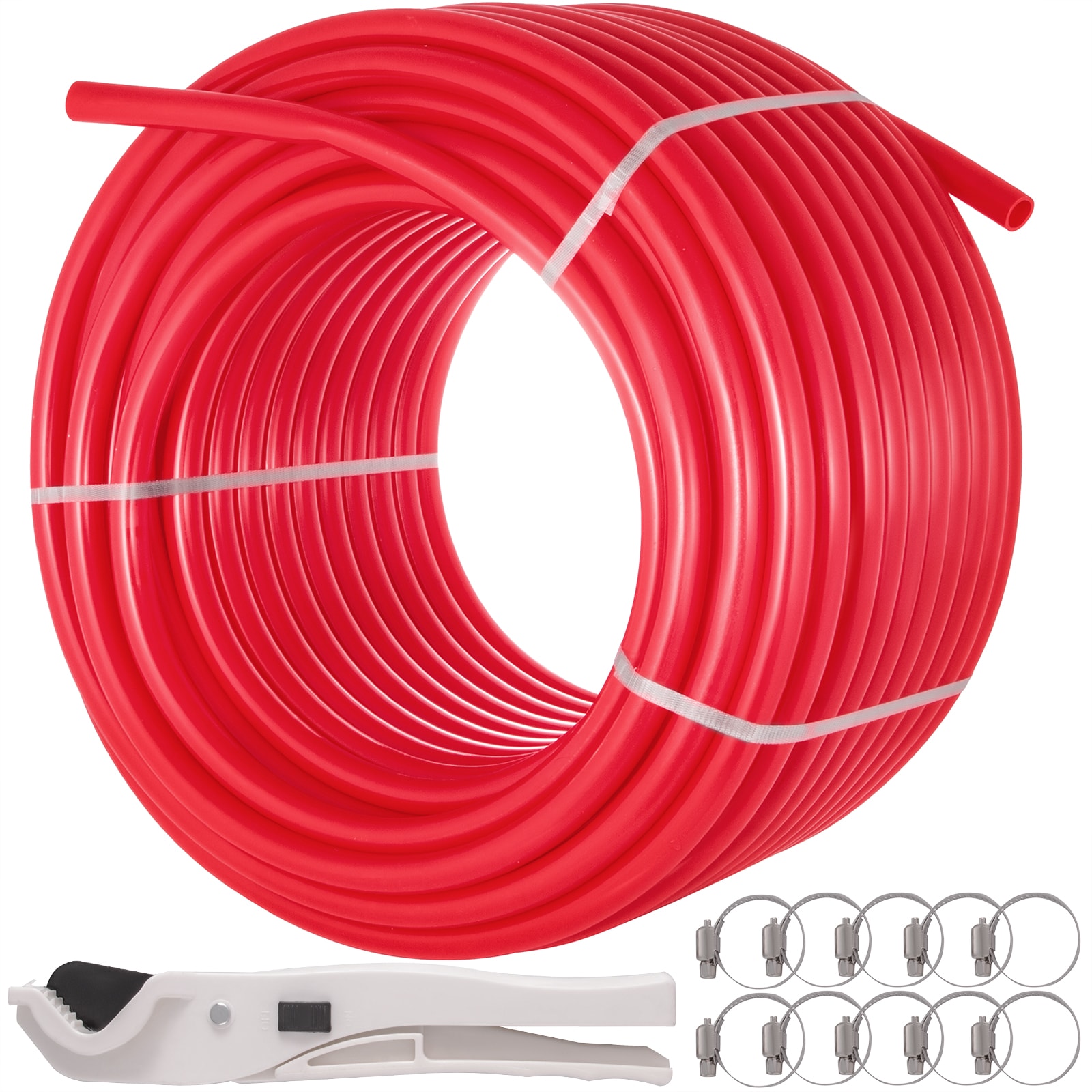

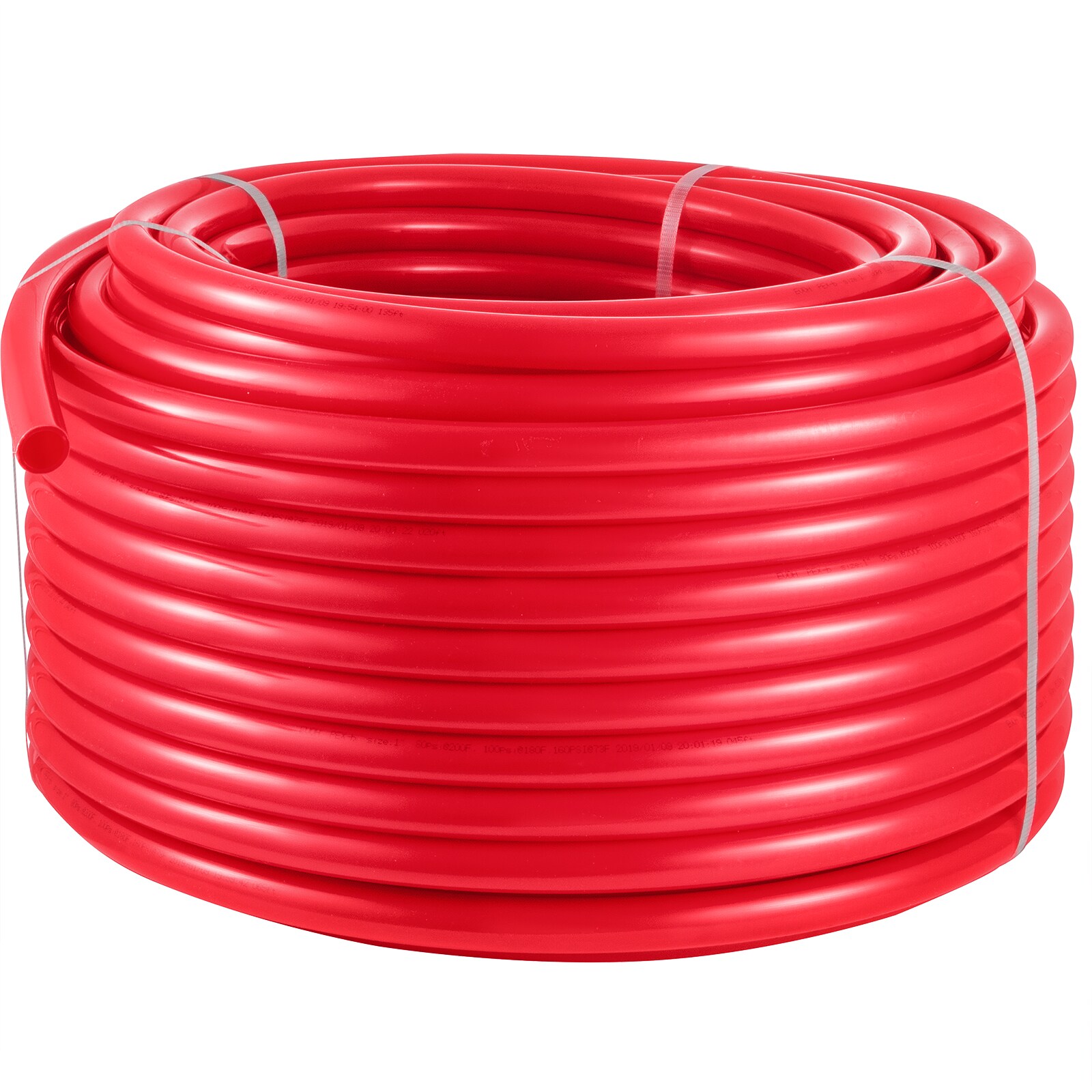

3/4" PEX Tubing: This 500ft pex pipe is commonly used for plumbing, radiant & hydronic systems; It is quick to install, flexible and used on hot/cold potable water lines; EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system;; [Package Content] 1 x 500ft 3/4" Oxygen Barrier PEX Tube

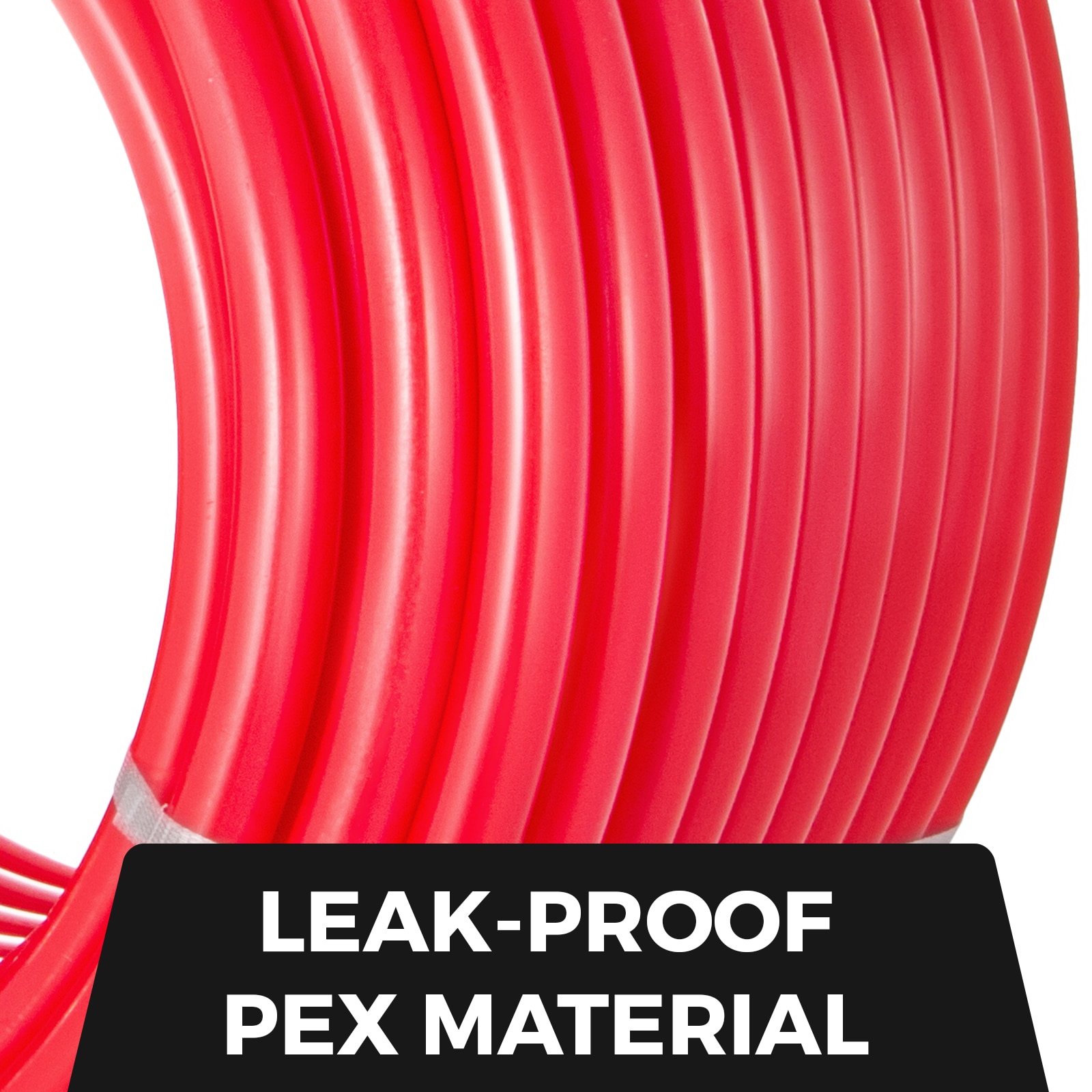

Made of PEX material, non toxic, crack resistant, leak proof, Perfect to at potable water or radiant floor water use
Min 9bending radius, easy to bend for different ground situation
Non barrier PEX tube is used for residential and commercial hot and cold water plumbing applications
RELIABLE MATERIAL- Type: Oxygen-Barrier; Color: Red; Nominal Diameter: 3/4"; Total Length: 500ft; Outside Diameter: 0.86"; Inner Diameter: 0.66"; Tube Thickness: 0.1"; Keep quick & constant hot/cold water flows; Made of PEX material, non-toxic, crack-resistant, leak-proof; Perfect for potable water or radiant floor water use;
ROBUST O2 RESISTANT- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion; Heating system's service time can be greatly lengthened; Smooth inner pipe, anti- scaling quality, increase heat dissipation efficiency & speed for energy-saving;
EFFORTLESS INSTALLATION- Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St; steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings;
PREMIUM FLEXIBILITY- Min;7" bending radius, this radiant floor heating system is easy to bend for different ground situation; Big pressure capacity: 188-217psi at 68 degrees Fahrenheit; 101-108psi at 203 degrees Fahrenheit; Temperature Range: -45 to 110 degrees Celsius(-47 degrees Fahrenheit to 230 degrees Fahrenheit);

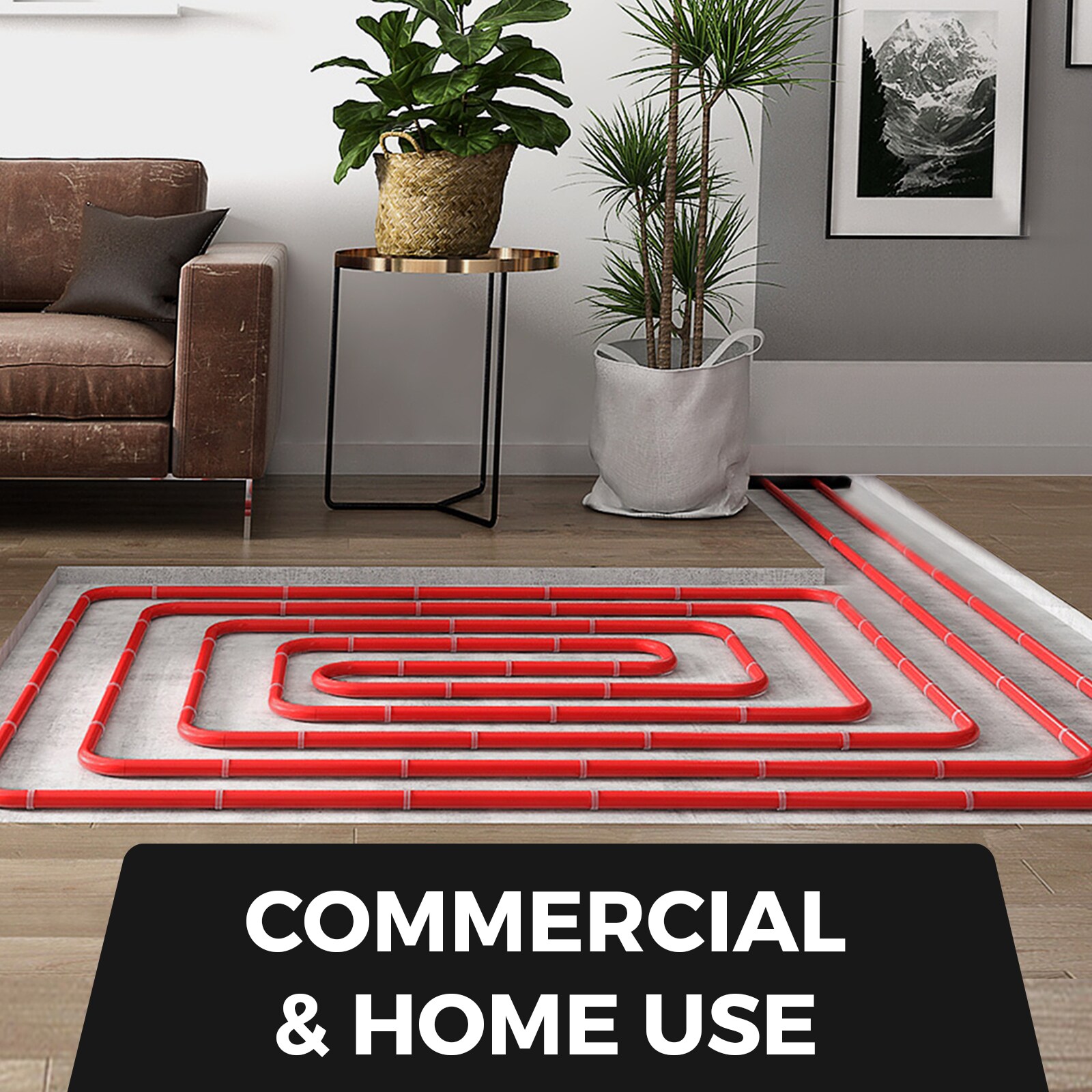

DIVERSE USE SCENARIO- Suit for home & commercial use, like: radiant floor heat system, solar water heater system, central air-conditioning piping system etc; Structural concrete slabs, Non-structural slabs, Staple-up (between joists) radiant floor heating with and without heat transfer plates, "Sandwich" type radiant heating (between sub floor and finished floor), Snow & ice melting systems etc;
Specification: Type: PEX Tube(Oxygen Barrier); Total Length: 500ft; Nominal Diameter: 3/4"; Inside Diameter: 0.66"; Outside Diameter: 0.86"; Tube Thickness: 0.1"; Pressure Ratings: 188-217psi at 65 degrees Fahrenheit; 101-108psi at 203 degrees Fahrenheit; Temperature Range: -45 to 110 degrees Celsius( -47 degrees Fahrenheit to 230 degrees Fahrenheit); Min;Bending Radius: 7" (industry standard for 3/4" PEX); ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications);; UPC listed by IAPMO;; SDR-9 dimensional standards;
