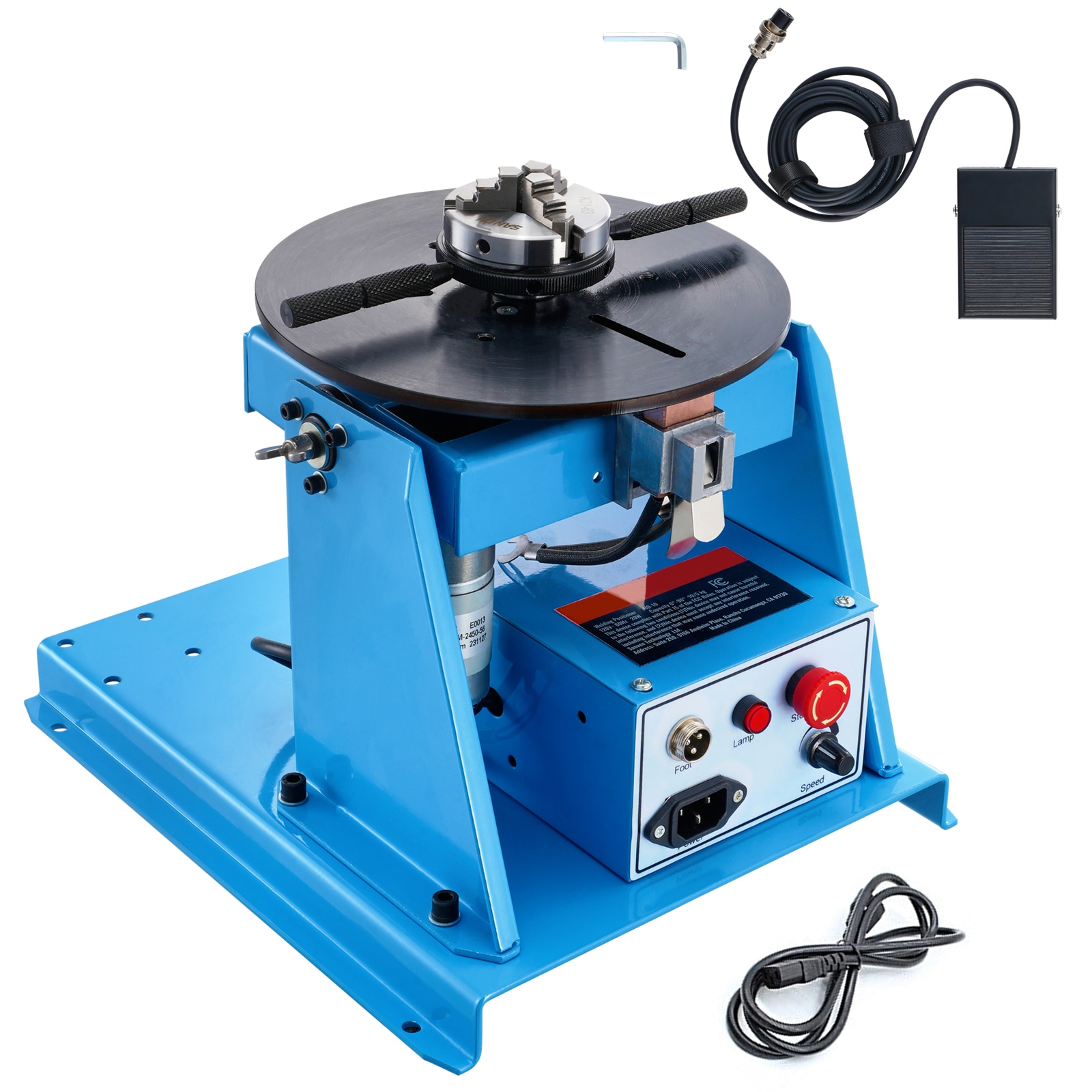

VEVOR Rotary Welding Positioner: VEVOR rotary welding positioner turntable is the perfect companion for achieving flawless welding; It makes welding easy and precise, with 0-90° tiltable worktable, 1 to 12rpm stepless speed control, and K01-63 three-jaw chuck; Choose VEVOR welder positioner makes welding effortless and accurate;; [Package Content] 1 x Power Cord; 1 x Foot Pedal; 2 x Chuck Wrench; 1 x User Manual
The rotary welding positioner turntable with 0-90° tiltable worktable, 1 to 12rpm stepless speed control, and K01-63 three-jaw chuck

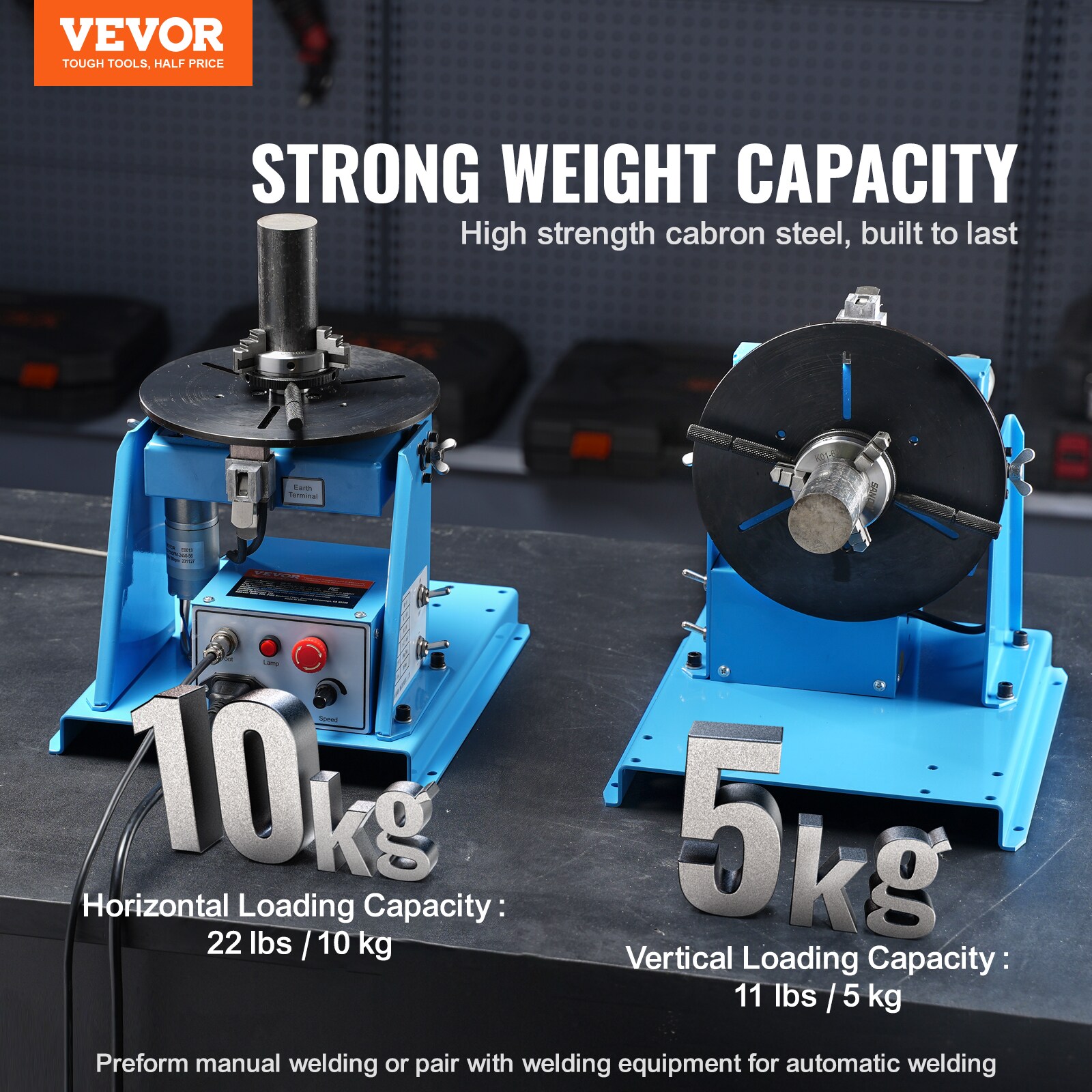

Constructed with high-strength carbon steel,It boasts exceptional 11 lbs (vertical) or 22 lbs (horizontal) load-bearing capacities

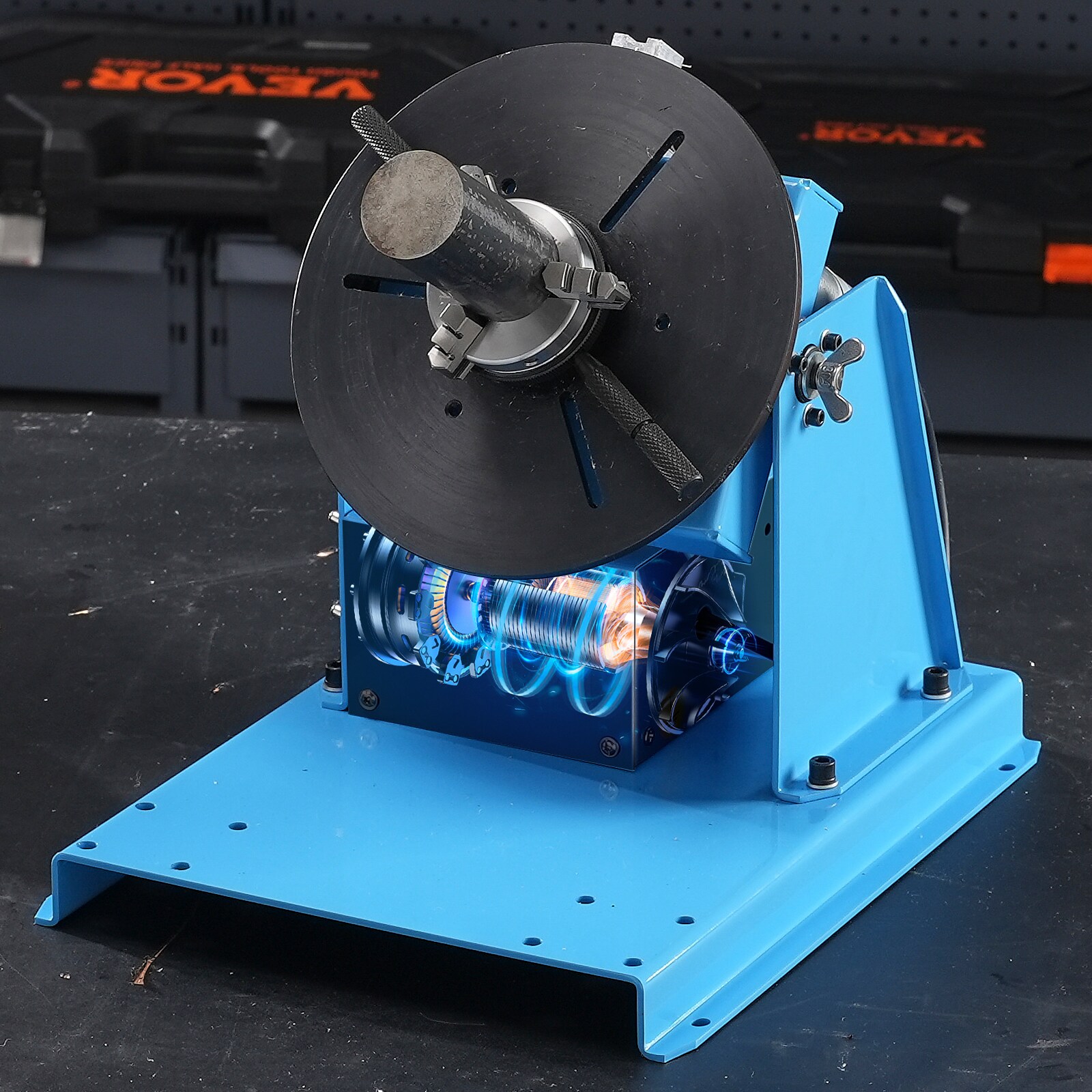

Features a worm gear turning structure with a self-locking function, ensuring precise and stable positioning of welding workpiece

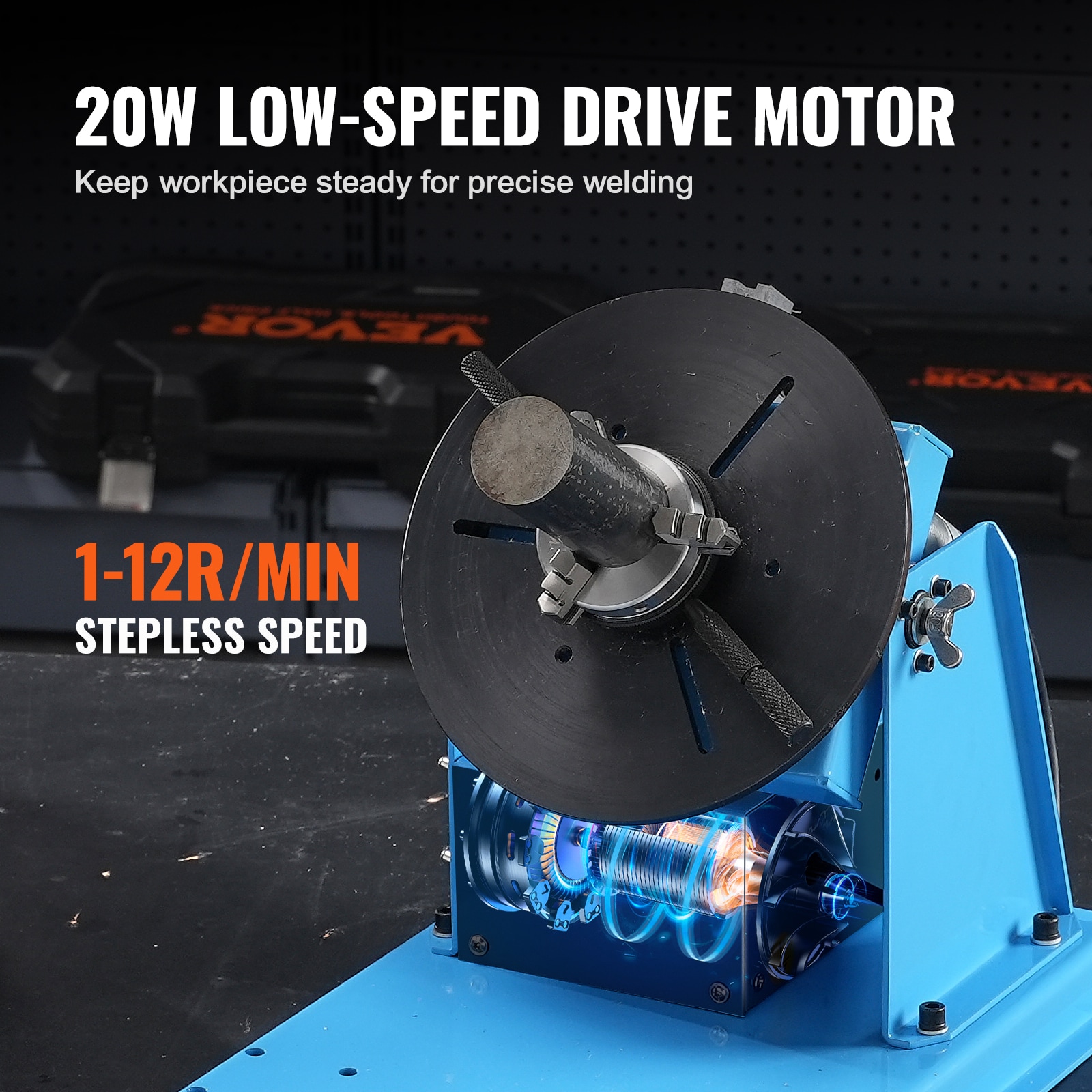

Smooth Rotation: VEVOR rotary welding positioner boasts 20W high quality motor that runs at 1-12 rpm low speed for stable operation; With a load capacity of up to 11lbs/5 Kg (vertical) or 22lbs/10 Kg (horizontal), it offers excellent stability and supports efficient, precise welding;

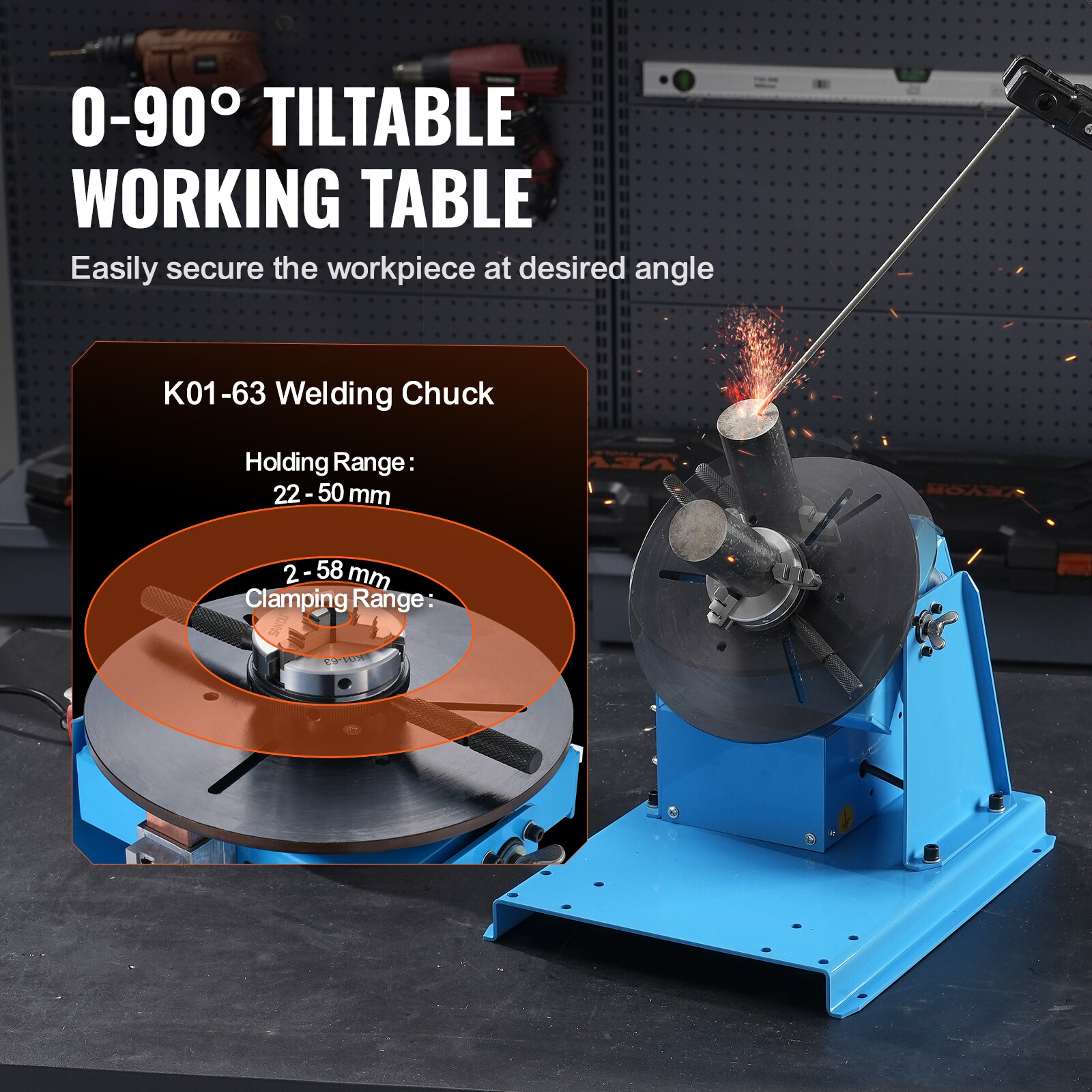

0-90° Tiltable Worktable: Our welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the butterfly bolt; The worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece;
Precise & Stable Positioning: Equipped with a 205mm K01-63 three-jaw chuck, featuring a clamping range of 2-58mm and a supporting range of 22-50mm, it effectively prevents the weld pieces from moving and falling, thus significantly enhancing welding accuracy;

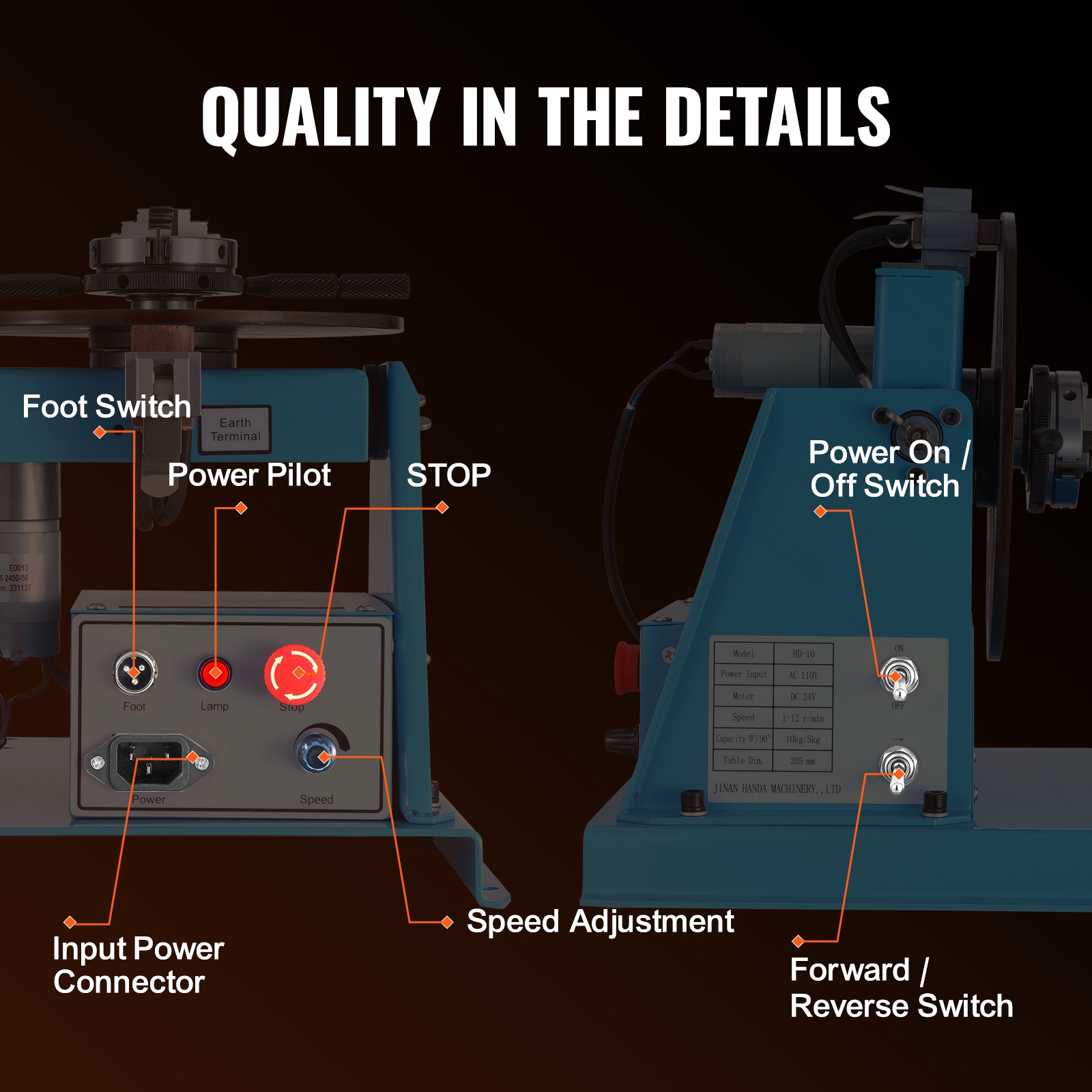

Stepless Speed Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment, and you can adjust the rotation speed with the speed adjustment knob; A convenient foot pedal switch also allows for easy control of table's 360 degrees rotation;
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing; It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding; Elevate welding efficiency and precision with VEVOR!

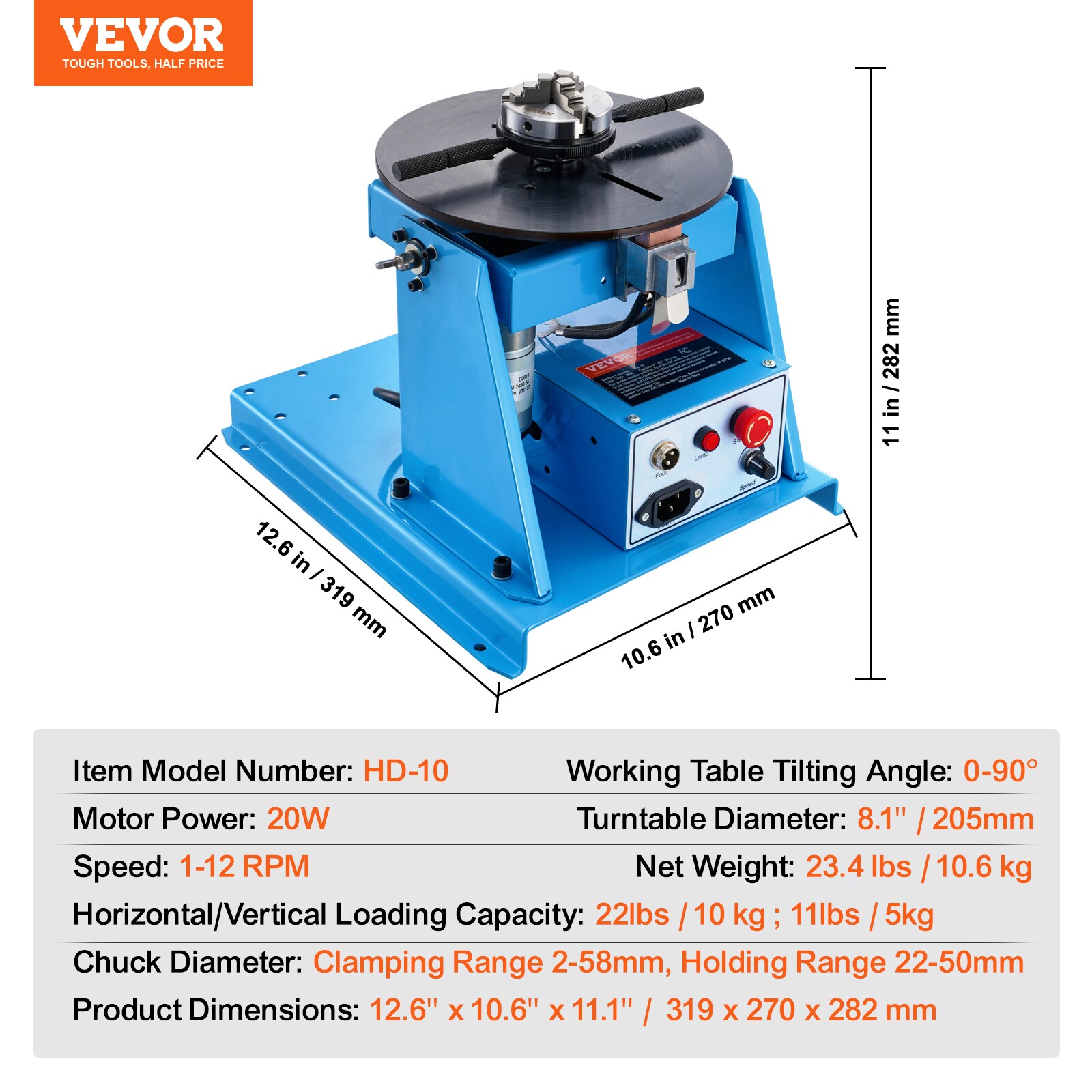

Specification: Item Model Number: HD-10; Motor Power: 20W; Speed: 1-12 RPM; Horizontal/Vertical Load Capacity: 22lbs/10 kg ; 11lbs / 5kg; Working Table Tilting Angle: 0-90°; Chuck Diameter: Clamping Range 2-58mm, Holding Range 22-50mm; Turntable Diameter: 8.1'' / 205mm; Net Weight: 23.4 lbs / 10.6 kg; Product Dimensions: 12.6'' x 10.6'' x 11.1'' / 319 x 270 x 282 mm
