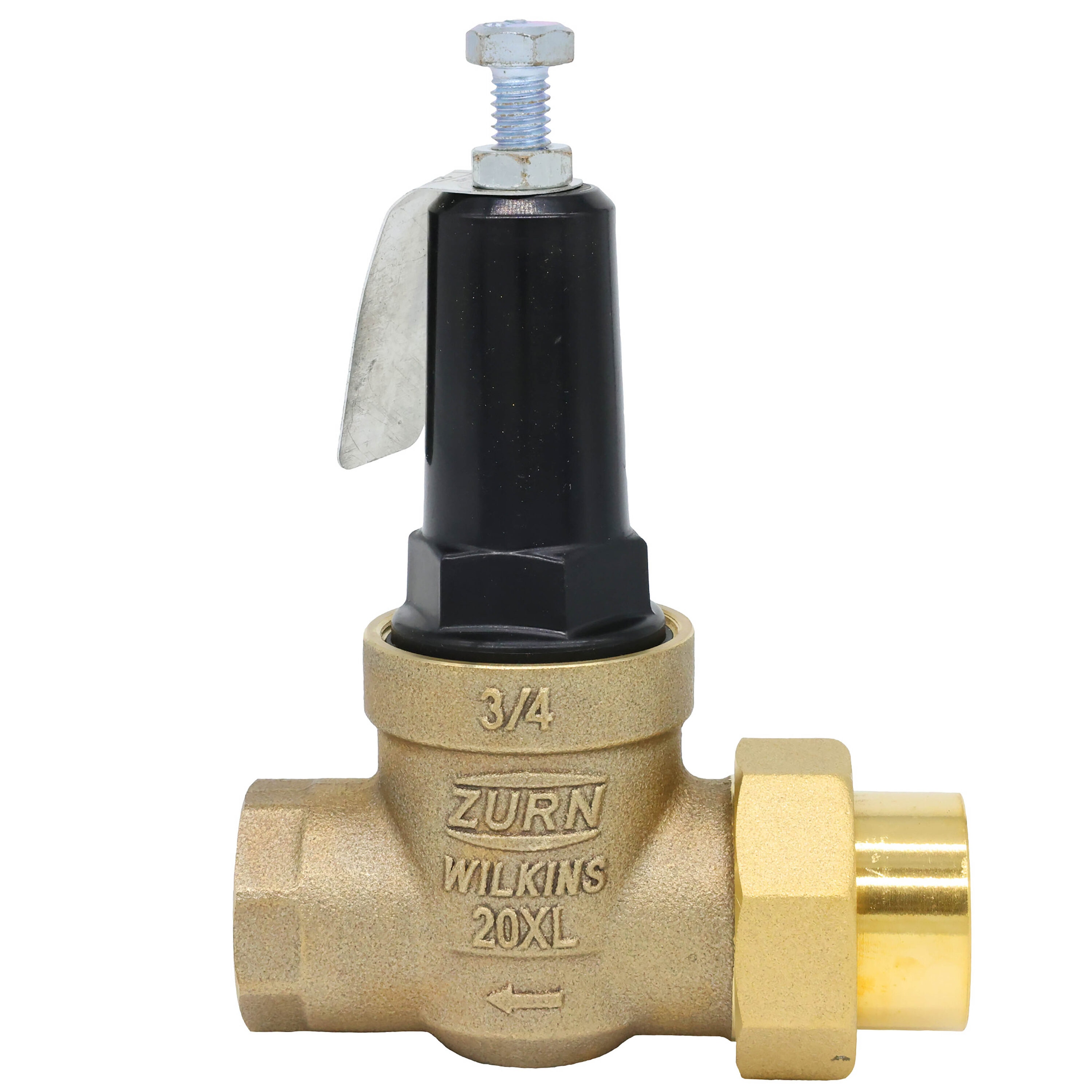

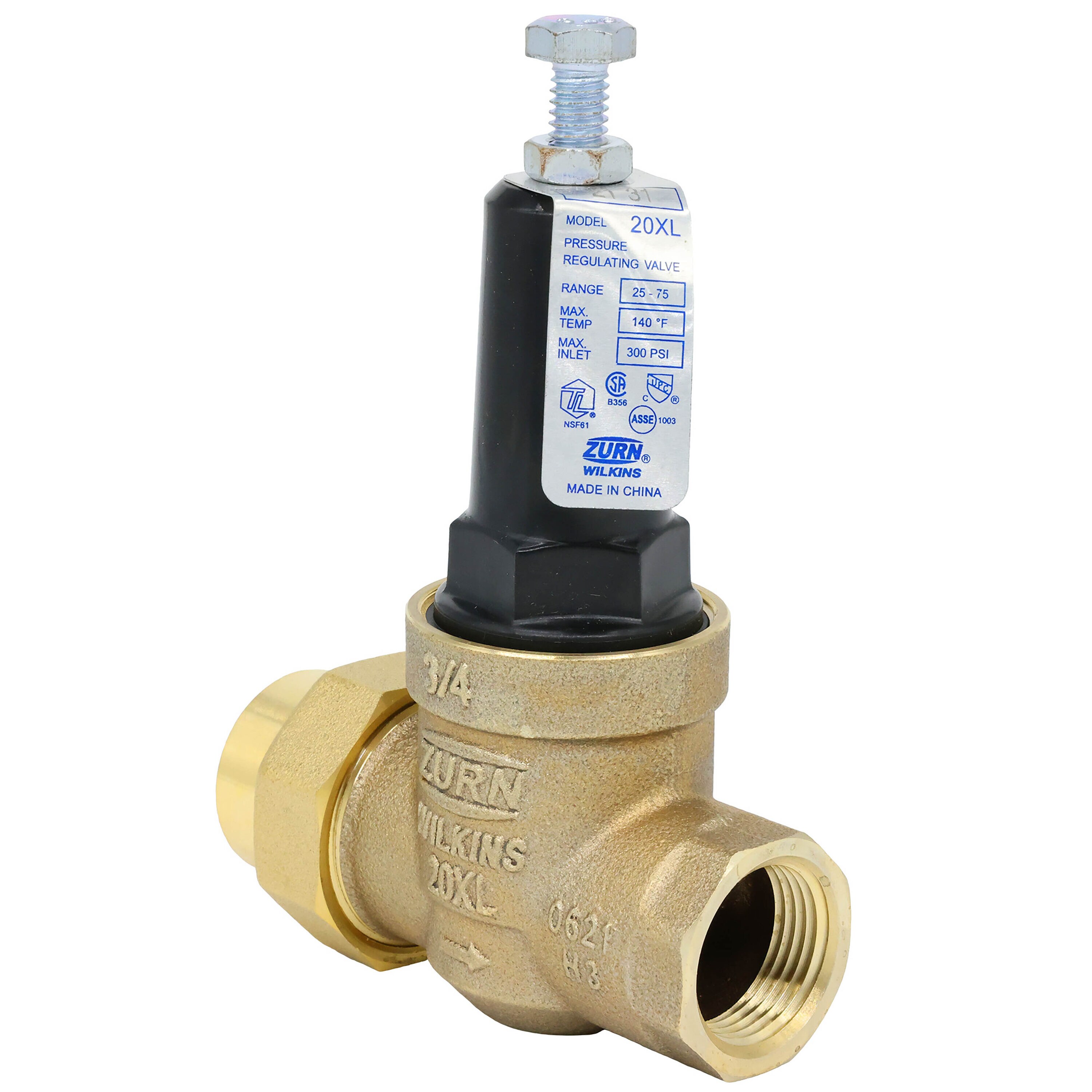

The 3/4" 20XL Pressure Reducing Valve with single union FNPT connection is designed to reduce high inlet pressure to lower outlet pressure on potable water lines. It’s short lay length and compact design ensures ease of installation in residential applications from new construction to replacement. The 20XL's balanced stem design enables the PRV to react in a smooth and responsive manner when changes to system flow occur. At the same time, it protects from inlet pressure changes. The composite cartridge and bell housing deliver superior strength and corrosion resistance. The stainless steel strainer screen catches debris, while the cartridge ensures easy repairs. The 20XL Pressure Reducing Valve is compact and versatile, making it an ideal solution for any application.
Fits 3/4 in inside diameter pipe
Single FNPT union connection
Inexpensive, durable and versatile – an excellent value for residential construction and replacement
Wide range of connection options fits nearly every residential need
Integral stainless steel strainer stops debris
Helps conserve water and lower energy costs
Threaded bell housing offers easy access for repairs
Chemical-resistant cartridge and durable UV-resistant bell housing for longer life, Can be installed in any position
ASSE 1003 Listed, cUPC listed, CSA certified B356, meets requirements of NSF/ANSI 61, Safe Drinking Water Act compliant
