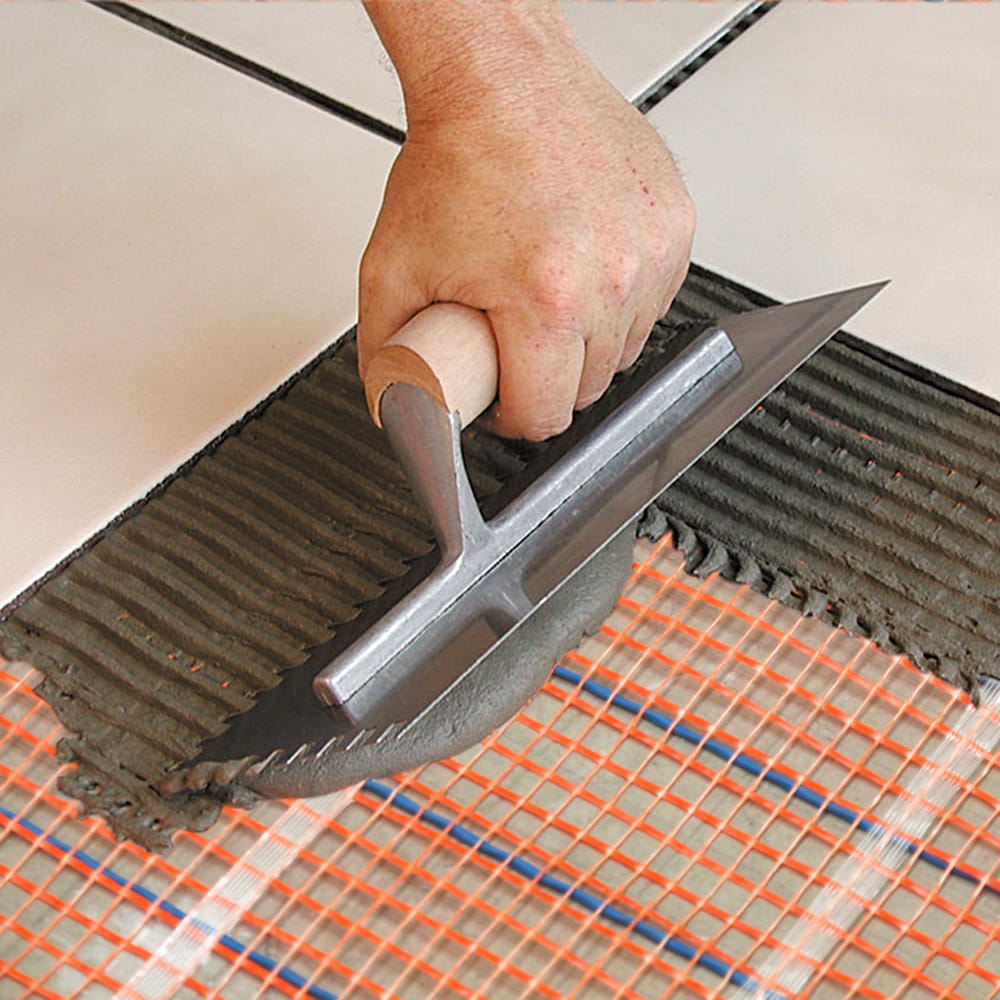

SunTouch® TapeMat® electric floor heating mat is a series resistance heating cable assembly designed for installation over plywood, backer board, or concrete slab (according to ANSI or TCNA guidelines), and then embedded in 3/8 in. (9.5 mm) or greater self-leveling or polymer-modified thin-set mortar. The SunTouch TapeMat open-weave design with peel-and-stick tape provides fast and easy installation on subfloors. TapeMats add only 1/8 in. thickness to a typical tile floor installation and can be easily adjusted to accommodate curves, angles, and cut-outs. A complex wire construction with two parallel heating elements and a patented helical twist prevents electromagnet field (EMF) radiation. TapeMats must be controlled by a SunStat® floor sensing thermostat (sold separately).
Energy efficient, inexpensive to operate
Dual wire technology reduces electromagnetic fields (EMF) to ultra-low levels
Single point power connection makes layout and wiring a snap
Armored power lead, wire straight to the electrical box, no conduit required
Open weave construction for easy application of thin-set and mortar without compromising the bond of your floor covering to the sub-floor
High quality programmable and non-programmable thermostat controls available
UL listed and manufactured in the USA with the highest quality materials
25-Year manufacturers warranty
