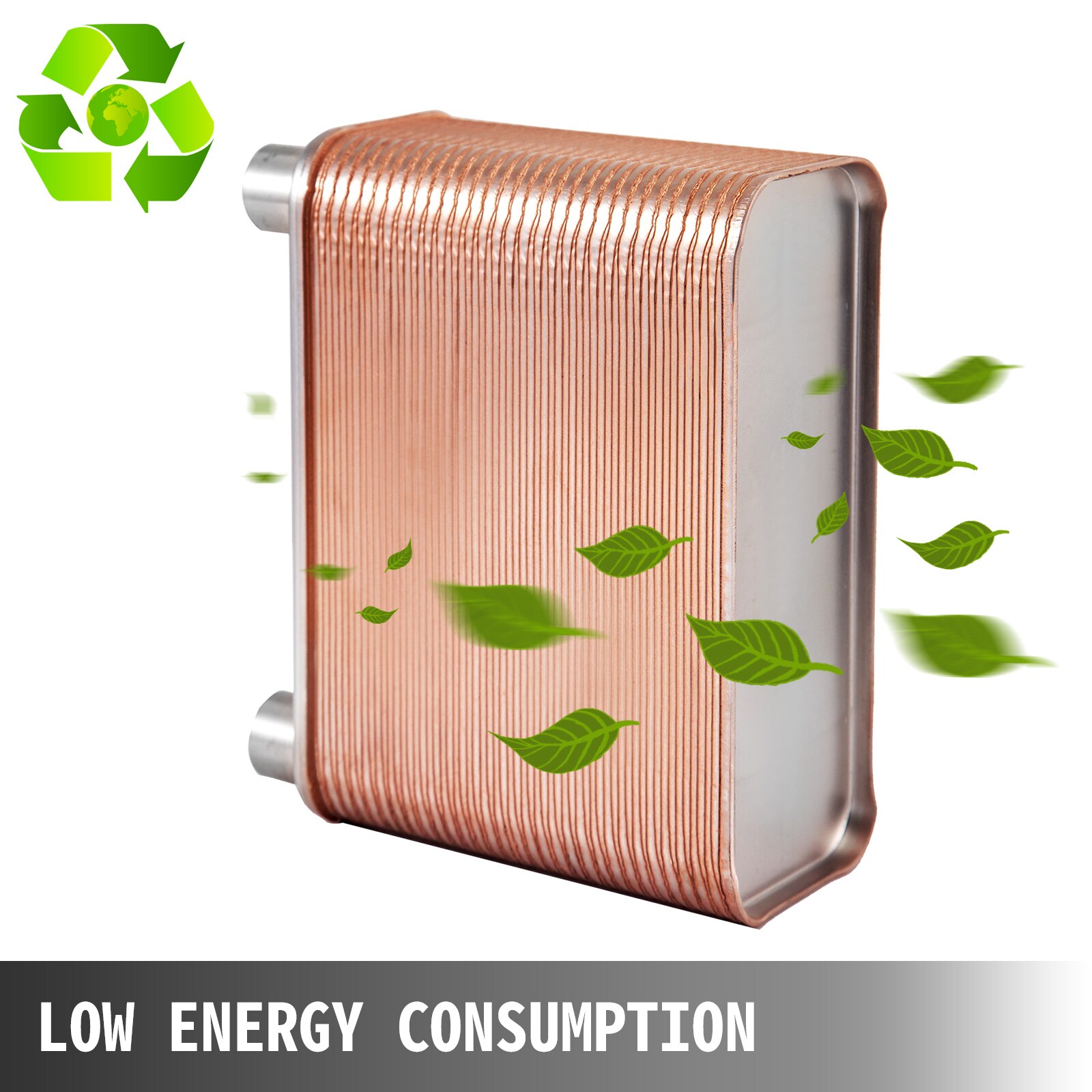

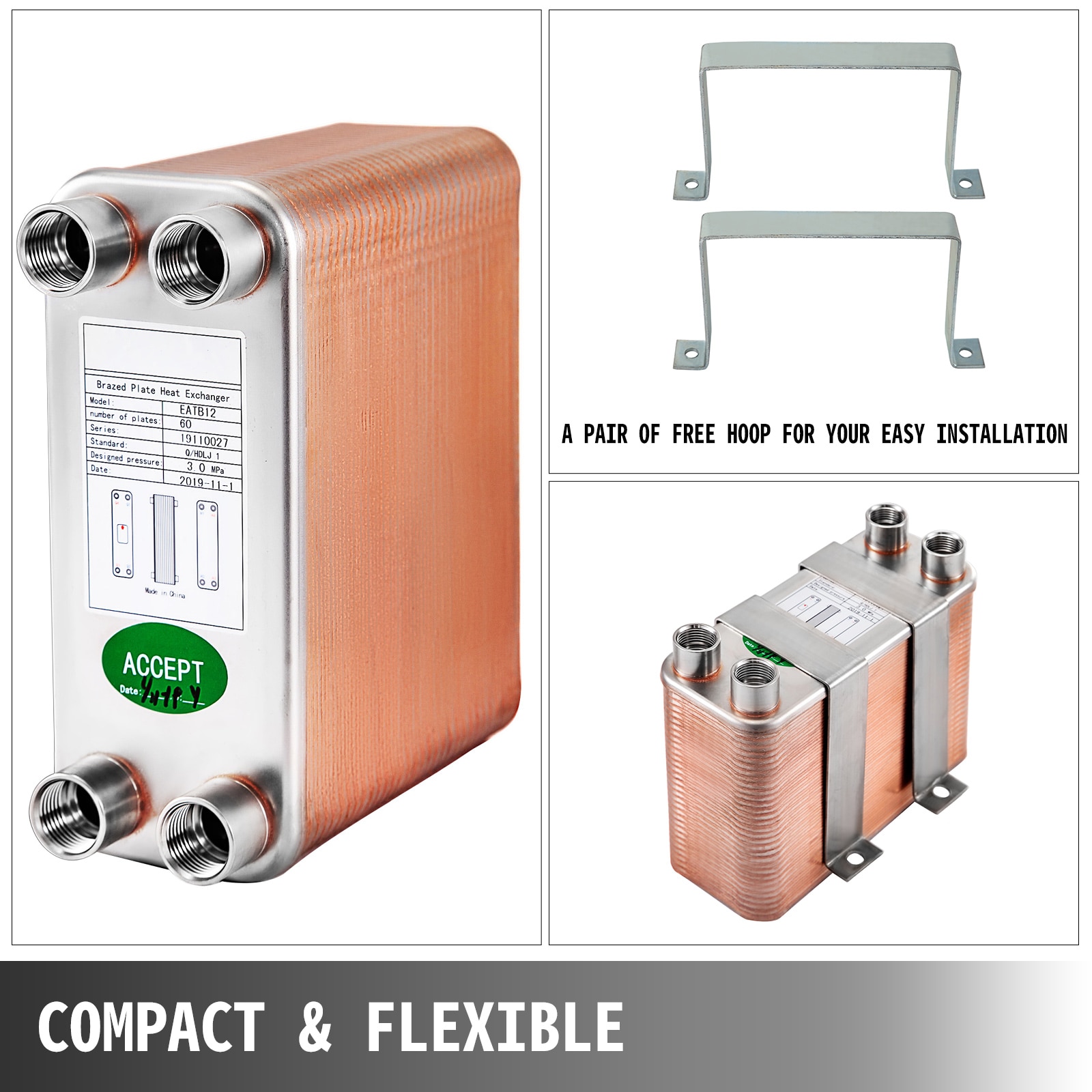

Brazed Plate Heat Exchanger 40 Plate Heat Exchanger: Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel +99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc; [Package Content] 1 x Heat Exchanger; 1 x A Pair of Hoops

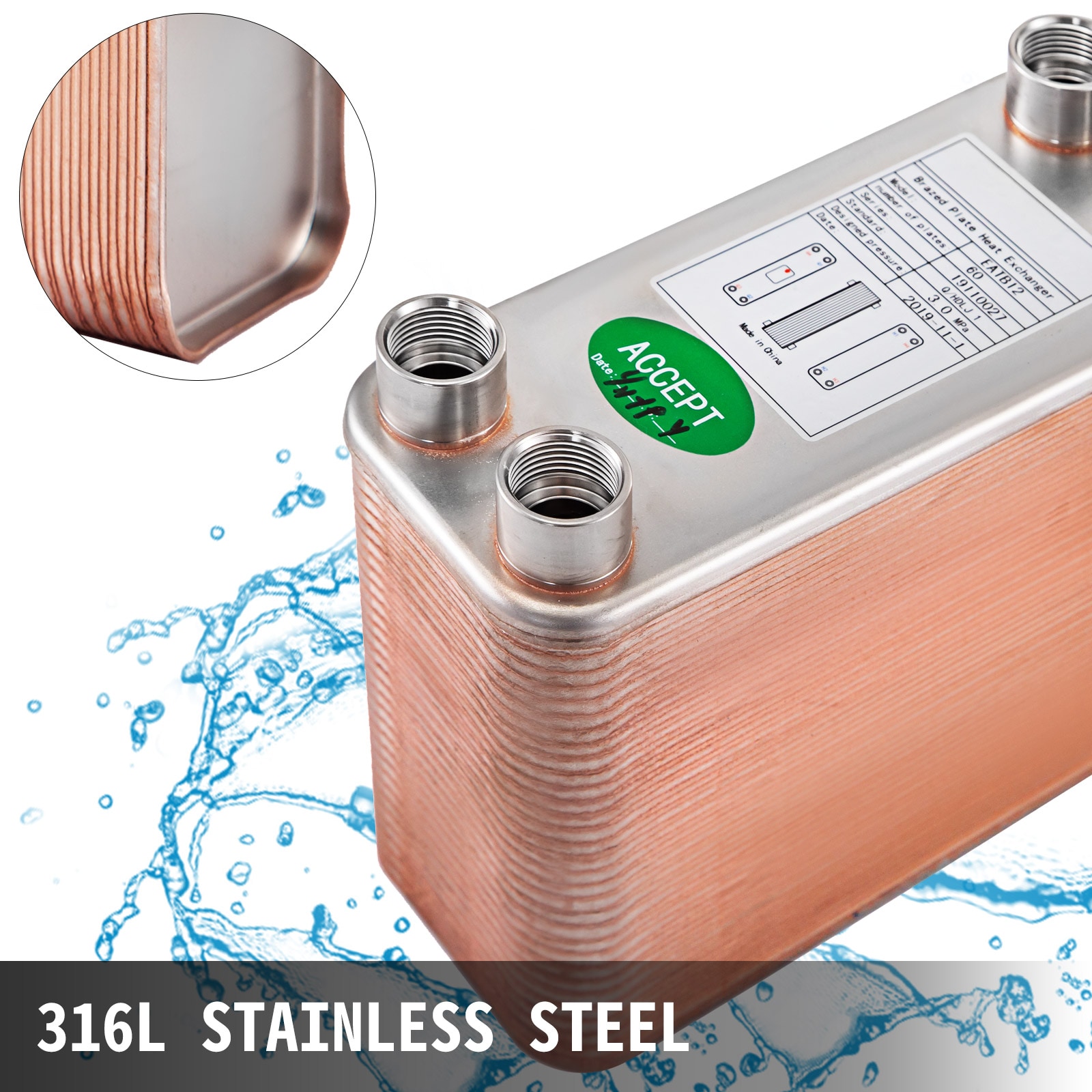

The heat exchanger is made of 316L stainless steel plate, can withstand high pressure and high temperature
Compared with other heat transfer equipment, the corrugated plate design reduces the structure and floor space
It is perfect for Solar heating, Oil unit heat recovery Engine cooling
HIGH THERMAL EFFICIENCY- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency; Our heat exchanger series have been certificated by CE; Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm;
ENERGY OPTIMIZED - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption;
ROBUST CONSTRUCTION- This 40 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature; Four thickened MNPT ports for your easier installation;
COMPACT DESIGN- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings;
HIGHLY VERSATILE- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems;
Specification: Model: EATB12; Material: 316L +99.9% Copper; Ports: 3/4" MNPT; Plate Quantity: 40; Design Pressure(Max):3.0 Mpa; Test Pressure:(Min):4.5 Mpa; Design Temp;( degrees Celsius): Max +225; Design Temp;( degrees Celsius): Min -196; Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm
