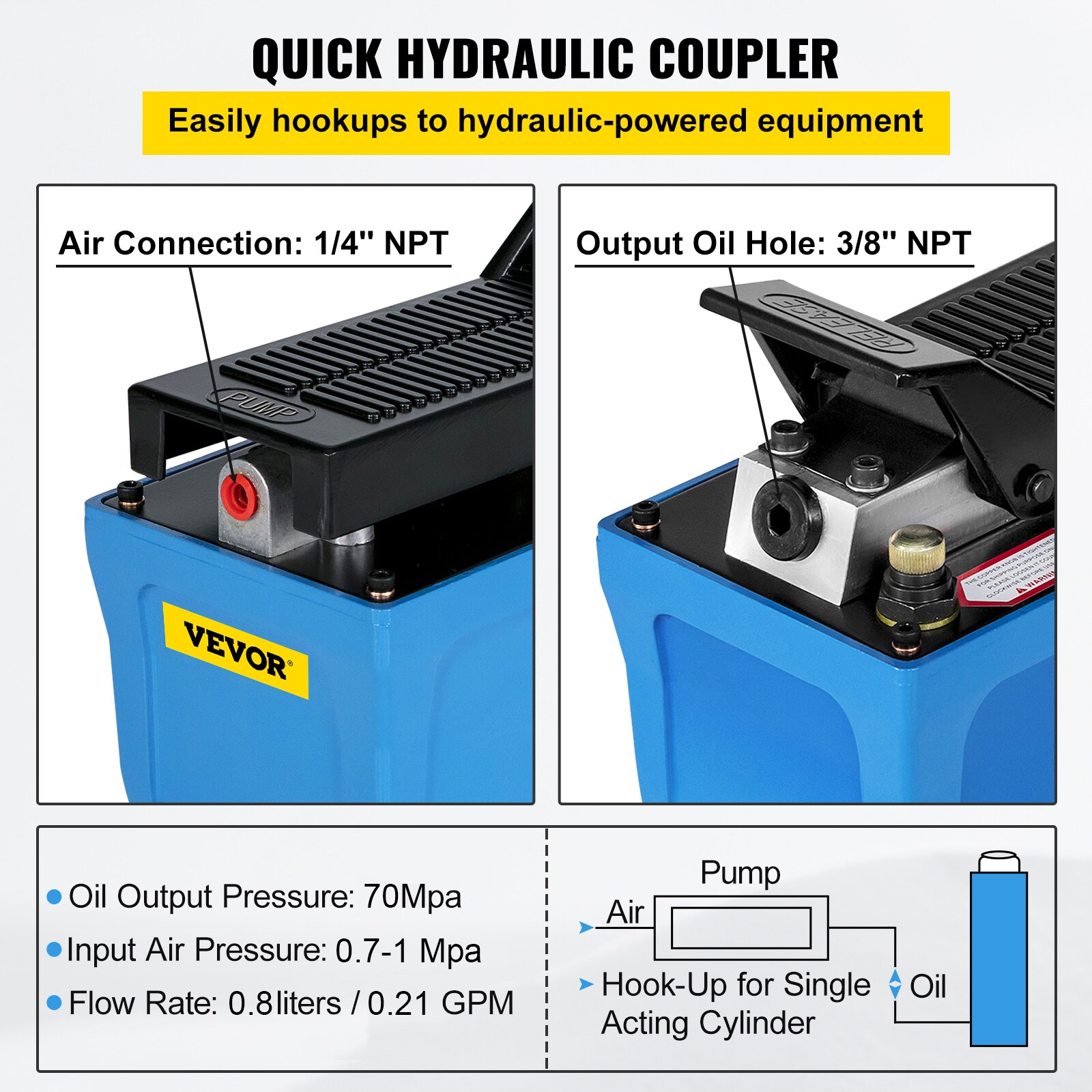

The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily.
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving.
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion.
Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI; Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons, Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa;

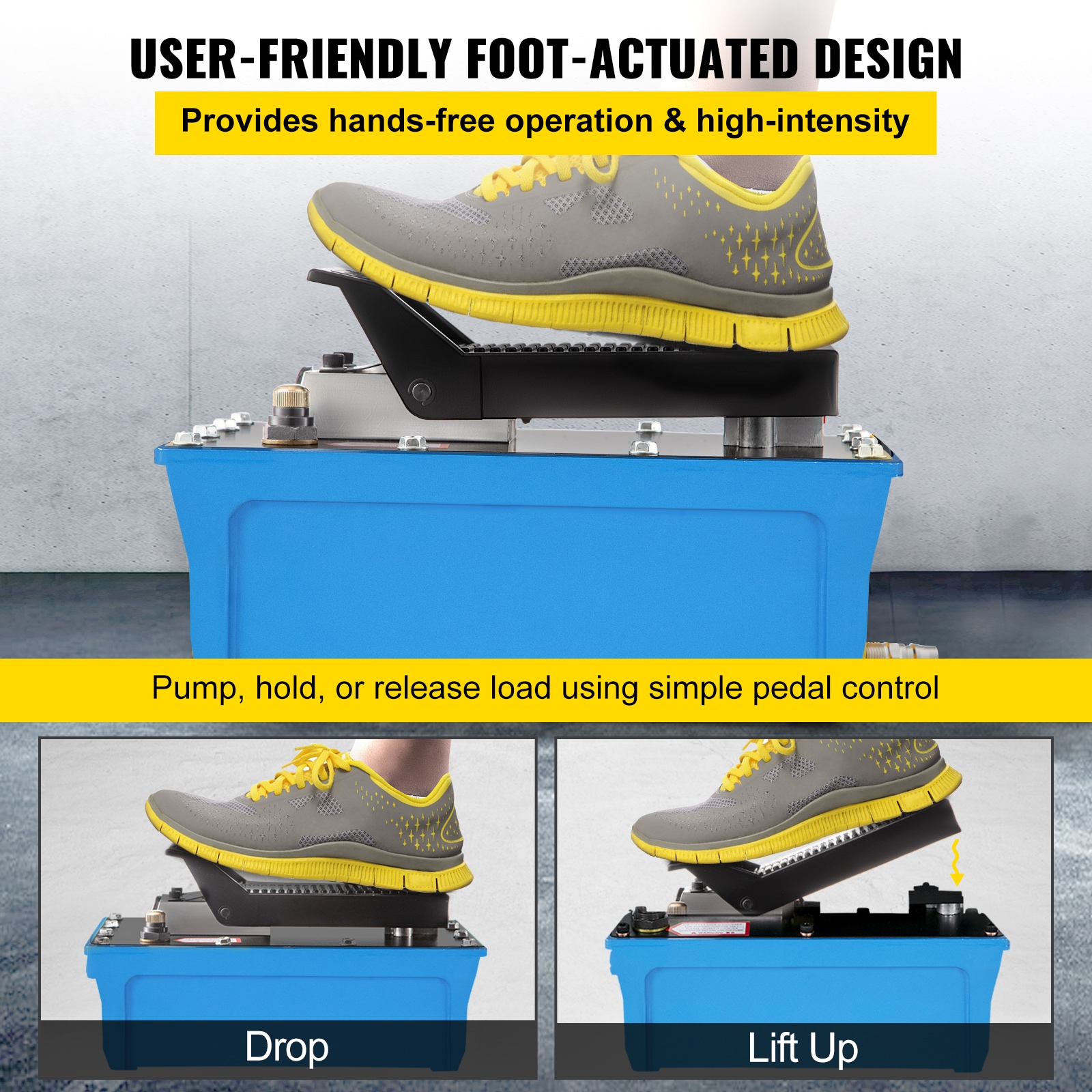

Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure; The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock;

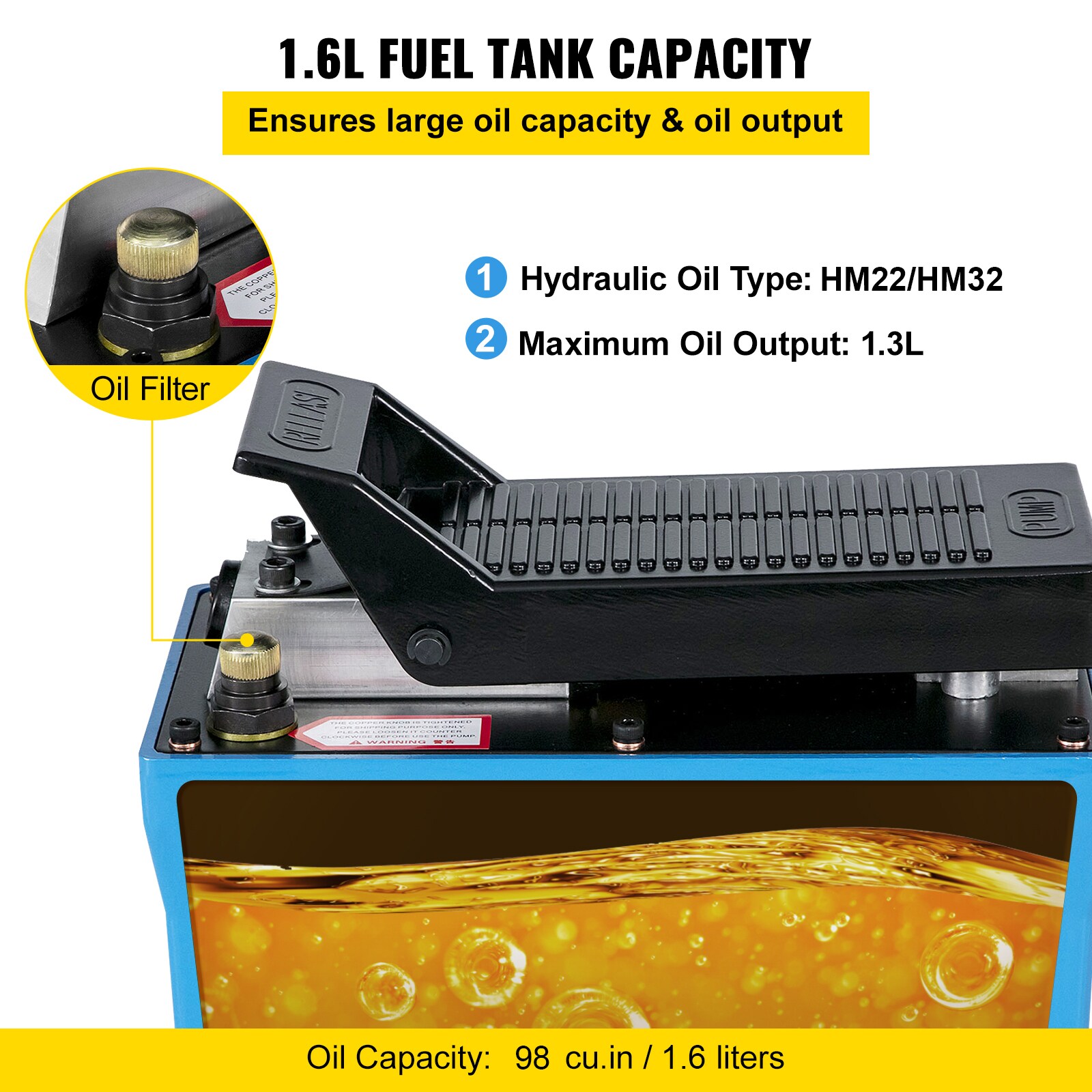

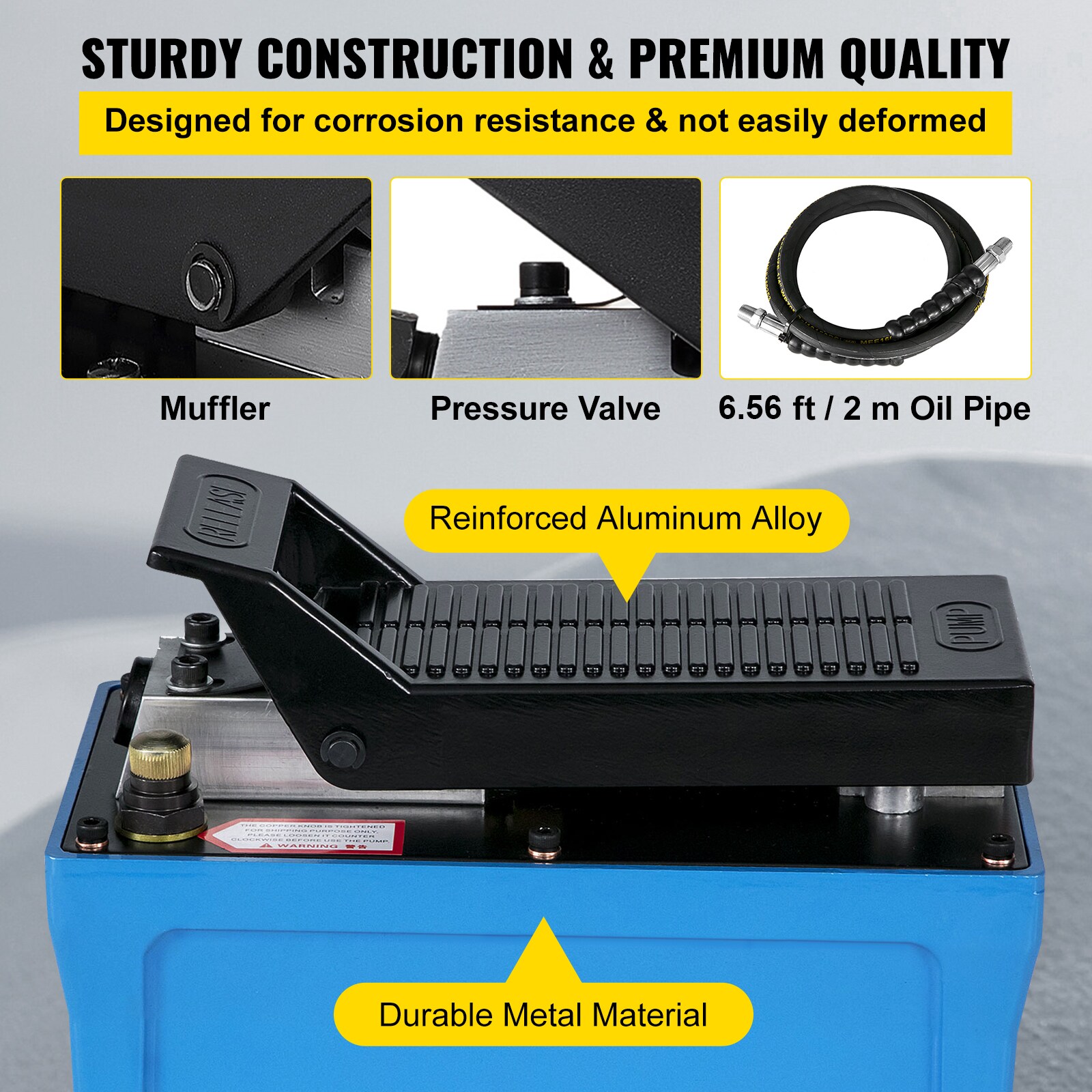

Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications; 1.6L ± 0.1L oil tank has a larger capacity with 1.3 liters maximum oil output; Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure;
Durable Oil Pipe Included: This hydraulic air pump is equipped with a 6.56 ft / 2 m high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer; The oil port is made of cast steel, durable and reliable, no worry about the oil leak;

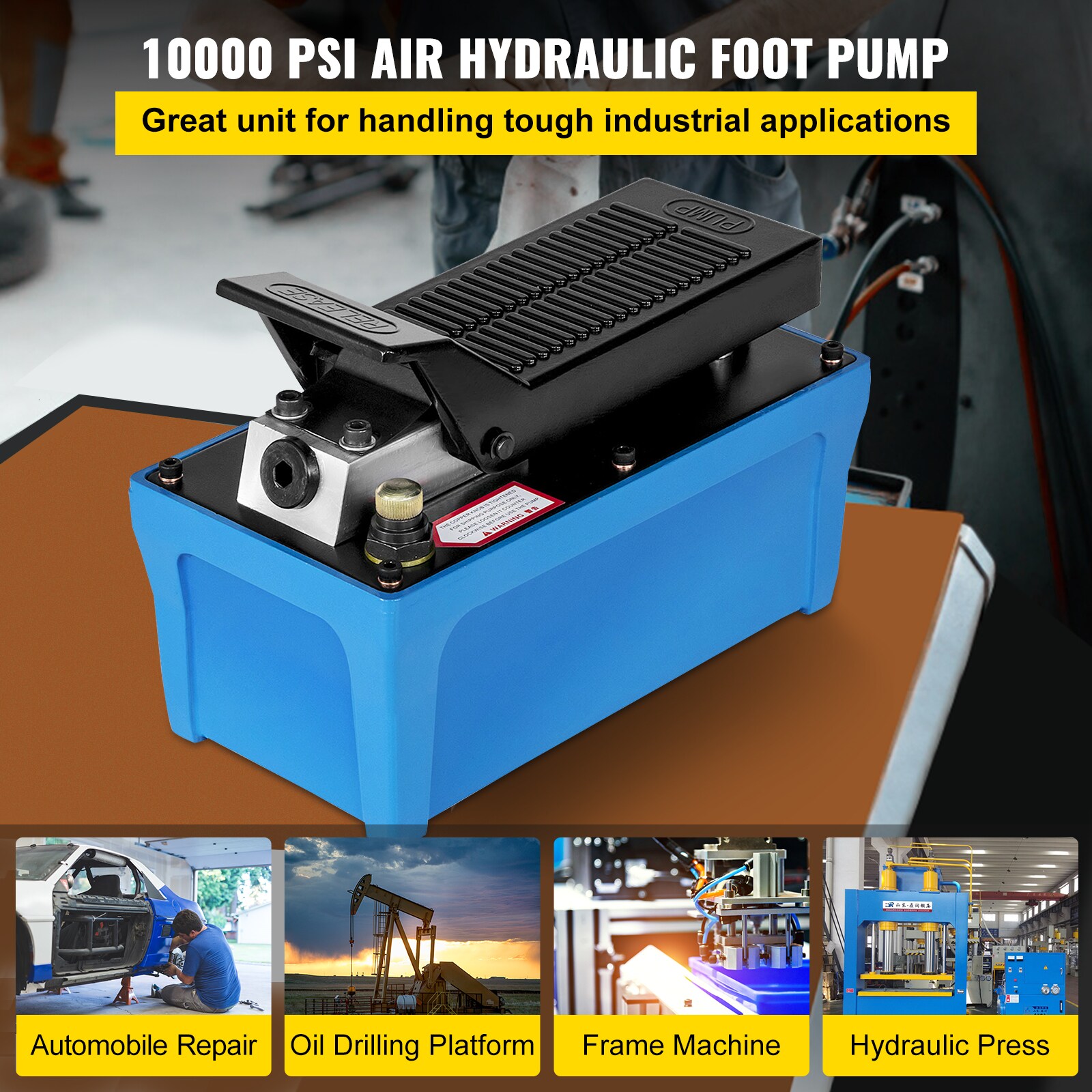

10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications; An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI;
Specification: Type: Air Powered Hydraulic Pump; Action: Single Acting; Control: Foot pedal pump - Release pressure to return fluid; Includes Hydraulic Hose: 6.56 ft / 2 m with 3/8'' NPT - Quick hydraulic coupler; Flow Rate: 0.8 liters / 0.21 gallons per minute; Air Connection: 1/4" Female NPT; Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler; Hydraulic Oil Type: HM22/HM32; Oil Capacity: 98 cubic inches / 1.6 liters (1600 cc), 0.42 gallons; Input Air Pressure: 0.7-1MPa; Shell Material: Reinforced Aluminum Alloy; Fuel Tank Capacity: 1.6L; Capacity Tolerance: ± 0.1L; Maximum Oil Output: 1.3L; Oil Output Pressure: 70MPa; Pressure Range: ≥ 0.5; Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm; Weight: 17.72 lbs / 8.04 kg; Dimensions (L x W x H): 12.2 x 8.26 x 7.4" / 31 x 21 x 19 cm
