Ampex3520FK (5 panels) light commercial insulation R16 - 45 psi panels (40 square feet) are used for radiant floor (slab) heating systems both for interior and exterior applications. The combination of molded expanded polystyrene (EPS) insulation with a vacuum applied high impact polystyrene (hips) film lower face, makes for a strong and resilient panel. The panel combines rigid insulation, a vapor barrier and a pipe locking mechanism into a single solution, that significantly reduces installation time and labor. Ideal for installation of driveways, patios, sidewalks, workshops and livestock barns; any concrete slab that will have vehicles or heavy equipment used on it. Specifically designed for exterior and snow melt applications. They are also available in a wide range of other compressive strengths and thermal resistance values to meet the needs of most projects.
Our unique Ampex pipe R16 - high density - snow melt insulated panel kit contains 5 panels each – 4.875” x 2 ft x 4 ft – 40 sq ft total area
The panel design ensures that the tubing is completely encased in concrete and not pushed to the bottom of the panel through the use of bridge connectors and the larger contact area between the tubing and the concrete allows for efficient heat transfer
Oversized 4-sided tongue and groove interlock system makes for quick, easy and secure installation unique patented design of the panel nubs will accept any certified radiant heating pipe sizes of 3/8 to 1 in

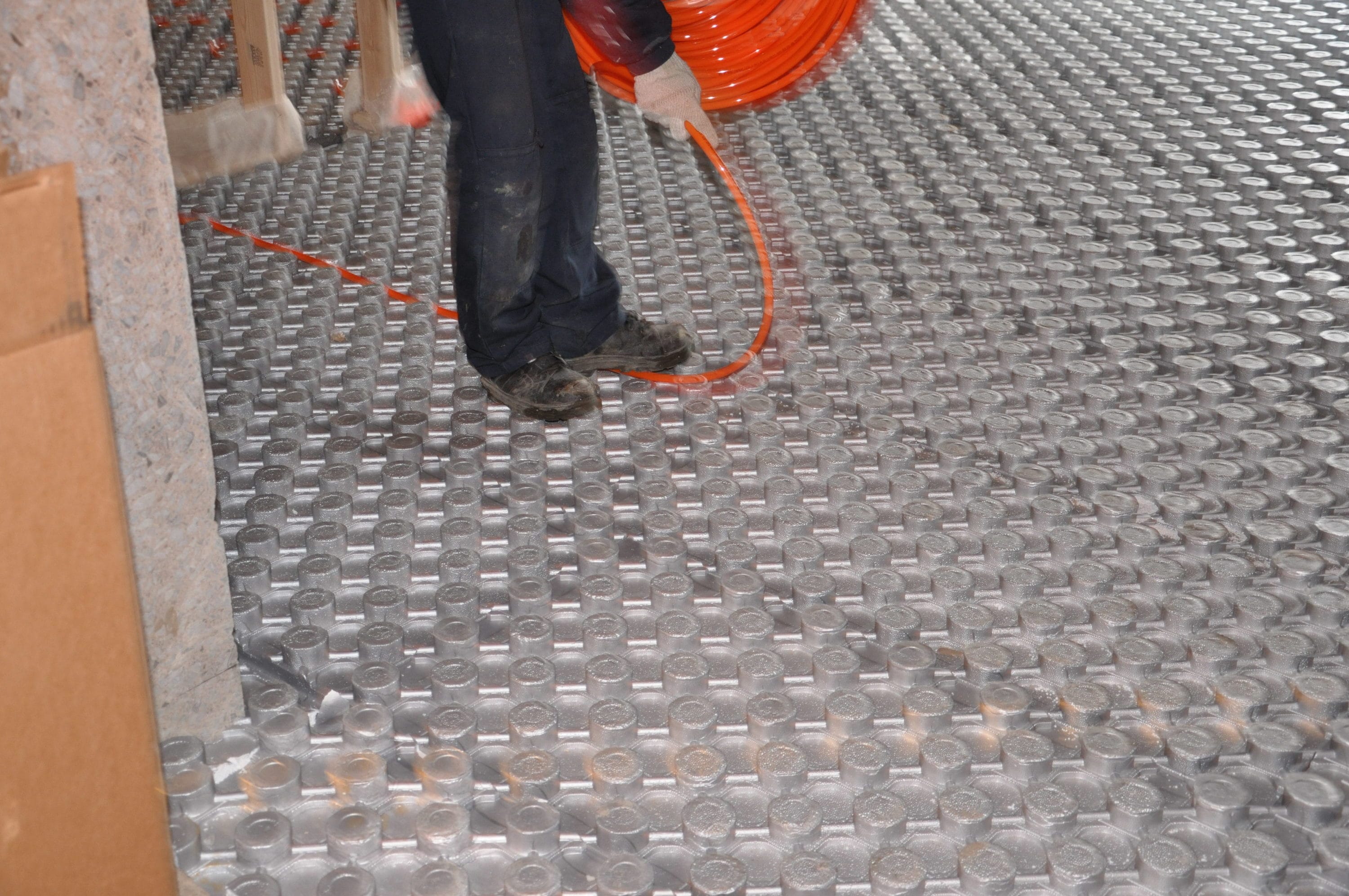

The nub height and film accommodate tube sizes from 3/8 in to 1 in O/D and protect the tubing from damage and dislocation when the panel is walked upon during construction; no staples and zip ties greatly reduce install time
Provides for efficient alternative heating in new construction and renovations; T and G edge connector system makes for a quick, easy and secure installation with continuity of a class II vapor barrier
