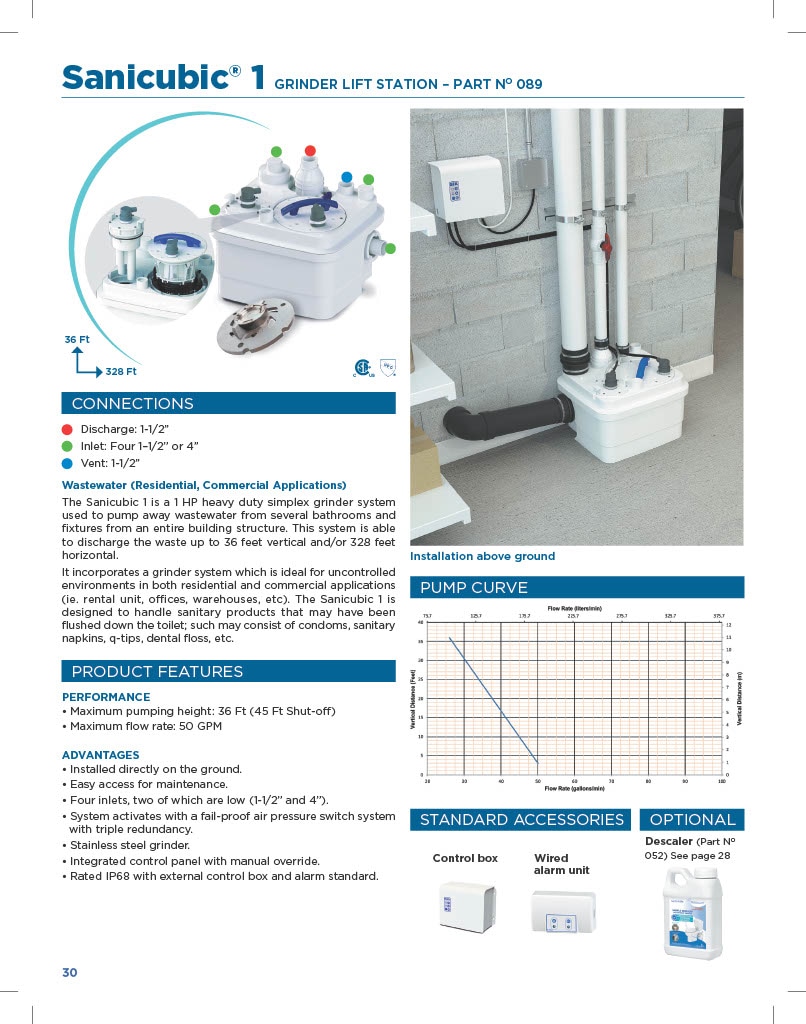

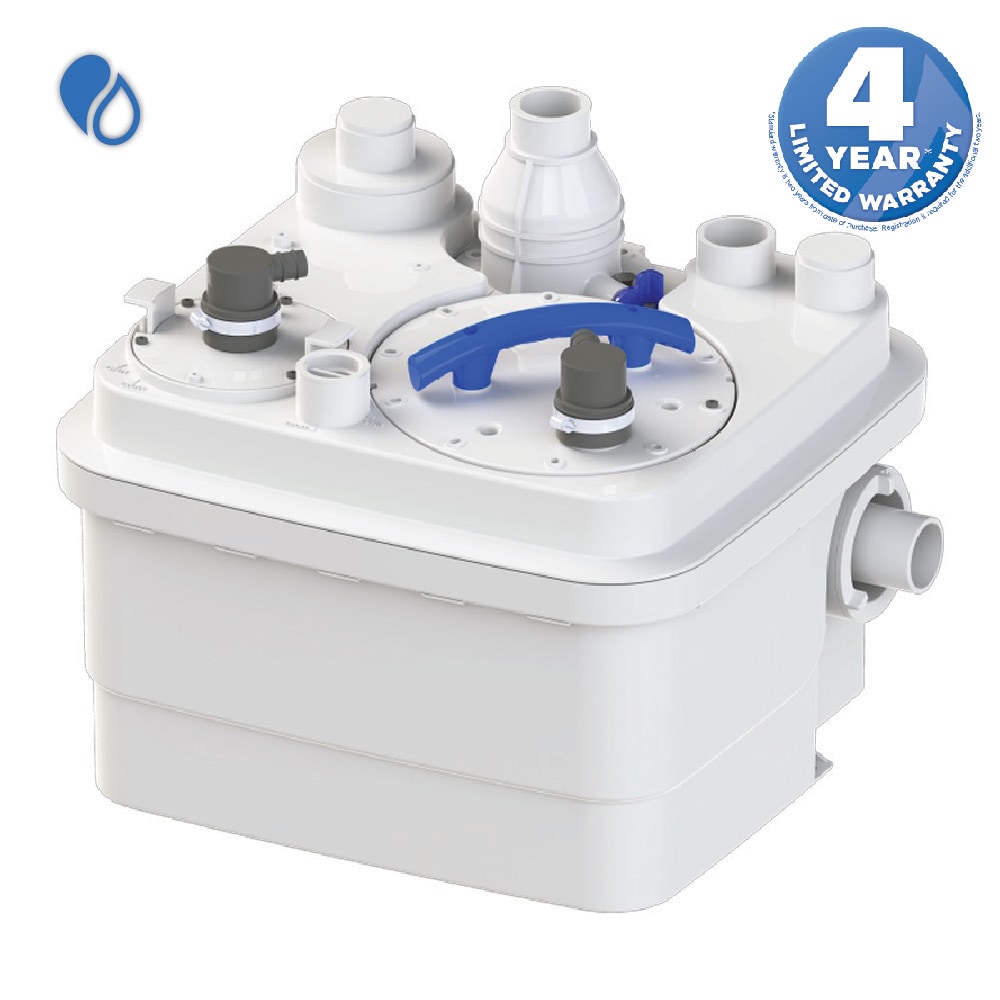

The Sanicubic 1 is a 1 HP heavy duty simplex grinder system used to pump away wastewater from several bathrooms and fixtures from an entire building structure. This system is able to discharge the waste up to 36 feet vertical and/or 328 feet horizontal. It incorporates a grinder system which is ideal for uncontrolled environments in both residential and commercial applications (ie. rental unit, offices, warehouses, etc). The Sanicubic 1 is designed to handle sanitary products that may have been flushed down the toilet; such may consist of condoms, sanitary napkins, q-tips, dental floss, etc. For any questions or concerns regarding applications or warranty, please contact Saniflo directly at 800-571-8191 or through email to sfasales@saniflo.com
The Sanicubic 1 discharges the waste through a 1-1/2-inch rigid pipe
A built-in non-return valve is included on the internal discharge pipe
Has been designed with a 1.5-inch vent connection on the top of the enclosure
Please note that the vent system should be a two-way air vent as air needs to freely flow both ways
IP68 rated for possible submergence which eliminates any potential water damage to internal components
It comes equipped with an external control panel as well as a visual and audible alarm system (15 feet long wire)
Discharges wastewater from several toilets, sinks, bath/showers, urinals and even washing machines
The wastewater from other sanitary fixtures is drained into the Sanicubic 2 via five 1.5inch or 4-inch inlets on either side of the housing and on top of the enclosure
