3 CFM Vacuum Pump: Our heavy-duty vacuum chamber is perfect for removing gases from compounds which have become entrapped in the mixture when mixing components; Vacuum chambers are required to assure a bubble-free mold when mixing resin and silicone rubbers and slower setting resins; Our vacuum chamber greatly reduces gas bubbles and pockets that would weaken the epoxy or silicone;; [Package Content] 1 x 3 Gallon Vacuum Chamber; 1 x 3/4" Acrylic Lid; 1 x Heat Treated Silicone Lid Gasket; 1 x Glycerin Filled Gauge with Brass Fittings; 1 x 50 Micron Air Filter; 1 x Non-Stick Silicone Pad; 1 x 5 Foot Steel Wire Collapse-Proof Hose; 1 x Instruction Manual; 1 x 1/4HP 3CFM Single Stage Vacuum Pump
Heavy-duty vacuum pump has a FAD of 3 CFM, a power of 1/4 HP, stable operation with strong copper motor
The capacity of the stainless steel vacuum chamber is 3 gallons and can withstand temperatures up to 160 º F

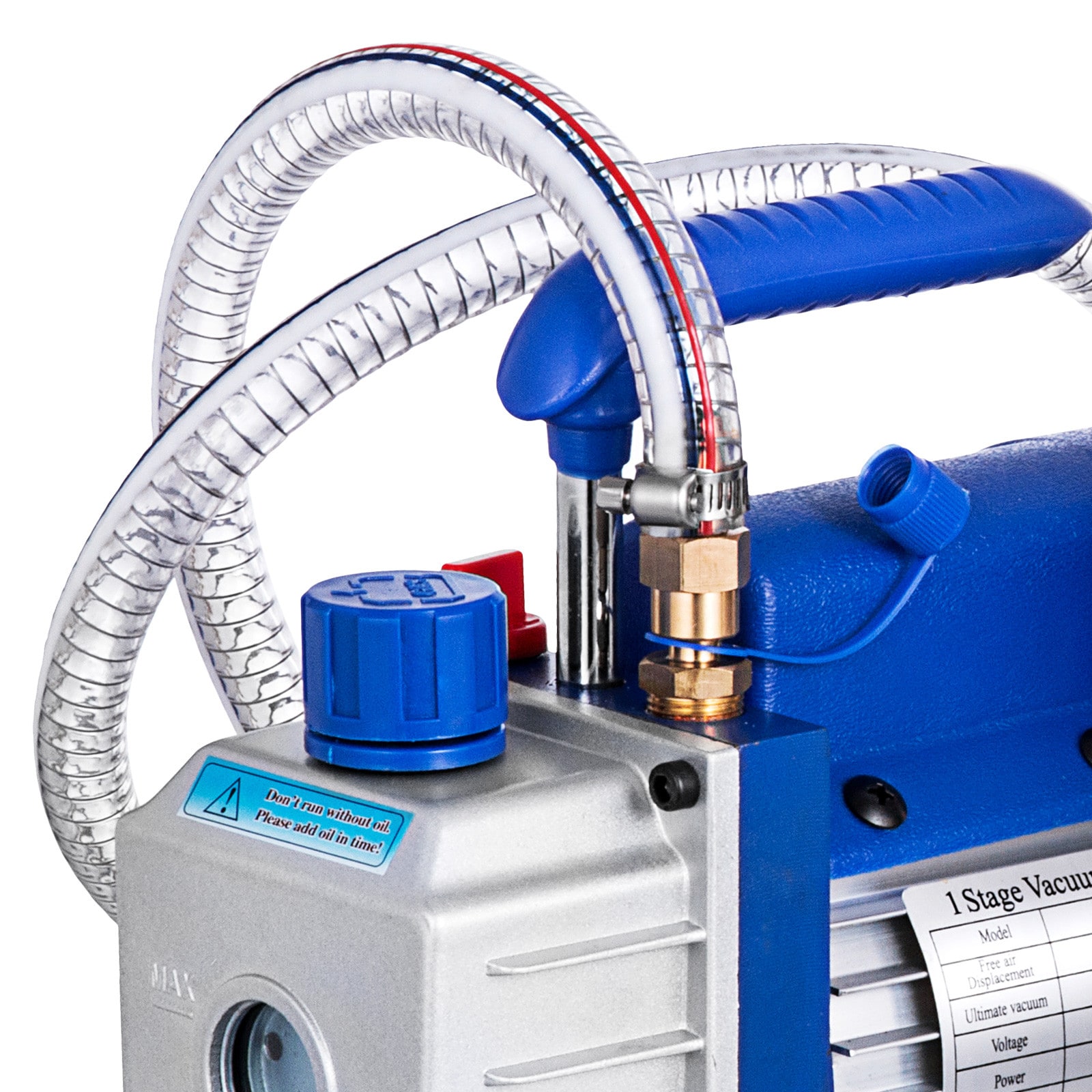

AC vacuum pump equipped with an oil viewing window to monitor oil levels conveniently and avoid oil deficiency
Heavy Duty Vacuum Pump: FAD: 3 CFM, Single Stage; Power: 1/4 HP; Ultimate Vacuum: 5PA; Our HVAC vacuum pump is made of heavy-duty aluminum alloy with good heat dissipation abilities, durable and sturdy; A strong copper motor is adopted for stable operation; Besides, it features a non-oil flow back design to avoid chamber contamination;

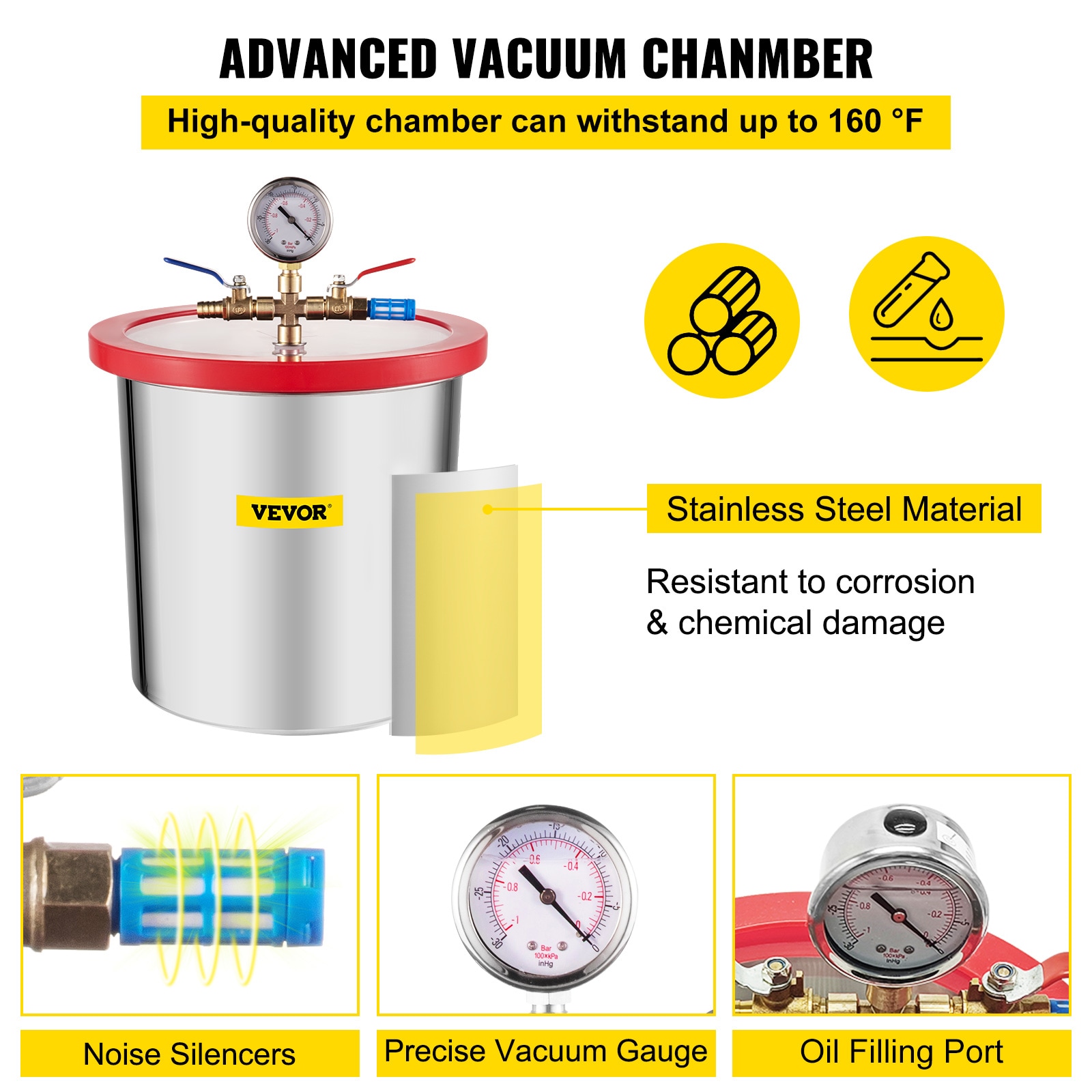

Premium Vacuum Chamber: Capacity: The stainless steel vacuum chamber is of high strength, can withstand up to 160ºF; It is equipped with two silencers to reduce the noise and make the pump run quieter; 75-micron air filter reduces airflow back into the chamber for purging and avoids debris from entering the chamber;
Easy Monitoring & Cooling: This AC vacuum pump comes equipped with an oil viewing window to monitor oil levels easily and avoid oil deficiency; Intelligent radiators can cool themselves and avoid stuck things from burning out; The built-in thermal protection function can avoid the machine from burning;
Practical Accessories: The vacuum chamber has a 3/4" acrylic crystal lid, convenient for you to observe the internal state, and is bulletproof; The non-stick silicone gasket allows you to wipe off mixtures easily; The hose is built with steel wire to ensure strength & durability;

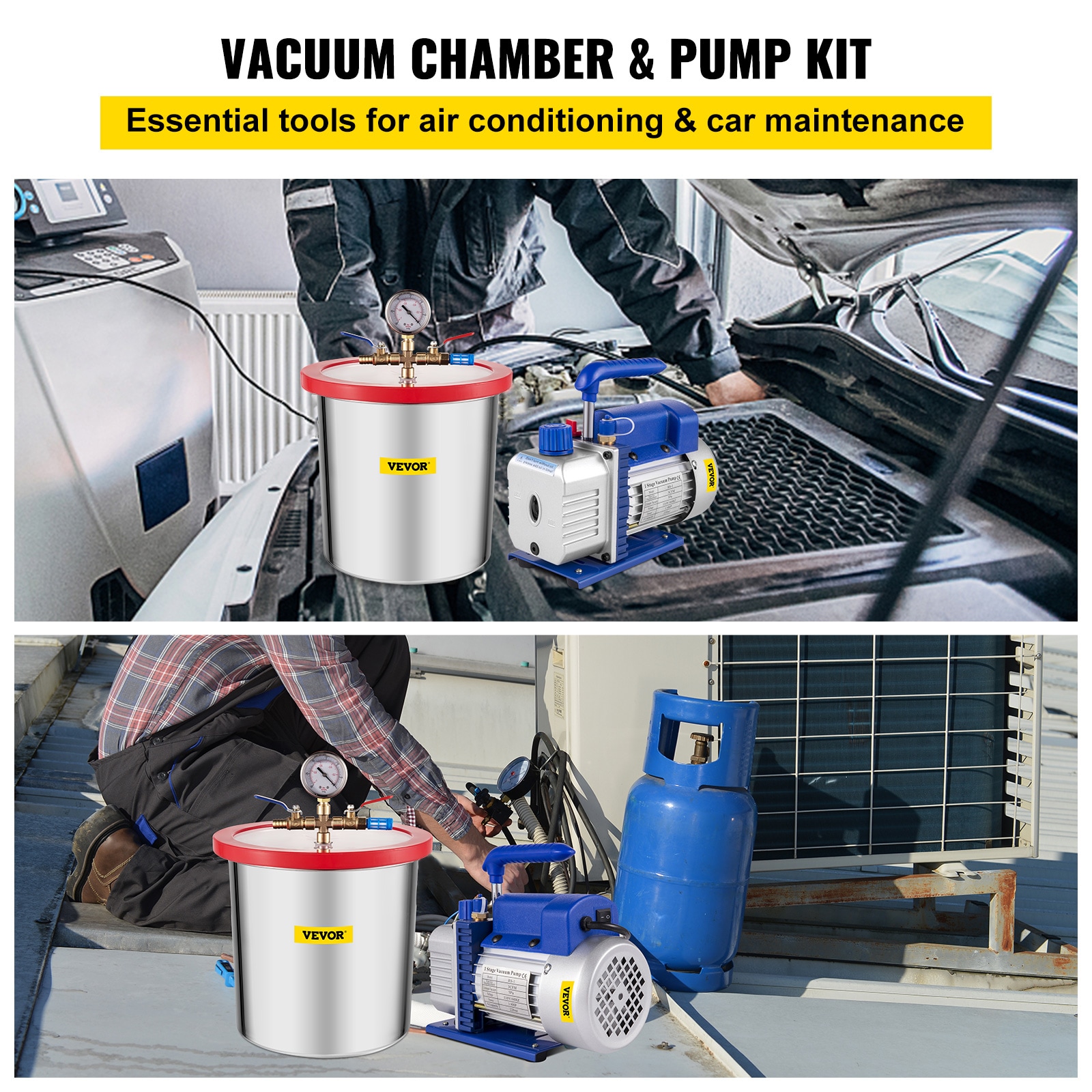

Wide Application: The device comes with one 3 CFM vacuum pump and one 3 gallon vacuum chamber of superior quality; The vacuum chamber kit is suitable for household air conditioning, automobile maintenance, vacuum packaging, refrigerator vacuum and industry; Besides, the kit is also used for defoaming silicone, epoxy, essential oil, polyurethane, etc;

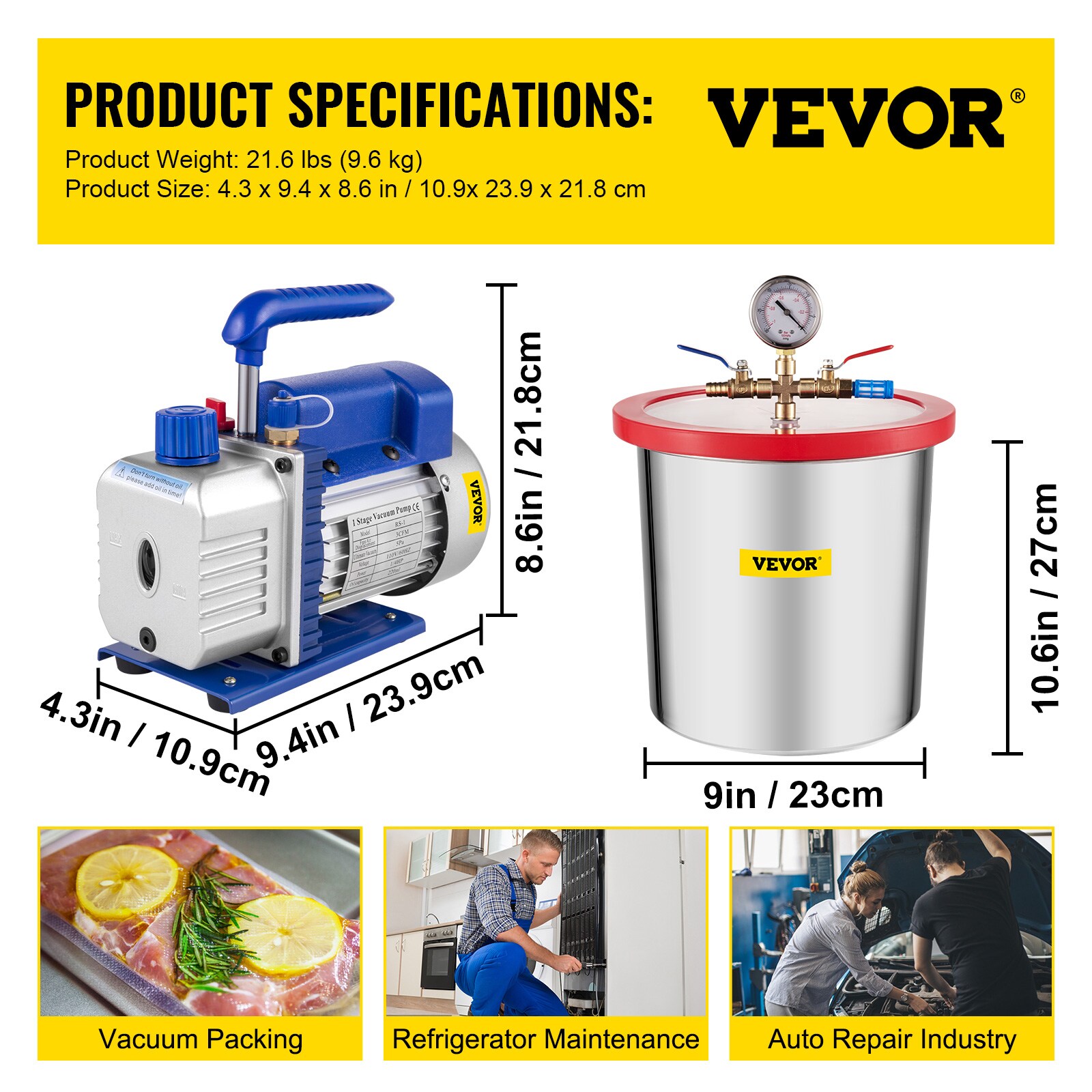

Specification: Voltage: 110V 60HZ; Free Air Displacement: 3CFM; Ultimate Vacuum: 5PA-0.05Mbar; Pump Speed: 1720 RPM; Power (HP): 1/4; Oil Capacity: 200ml; Micro Rating: 75 Microns (10pa); Maximum Rated Vacuum : 29.9inHg @ sea level / 24.82 @ 5000ft; Hose Connector:1/4" SAE w/ 45º Seat; Chamber Max Temp:160ºF; Silicone Pad Size: 4-3/4" x 4-3/4"; Vacuum Chamber: 9" x 10.6" / 23 x 27 cm
